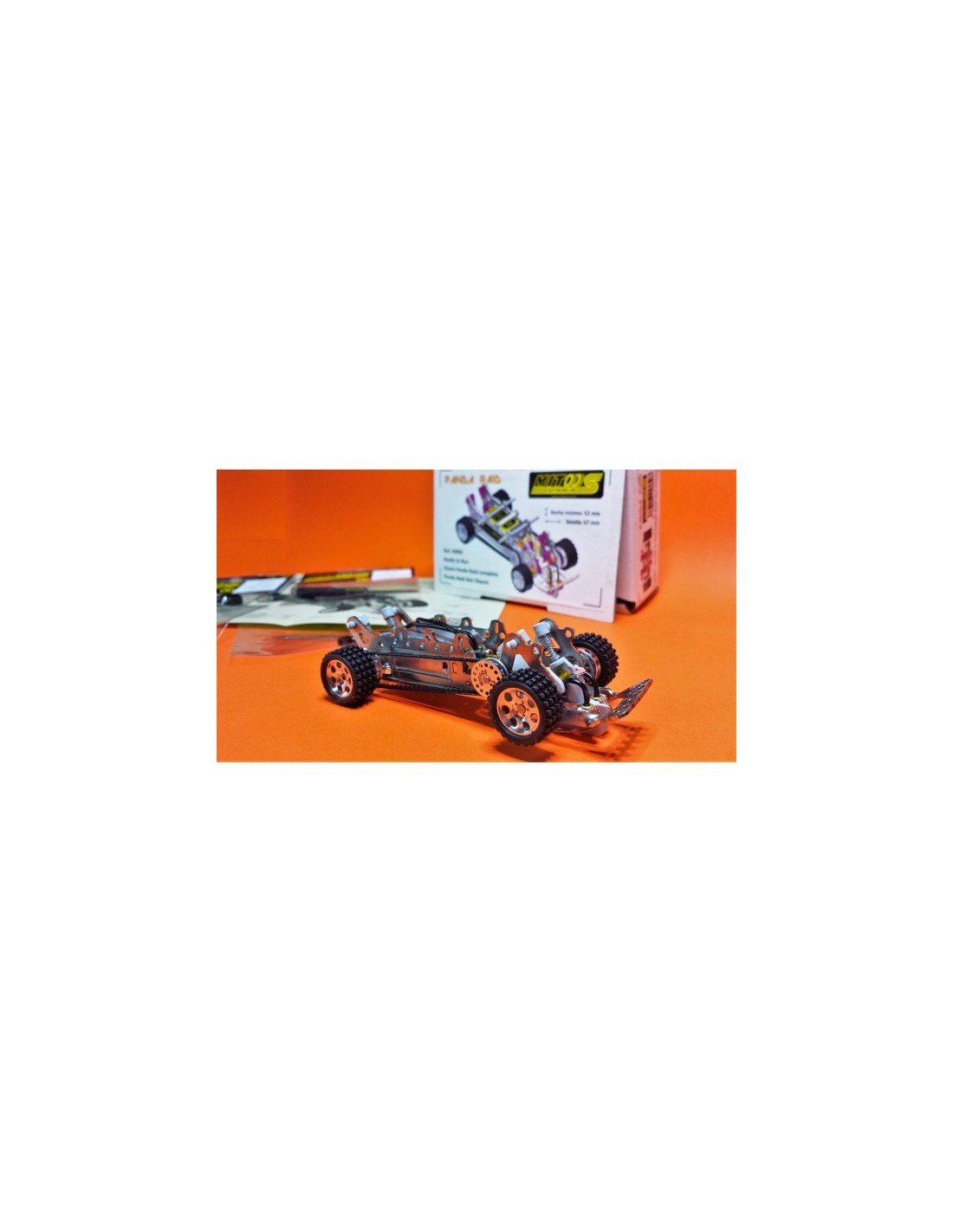

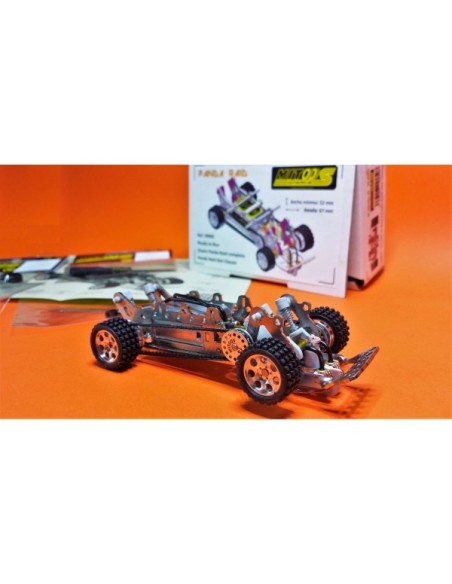

Complete Raid Panda chassis

The narrowest Raid chassis on the market, assembled and ready to race

The Complete Raid Panda CXM905 Chassis is a serious option for those looking to compete in raid or rally mode with a compact, lightweight, and perfectly balanced vehicle from the outset. With a total width of just 52 mm —including wheels— and a weight of 78.1 g, we are looking at one of the narrowest chassis available in the slot market today.

Technical specifications

• Reference: CXM905 – M905 Complete Panda Raid Chassis RTR
• Wheelbase: 67 mm
• Total width (including wheels): 52 mm
• Weight: 78.1 g
• Chassis: Panda SCX, modular stainless steel
• Guide: pivoting with return stop
• Traction: full 4x4 via toothed belts
• Motor cover / body: removable

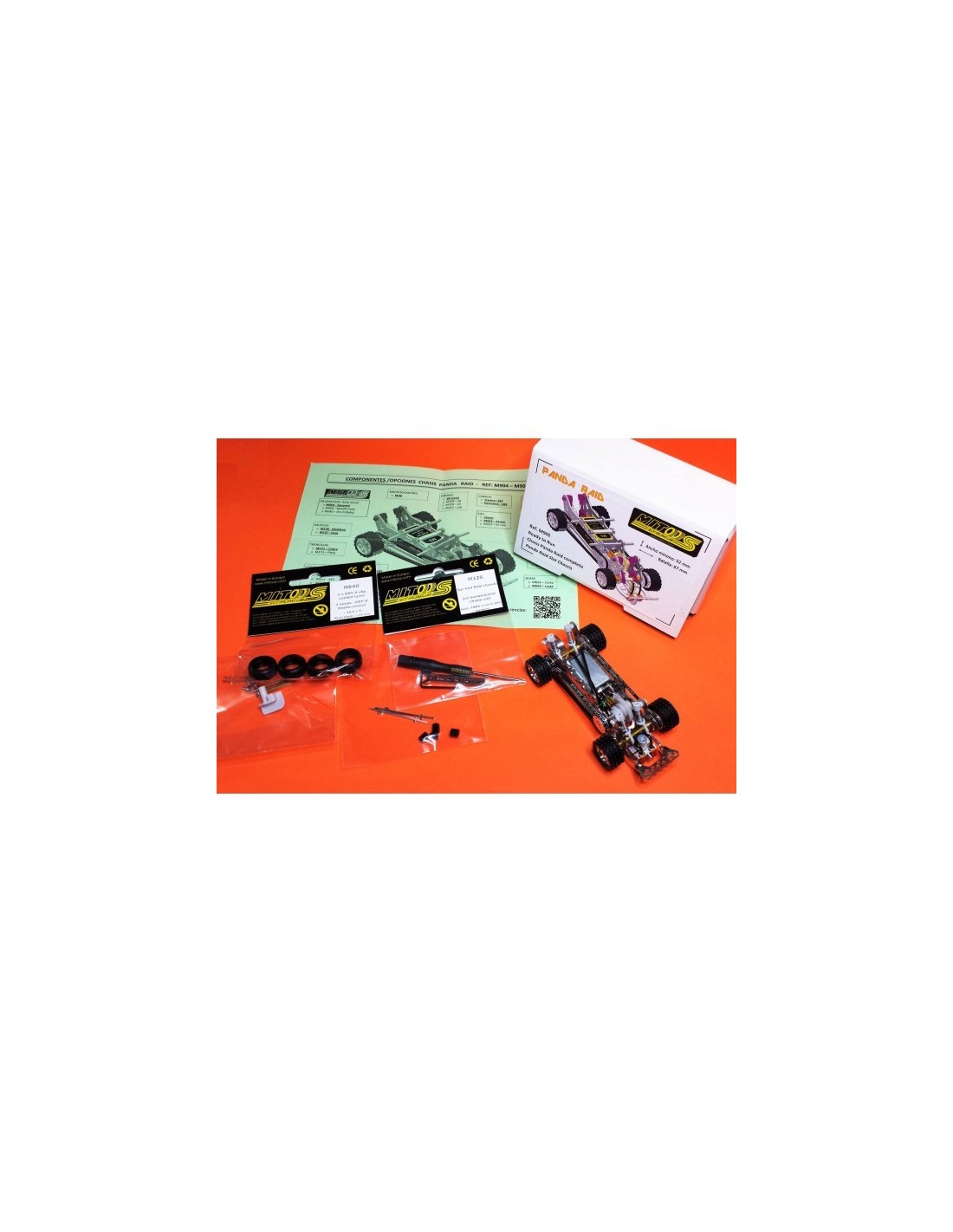

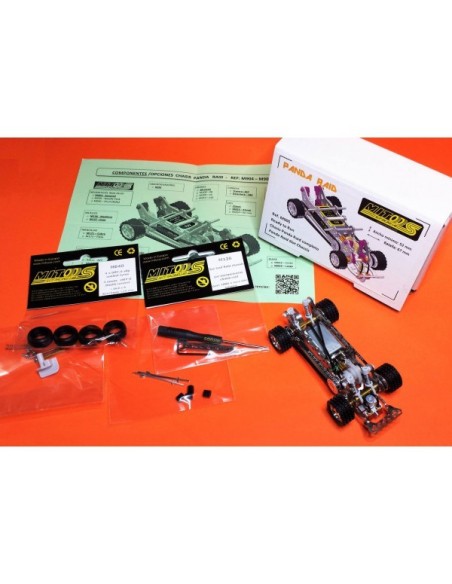

• Includes: body posts and supports, aluminium pulleys, ball bearings on the central axle, tool set, and M040 wheel set for rally configuration

Construction and materials

The chassis is made from modular stainless steel, a choice that combines structural rigidity with corrosion resistance, essential for intensive use. The aluminium pulleys reduce rotating mass and improve acceleration response, while the ball bearings on the central axle ensure smooth and durable transmission.

The pivoting guide with return stop ensures constant contact with the track even on uneven surfaces or with level changes, which is particularly relevant on rally or raid circuits where the track may present greater variability than in a conventional competition layout.

4x4 traction system

The full traction via toothed belts is the distinguishing element of this chassis. It distributes power efficiently among the four axles, providing superior traction on demanding sections and greater stability in fast corners. It is the ideal system to faithfully reproduce the behaviour of a raid vehicle.

Ready to race (RTR)

The CXM905 is delivered fully assembled and ready to race. No additional assembly is required: simply place the body, adjust according to your preferences, and hit the track. The M040 wheel set in rally configuration is included, meaning you have a balanced and coherent setup for this discipline from the very start.

Ideal for…

This chassis is designed for enthusiasts and competitors who practice rally or raid in slot, especially those looking for a compact vehicle with real all-wheel drive and a competitive weight. It is also a very interesting option for those who want to mount a Panda SCX body on a modern and well-resolved technical base.

Frequently asked questions

Is the chassis fully assembled or does it need to be assembled?

The CXM905 is delivered assembled and ready to race (RTR). You only need to install the body and, if desired, adjust some setup parameters according to personal preference or track.

What type of body does this chassis accept?

It is designed for Panda SCX bodies. It includes body posts and supports that facilitate mounting and height adjustment.

What exactly does the M040 wheel set include?

The M040 set is configured for rally use, being the natural complement to this chassis in raid competition. For more details on specific wheel measurements, please refer to the M040 accessory sheet.

Is it compatible with universal or sport track systems?

The pivoting guide with return stop is designed to ensure contact on different surfaces. The exact compatibility with track systems (universal or sport) depends on the installed guide; please consult us if you have questions about your specific track.

Is the motor cover essential for racing?

No. The motor cover is removable and its main function is to protect the mechanical assembly and serve as a base for the body. It can be removed to access the interior during maintenance or setup.

What maintenance do the toothed belts of the 4x4 system require?

The toothed belts should be checked periodically for possible play or wear. Proper tensioning is key to maintaining the efficiency of the all-wheel drive and avoiding power losses.

The Raid Panda CXM905 complete chassis is one of the narrowest slot rally chassis on the market, measuring just 52 mm wide including wheels. Built with a stainless steel modular frame, 4x4 belt-driven traction, aluminium pulleys, ball bearings on the central axle, and a pivoting guide with return stop, this RTR chassis is a strong choice for slot rally and raid competition. Supplied with the M040 rally wheel set, it delivers a ready-to-race package for SCX Panda bodyshells.
