Needle guide holder

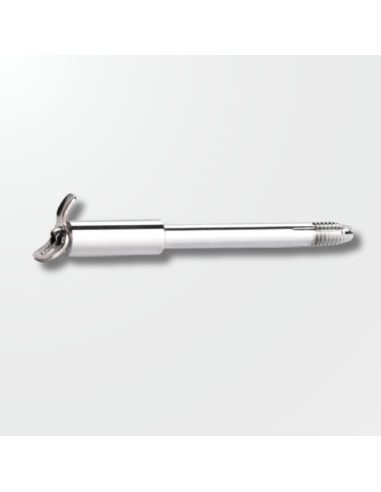

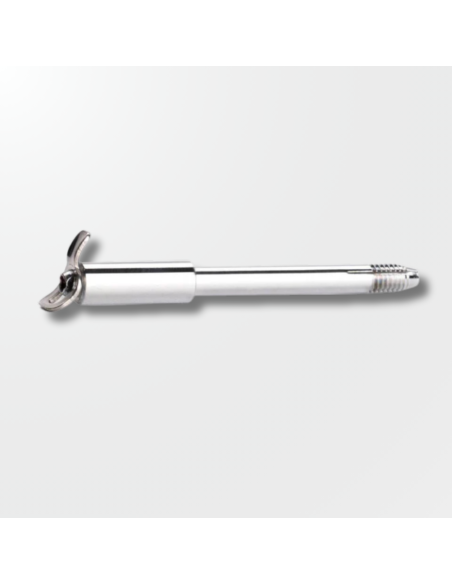

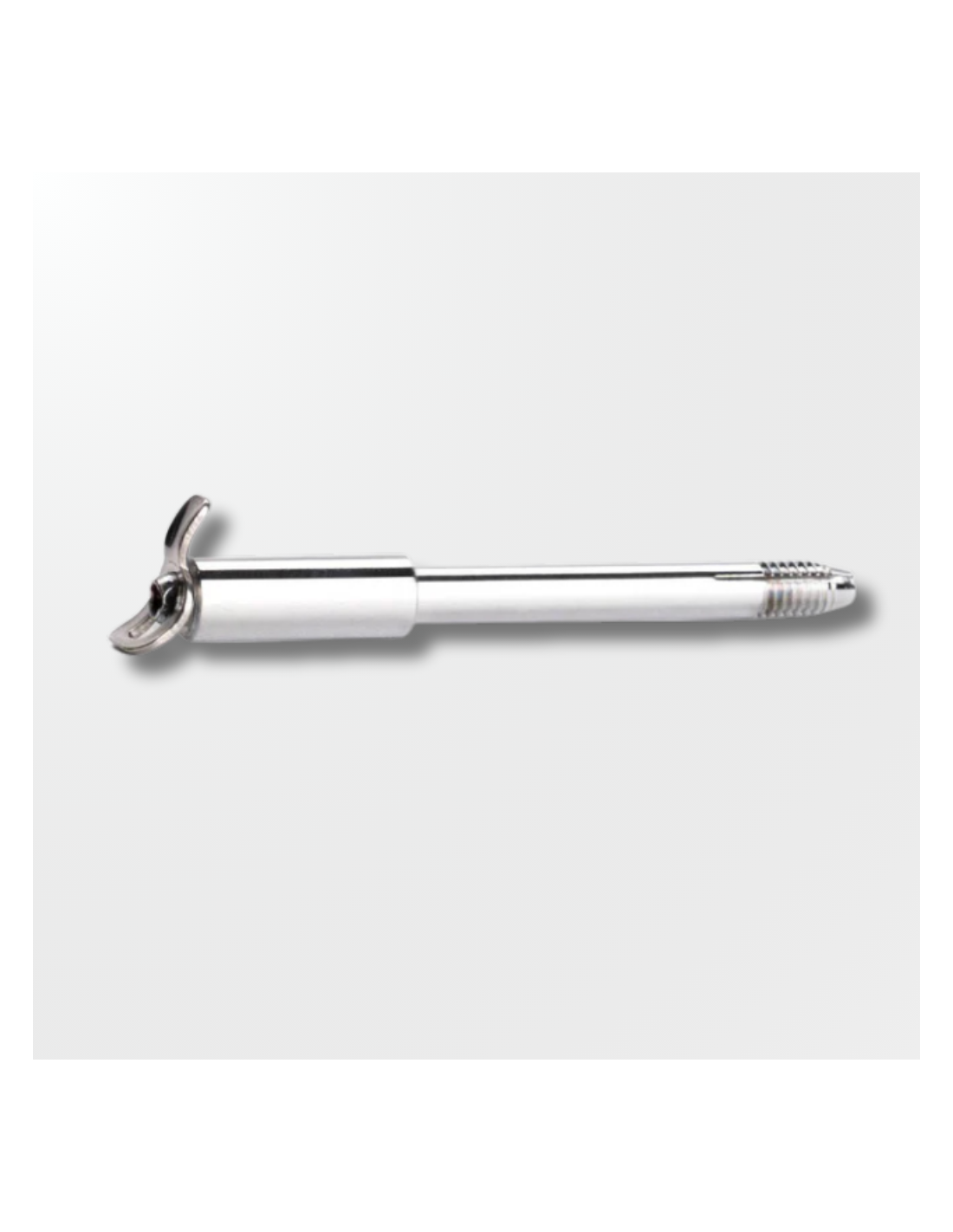

The Gaahleri GA-40591 Needle Chucking Guide: Millimetric Stability on Every Pass

Within an airbrush, the internal components that often go unnoticed are frequently the ones that most influence the final result. The GA-40591 needle chucking guide is one of those elements: a precision metal piece whose mission is to keep the needle perfectly centred and aligned throughout its travel, from the resting point to the maximum flow opening.

Function and Performance

This guide acts as the structural axis of the internal mechanism of the airbrush. By channeling the needle's movement without allowing lateral displacement or vibrations, a more linear and predictable trigger response is achieved. The result is a more uniform spray, with smooth and repeatable flow transitions, which is especially relevant in modelling, decoration, and detail painting tasks.

Manufactured with strict tolerances, it protects the integrity of the needle from premature wear and facilitates its insertion during assembly after each cleaning session. When the needle passage channel is perfectly aligned with the spring and needle holder, internal friction is minimised, and the airbrush mechanism regains its original behaviour.

Compatibilities

The GA-40591 chucking guide is an original Gaahleri replacement compatible with all models of airbrush from the brand. If you use several Gaahleri airbrushes in your workflow, this component allows you to standardise maintenance without the need to manage different parts for each model.

Assembly and Preventive Maintenance

Including this part in the periodic maintenance of the airbrush is a workshop decision, not an emergency one. Replacing the guide before symptoms of play or wear appear—such as irregularities in the spray pattern or noticeable lateral movement in the needle—considerably extends the lifespan of the internal assembly and prevents cascading damage to other parts of the mechanism.

• Remove the needle and needle holder following the usual disassembly procedure for the model.
• Carefully extract the worn guide without forcing the body of the airbrush.
• Insert the new GA-40591 guide ensuring it is properly seated before reintroducing the needle.
• Check the freedom of movement of the trigger before using the airbrush again.

Frequently Asked Questions

Which Gaahleri airbrush models is this guide compatible with?

According to the manufacturer's information, the GA-40591 guide is compatible with all models of airbrush from the Gaahleri brand.

How do I know if my chucking guide needs to be replaced?

The most common symptoms are: noticeable lateral movement in the needle, irregularities in the spray pattern without apparent cause, or greater friction than normal when operating the trigger. If you observe any of these signs, it is time to check or replace the guide.

Is it a routine maintenance part or only changed when it fails?

It is recommended to inspect it during each deep cleaning of the airbrush. Replacing it preventively, before obvious symptoms appear, is the best way to keep the internal mechanism in optimal condition and avoid damage to the needle or other parts.

Do I need special tools for the change?

In general, disassembling and assembling the chucking guide does not require specialised tools, although having a set of airbrush wrenches and a clean working surface facilitates the operation and prevents the loss of small components.

The Gaahleri GA-40591 needle chucking guide is an original replacement part designed to keep the airbrush needle perfectly centred throughout its full range of motion. Compatible with all Gaahleri airbrush models, this precision metal component minimises lateral play, reduces internal friction, and ensures consistent, repeatable spray patterns. An essential part of any preventive airbrush maintenance routine for modellers, miniature painters, and decorators.
