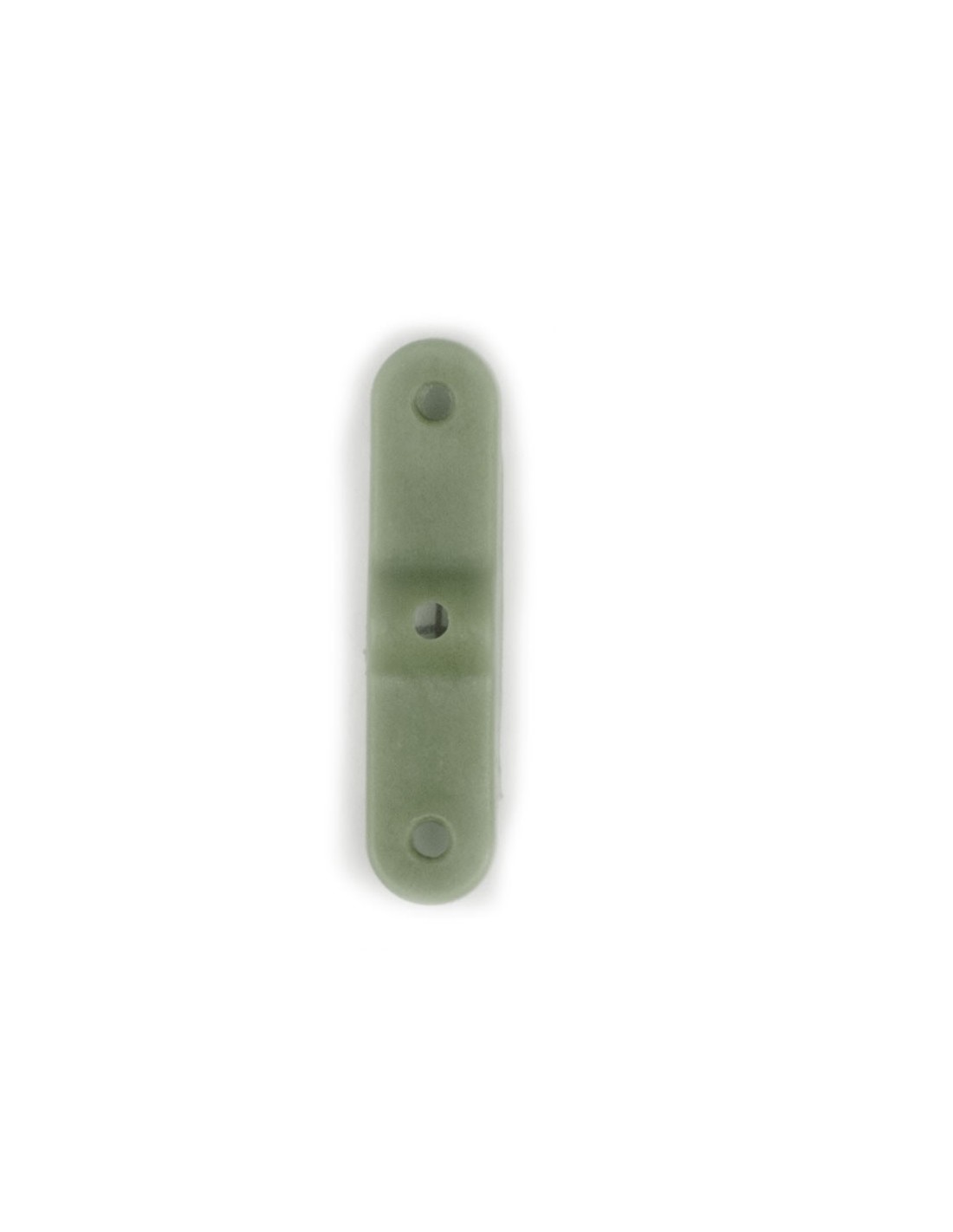

Cradle support to chassis

The cradle-to-chassis mount: a detail that makes a difference in assembly

There are parts that go unnoticed until they are missing or do not fit properly. The AV20552 cradle-to-chassis mount is one of them. Its function is seemingly simple: to connect the cradle —the assembly that houses the motor and rear axle— to the car chassis. However, an incorrect fastening at this point directly translates into loss of performance, vibrations, and uneven wear. With this mount, the assembly remains firm and the geometry of the drivetrain is maintained where it should be.

Function and performance

The cradle-to-chassis mount acts as a structural link between two of the most important elements of the slot car. Its correct installation ensures that the cradle does not exhibit unwanted movement relative to the chassis during operation, resulting in cleaner power transmission and more predictable behaviour on track.

Any play or misalignment at this point affects the crown gear, the pinion, the axle bearings, and ultimately, lap times. Therefore, when preparing a car for club competition or simply wanting everything to be in order, checking and replacing this mount if it is worn is one of those preparation gestures that the most experienced enthusiasts do not overlook.

Assembly and preparation

The assembly of this mount does not require special tools, but it does require attention to detail:

• Ensure that the contact surfaces between the cradle and chassis are clean and free of adhesive residue or dirt.
• Check the alignment of the rear axle once the mount is installed: any minimal deviation is amplified at competition speed.
• If the chassis has controlled flexibility, ensure that the mount does not restrict it more than intended by the original design.

Compatibility

This mount corresponds to reference AV20552. To confirm the exact compatibility with your model or chassis, we recommend consulting the technical documentation of your vehicle or contacting our team. We do not assume unverified compatibilities: in the world of slot, a millimetre matters.

Frequently Asked Questions

When should I replace the cradle-to-chassis mount?

When you detect play between the cradle and the chassis, unusual vibration in the rear end, or asymmetric wear on the crown gear or pinion. It is also advisable to check it after hard falls or accidents on track that may have affected the structure of the car.

Does this mount affect cornering behaviour?

Indirectly, yes. A well-secured cradle ensures that the rear axle maintains its correct position and angle, which influences traction and the car's response through corners. A loose or worn mount can cause understeer or erratic behaviour.

Can I use adhesive to reinforce the fastening?

It depends on the chassis design. In some cases, a drop of low-strength adhesive is used to prevent the mount from loosening due to vibration, but in chassis that require frequent disassembly, it is preferable not to use it. Consult the specific instructions for your model.

Is this type of part easy to lose during disassembly?

It is one of the parts most susceptible to being misplaced precisely because of its small size. It is good practice to have a spare unit available in the workshop, especially if you perform maintenance or tuning frequently.

The AV20552 cradle-to-chassis mount is a small but essential slot car component that ensures proper alignment between the motor cradle and the chassis. Correct installation prevents unwanted movement, reduces vibration, and preserves drivetrain geometry for consistent lap times. A must-have spare part for any serious slot car enthusiast or club racer looking to keep their car in top mechanical condition.

Information not found

It has not been possible to reliably verify the manufacturer brand or the specific models or chassis with which reference AV20552 is compatible. If you need compatibility confirmation before placing your order, we recommend consulting with our technical team at Ministry of Hobby.
