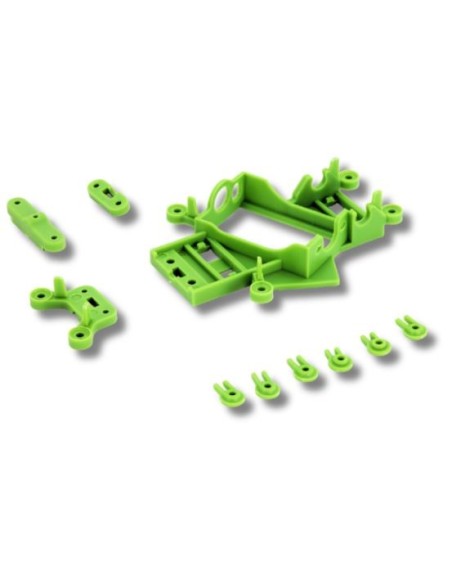

Motor mount offset angle 0.75mm

Fine Geometry Adjustment with the 0.75 mm Offset Anglewinder Mount from Avant Slot

In the preparation of a 1/32 scale competition slot car, few details make as much difference as the correct alignment of the motor relative to the rear axle. This motor mount from Avant Slot, with an anglewinder configuration and an offset of 0.75 mm, is designed precisely for that: to provide the preparer with the millimetric control needed to extract the maximum from each setup.

Function and Performance

The 0.75 mm offset in an anglewinder mount allows for a slight displacement of the motor position relative to the central axis of the chassis. This small adjustment has a direct impact on the transmission, as it modifies the working angle of the pinion on the crown gear and can influence the smoothness of the engagement, the efficiency of the transmission, and the overall behaviour of the drivetrain.

In the anglewinder configuration, the motor is positioned at an angle relative to the rear axle, allowing for a favourable weight distribution within the chassis and a compact integration of the power unit. The mount is the piece that secures and orients that motor, making its dimensional precision crucial.

Compatibility and Assembly

This mount is designed for use in 1/32 scale slot car chassis with an anglewinder configuration. Avant Slot is a recognised brand in the sector for the precision of its spare parts and for the attention to detail in each component of its catalogue. As with any competition mount, it is advisable to verify compatibility with the specific chassis and motor to be installed before proceeding with assembly.

• Configuration: anglewinder
• Offset: 0.75 mm
• Scale: 1/32
• Brand: Avant Slot (ref. AV20575c)

Assembly and Preparation

During assembly, it is advisable to check the lateral play of the pinion on the crown gear once the mount is secured. A well-chosen offset facilitates this adjustment, but it should always be validated physically on the workbench. Use the appropriate tools to tighten the securing screws without forcing the mount, as slight deformation can negate the benefits of the offset.

If you are building a car from scratch or replacing a worn mount, this is also the time to check the condition of the rear axle and bearings to ensure that the entire drivetrain operates in optimal conditions.

Common Mistakes

The most common mistake when working with offset mounts is confusing the displacement value with the motor angle. The 0.75 mm offset refers to the lateral displacement of the assembly, not the tilt angle of the mount relative to the axle. Choosing the correct offset depends on the chassis, motor, and crown gear used, so it is advisable to consult the specifications from the chassis manufacturer or check with other preparers in your club before deciding.

Frequently Asked Questions

What does the offset angle mean in an anglewinder mount?

The offset indicates the lateral displacement of the mount relative to the central position of the chassis. In this case, 0.75 mm is a small value but has a real effect on the engagement of the pinion and crown gear, influencing the smoothness of the transmission and the efficiency of the drivetrain.

Is it compatible with any 1/32 anglewinder motor?

The mount is designed for anglewinder setups in 1/32 scale, but exact compatibility depends on the specific chassis and motor. We recommend checking the dimensions of the motor housing before proceeding with the assembly.

When is it advisable to use a 0.75 mm offset compared to other values?

The choice of offset depends on the geometry of the chassis and the diameter of the pinion and crown gear to be used. A 0.75 mm offset is an intermediate value, suitable for fine-tuning gear engagement in competition setups where precision is sought without drastically altering the motor position.

Can the offset affect the dynamic behaviour of the car?

Indirectly, yes. A more precise engagement reduces losses due to friction and vibration in the transmission, which can translate into a smoother and more linear response from the motor. However, the impact on handling is subtle and depends on the overall assembly.

Is it a part that wears out with use?

Like any component of the drivetrain, the mount can accumulate wear if subjected to high stresses over many sessions. Periodically checking its condition and the tightness of the securing screws is good preventive maintenance practice.

The Avant Slot AV20575c anglewinder motor mount with 0.75 mm offset is a precision replacement part for 1/32 scale slot car builds. Designed for anglewinder motor configurations, it allows fine-tuning of the motor position relative to the rear axle, improving pinion-to-crown mesh and overall drivetrain efficiency. A key component for competitive slot car preparation and chassis setup.
