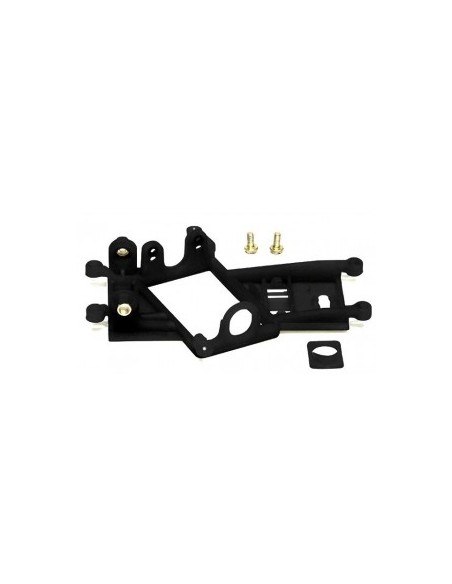

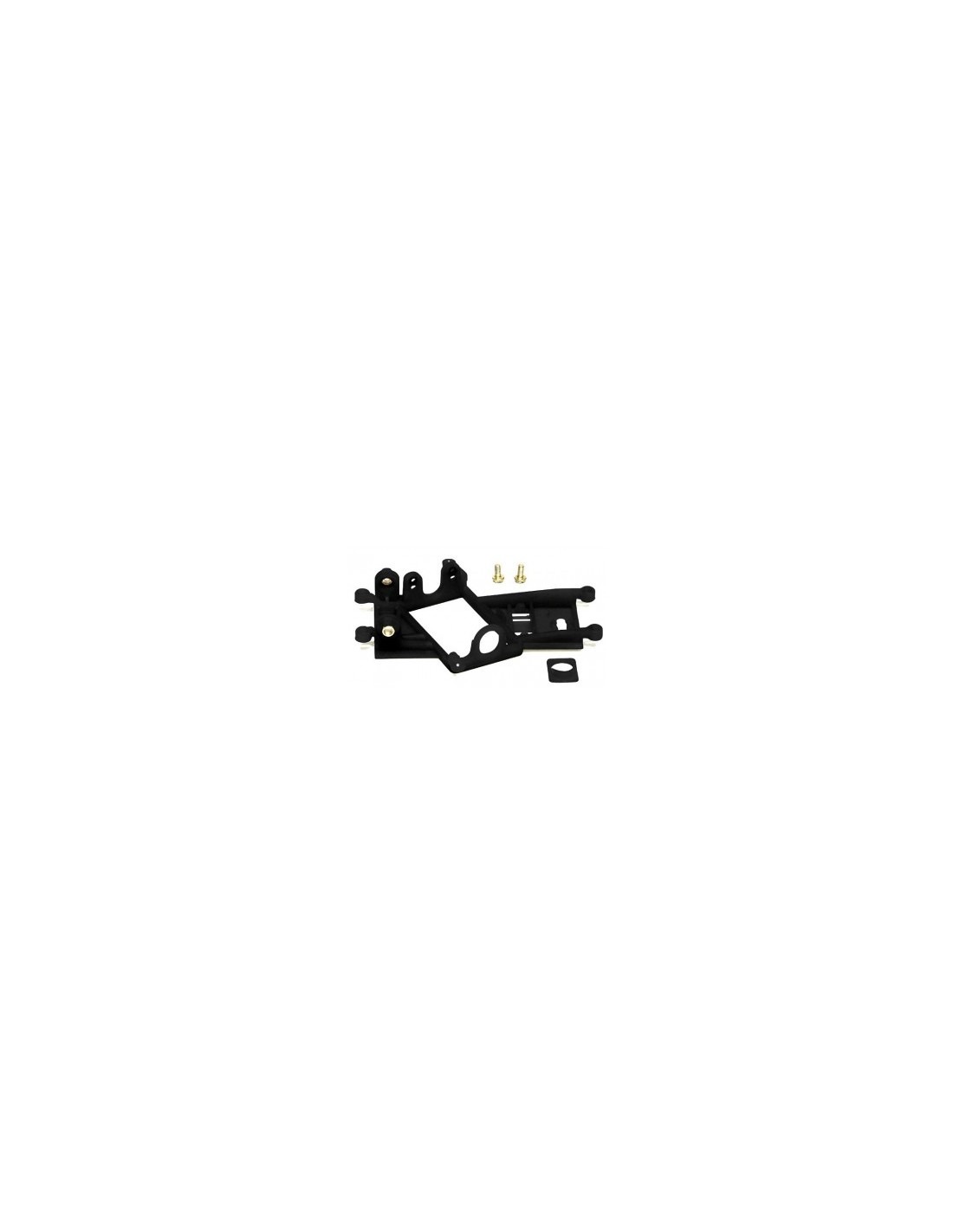

EVO6 OFFSET 0.0mm angled bracket

The Slot.it EVO6 OFFSET 0.0 mm motor mount: precision anglewinder for long-can motors

When preparing a car for competition, every component of the drivetrain matters. The EVO6 OFFSET 0.0 mm (ref. SICH76) angle mount from Slot.it is a preparation piece designed for those who want to maximise the anglewinder configuration with long-can motors, keeping the motor shaft perfectly centred with respect to the rear axle, without any lateral displacement.

Main features

• Anglewinder configuration: the mount positions the motor at an angle to the rear axle, a layout that combines a low profile with efficient power transfer.
• Offset 0.0 mm: the motor is symmetrically aligned, with no lateral displacement. Ideal for chassis and transmissions that do not require positional compensation.
• Compatible with long-can motors: specifically designed to accommodate long-can format motors, common in competition preparations.
• Slot.it manufacturing: the Italian brand is an undisputed reference in precision components for competitive slot racing, with tight tolerances and top-quality materials.

What is offset in a motor mount and why does it matter?

The offset indicates the lateral displacement of the motor relative to the centre of the rear axle. An offset of 0.0 mm means that the motor pinion is perfectly aligned with the crown gear. This configuration is the starting point for many preparers: from here, it is assessed whether to introduce a positive or negative offset depending on the chassis, transmission, and track conditions.

Choosing the correct offset directly influences gear play, pinion and crown gear wear, and transmission smoothness. Starting from 0.0 mm is the neutral reference and, in many setups, the definitive solution.

Recommended applications

This mount fits into anglewinder preparations where long-can motors are used and a centred transmission is sought. It is the usual choice in competition Sport track chassis (Slot.it, Scaleauto) when the chassis design does not require lateral compensation. It is particularly useful in clubs and championships where regulations limit modifications and drivetrain reliability is critical.

Assembly and preparation

Mounting the motor mount requires verifying the alignment of the pinion with the crown gear before permanently securing it. With an offset of 0.0 mm, the adjustment of the distance between the pinion and crown gear centres becomes the key parameter to control. It is recommended to check the gear play by manually rotating the shaft before putting the car on the track.

Frequently asked questions

Which long-can motors is this mount compatible with?

It is designed for long-can format motors. To know the exact compatibility with specific motor models, consult the technical documentation from Slot.it or contact our team.

What is the difference between anglewinder, sidewinder, and inline?

In the sidewinder configuration, the motor is parallel to the rear axle (transverse). In inline, the motor is perpendicular to the axle and aligned with the car, lowering the centre of gravity. In anglewinder, the motor is placed at an angle to the rear axle, combining a relatively low profile with direct and efficient transmission.

Can I use this mount on UNIVERSAL track (Scalextric, Ninco)?

The mount is a component of the chassis and transmission, not of the track system. Its use depends on the chassis it is mounted on, not the type of track. Verify compatibility with your chassis before placing an order.

What offset should I choose for my setup?

The 0.0 mm offset is the neutral reference: the motor is centred relative to the rear axle. If your chassis or transmission requires compensating for a deviation, Slot.it offers mounts with other offset values. If in doubt, start with 0.0 mm and measure the gear play once assembled.

Is it a specific competition part or can it also be used for recreational purposes?

Although it is a piece aimed at technical preparation, any enthusiast working on their anglewinder chassis with long-can motors can benefit from it. It is not exclusive to competition, although it is in that context where its precision is most appreciated.

The Slot.it SICH76 EVO6 anglewinder motor mount with 0.0 mm offset is a precision component for long-can motor installations in 1/32 slot car competition builds. Designed for Sport track systems, it ensures perfect pinion-to-crown alignment with zero lateral displacement, making it a reliable choice for club racing and high-performance slot car setups. Compatible with Slot.it chassis and anglewinder configurations.
