Cut copper braid cb race

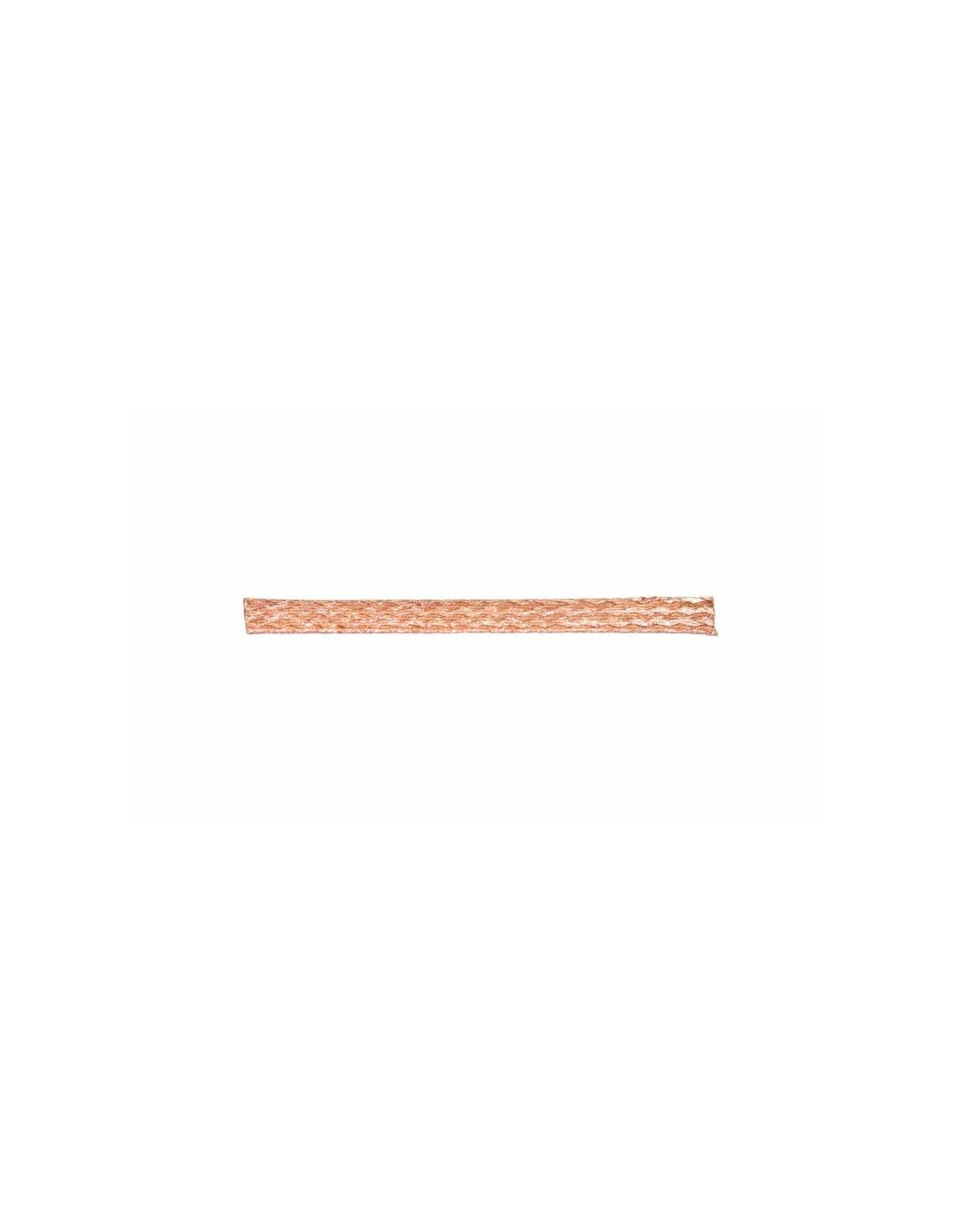

CB Race Cut Copper Braid: Precise Electrical Contact for Your Slot Cars

Braids are one of those components that go unnoticed until they fail. A damaged braid —oxidised, deformed, or made of unsuitable material— causes current loss, irregular response, and, in competition, inconsistent lap times that have nothing to do with the driver. This CB Race cut copper braid, with reference SP104136, offers a clean and direct solution to the problem.

Technical Features

• Material: copper
• Thickness: 0.25 mm
• Width: 3.75 mm
• Format: cut (ready to install)

Copper is the reference material for slot braids due to its excellent electrical conductivity. Compared to other materials, it guarantees more efficient current transmission between the rail and the motor, with lower resistance and heating.

Function and Performance

Braids act as a conductive bridge between the track rails and the car's motor. A thickness of 0.25 mm provides the necessary flexibility for the guide to work smoothly, without stiffness that hinders rail tracking, while also offering the contact consistency required for both recreational use and club competition.

The width of 3.75 mm is the most widely used standard in the slot world, compatible with the vast majority of guides on the market. The cut format saves preparation time: no measuring or cutting is needed, just install.

Installation and Preparation

The process of replacing braids is straightforward but should be done carefully to avoid bending or damaging the material:

1. Remove the guide from the car and extract the worn braids.
2. Clean the guide slots to ensure good contact.
3. Insert the new copper braids, ensuring they are well seated and in contact with the guide pins.
4. Check for any deformations before reassembling the guide in the car.

If the track is well maintained and clean, the lifespan of good copper braids is considerably extended. Nevertheless, in competition, it is common to check them between sessions.

Common Mistakes

• Not cleaning the rail before installing braids: dust and dirt accumulated on the rails prematurely wear out the copper.
• Forcing the bend: copper is malleable, but if bent at sharp angles, it can break or lose electrical continuity.
• Installing braids with incorrect width: a braid that is too wide or too narrow does not make proper contact with the rails and causes intermittent current failures.

Frequently Asked Questions

Is this braid compatible with any slot car?

The width of 3.75 mm is the most common format in the slot market, compatible with most standard guides. It is advisable to check the dimensions of your guide's slot before installation.

When should I change the braids on my car?

When you notice power loss, irregular throttle response, or current failures that are not resolved by cleaning the rails. In competition, regular checks —even preventive ones— help maintain consistent lap times.

Does the "cut" format mean it comes ready to install?

Yes. The cut braids already have the appropriate length for direct installation, without the need for additional measuring or cutting.

Is there a performance difference between copper braids and those made from other materials?

Copper offers superior electrical conductivity compared to materials like stainless steel or cheaper alloys, resulting in cleaner current transmission and less energy loss between the rail and the motor.

How often should I check the braids in recreational use?

In recreational use, a check every few sessions is usually sufficient. If the car starts to behave irregularly without apparent cause, the braids are the first point to check.

The CB Race cut copper braid (ref. SP104136) is a high-conductivity slot car braid designed for direct installation, measuring 0.25 mm thick and 3.75 mm wide. Ideal for slot car racing, club competition, and hobby preparation, this copper braid ensures clean current transfer between the track rail and the motor. Compatible with most standard slot car guide blades, it is a reliable upgrade for Scalextric, Ninco, Scaleauto, Slot.it and similar systems. Perfect for slot car tuning, guide maintenance, and consistent lap time performance.
