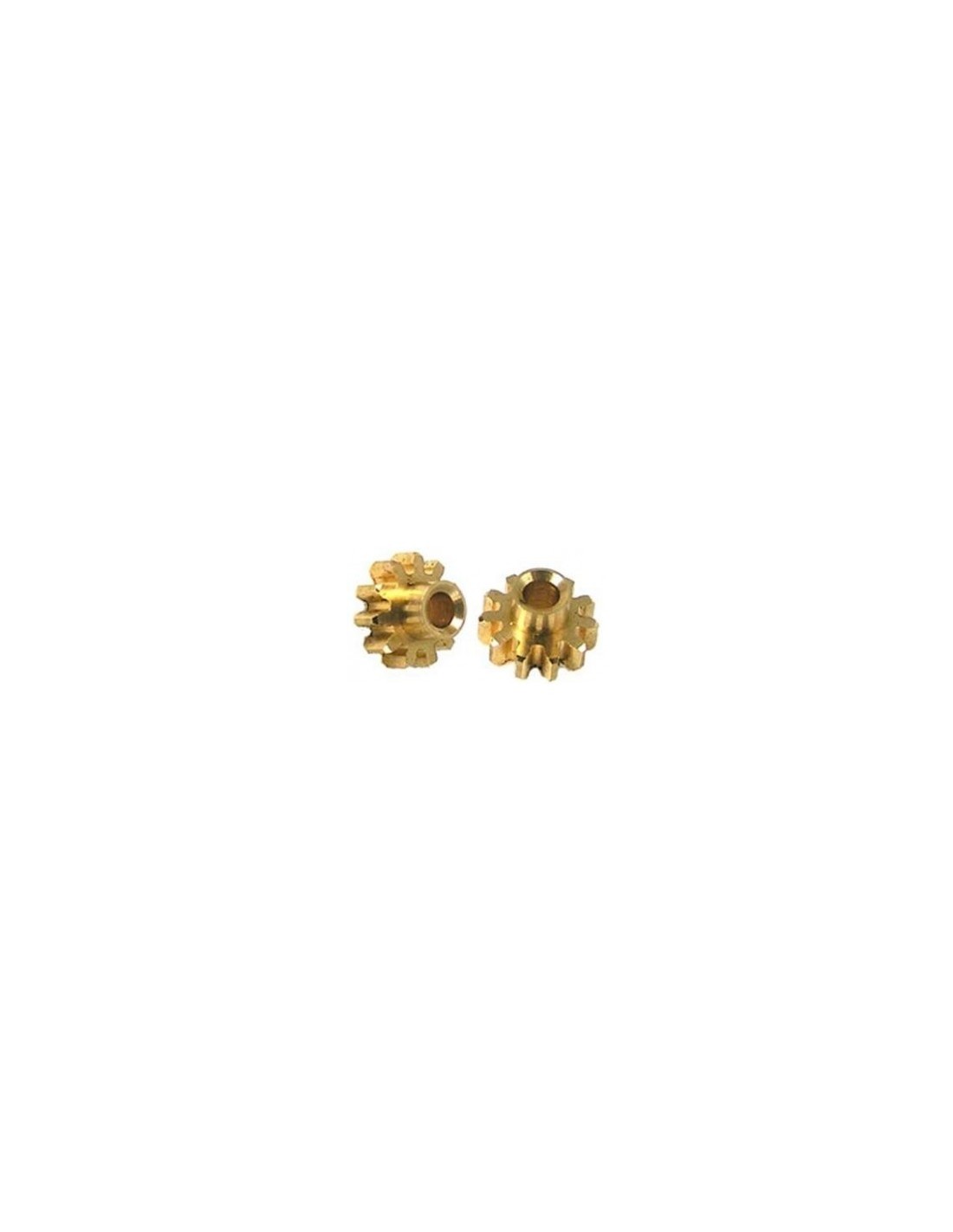

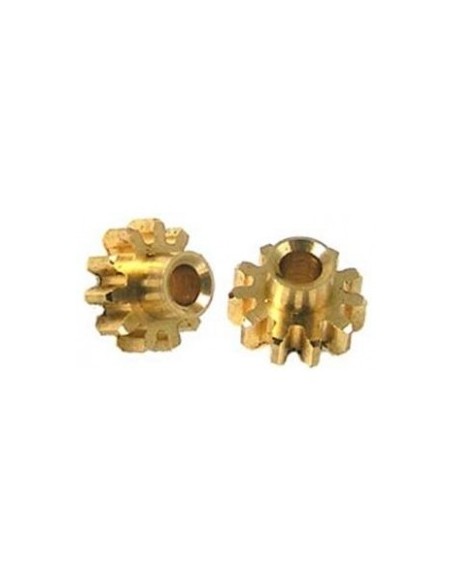

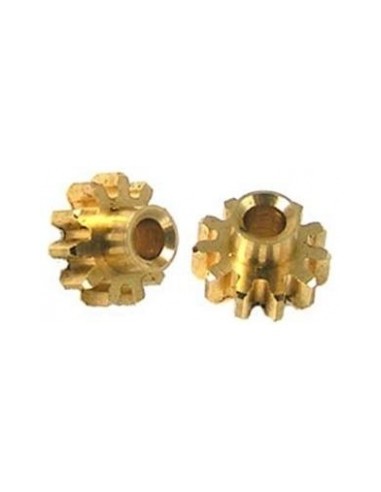

PINIONS 10 INLINE Extralight

NSR 10 Tooth Inline Extralight Pinions: Less Mass, More Response on Every Meter of Track

When tuning a slot car for competition, every gram in the rotating parts counts. The NSR 10 Tooth Inline Extralight Pinions (NSR6810) are born precisely from that philosophy: to minimize inertia in the drivetrain of inline configurations, where the motor works parallel to the rear axle — that is, perpendicular to the axle, in a longitudinal line with the chassis — to lower the centre of gravity of the assembly.

Function and Performance

The pinion is the first component of the drivetrain that receives torque from the motor. In an inline configuration, the motor shaft is aligned longitudinally with the rear axle of the car, which means that the pinion transmits power directly to the crown gear without sharp directional changes. Here, the weight of the pinion directly affects acceleration: a lighter pinion reduces rotational inertia, resulting in a livelier response when exiting corners and cleaner deceleration when lifting off the throttle.

The Extralight version from NSR takes this idea to the next level. The treatment or geometry that reduces its mass compared to the standard pinions from the same brand allows you to exploit that advantage without sacrificing the mechanical integrity necessary to withstand club sessions or championships.

Compatibility

These pinions are designed for inline motors from the NSR range. With 10 teeth, they offer a high gear ratio: in combination with crowns of a higher tooth count, long ratios are achieved, ideal for fast circuits with long straights where the motor can develop high RPM. If the circuit is more technical, it is advisable to consider switching to a crown that balances the ratio.

Always check compatibility with the motor shaft diameter and the crown module you are using on your chassis before installing any pinion.

Installation and Preparation

The installation of an inline pinion follows the usual NSR preparation steps:

• Ensure that the pinion is well seated on the motor shaft, with no lateral play.
• Check that the engagement with the crown gear is correct: neither too tight (causing friction and premature wear) nor too loose (producing noise and loss of efficiency).
• A point of specific grease for slot transmissions at the pinion-crown contact improves durability without adding noticeable resistance.
• Check the alignment of the motor in the chassis before closing: a misaligned motor accelerates pinion wear.

Common Mistakes

• Confusing inline configuration with sidewinder or anglewinder. In inline, the motor is longitudinal to the chassis; in sidewinder, it is transverse; in anglewinder, at an angle. Always use the pinion corresponding to the actual configuration of your setup.
• Choosing the number of teeth solely for top speed. A 10-tooth pinion provides a long ratio, perfect for fast circuits, but may penalize on circuits with many tight corners where more torque is needed at low speed.
• Not checking the crown module. Pinion and crown must share the same module for proper engagement.

Frequently Asked Questions

How many units are included in the NSR6810 blister?

The information on units per blister should be checked on the manufacturer's official data sheet or in the product description from Ministry of Hobby, as it may vary by batch. We have not been able to confirm this with total certainty for this specific item.

What is the difference between a standard NSR pinion and an Extralight pinion?

The Extralight version has less mass than the equivalent standard pinion in terms of tooth count. This reduces rotational inertia, improving acceleration and braking response, especially noticeable in technical sections and corner exits.

Is it compatible with any NSR inline motor?

Generally yes, as long as the motor shaft diameter matches the pinion hole. Verify this before installation, as NSR has different shafts depending on the motor model.

What gear ratio do I get with a 10-tooth pinion?

The final gear ratio depends on the number of teeth of the crown you use. For example, with a 30-tooth crown, you would achieve a 3:1 ratio. The higher the ratio, the more top speed but less torque at the start. Adjust according to the circuit profile.

Can I use these pinions in a sidewinder or anglewinder configuration?

These pinions are designed for inline setups. Although technically the module may match, the geometry of the setup and the mechanical demands of each configuration are different. NSR has specific references for sidewinder and anglewinder; use them to ensure optimal performance.

How often should pinions be replaced?

It depends on the volume of use and the state of the engagement. In club racing cars, a visual inspection after each session and replacement at any sign of wear on the tooth flanks is the usual practice to maintain transmission efficiency.

NSR Extralight inline pinions 10 teeth (NSR6810) are precision-engineered slot car components designed to minimize rotational inertia in inline motor configurations. Compatible with NSR inline motors, these ultralight pinions deliver sharper acceleration response and cleaner engine braking, making them a go-to upgrade for club racers and performance-oriented hobbyists looking to fine-tune their drivetrain on technical and high-speed circuits alike.

Unconfirmed Information

It has not been possible to verify with total certainty the exact number of units included per blister in the NSR6810 reference, nor the specific material or manufacturing process that gives the Extralight characteristic to this pinion. If you need this data, we recommend consulting it directly with our team at Ministry of Hobby.
