Lite-Evo 100% electronic controller

The Sloting Plus Lite-Evo: real electronic performance for those starting to race seriously

Sloting Plus designed the Lite-Evo as the natural evolution of the first Lite model, with a clear goal: to provide any driver new to slot racing with a 100% electronic controller that does not sacrifice performance for accessibility. Whether at home or in the club, the Lite-Evo supports drivers from their first laps until they decide to upgrade to competition controllers.

Main technical features

• 100% electronic control with built-in microcontroller.
• Acceleration and braking managed via PWM signals and transistors + MOSFET.

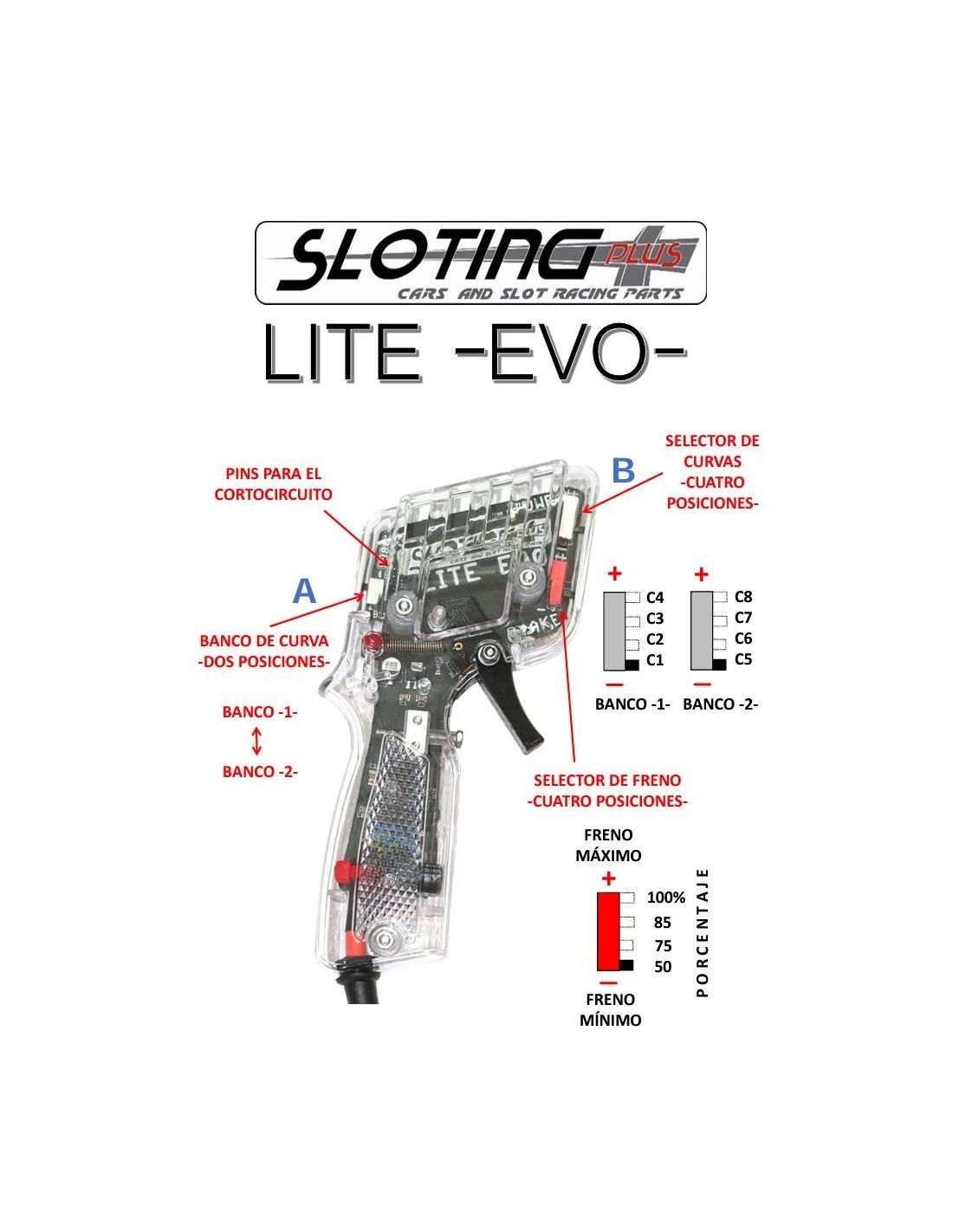

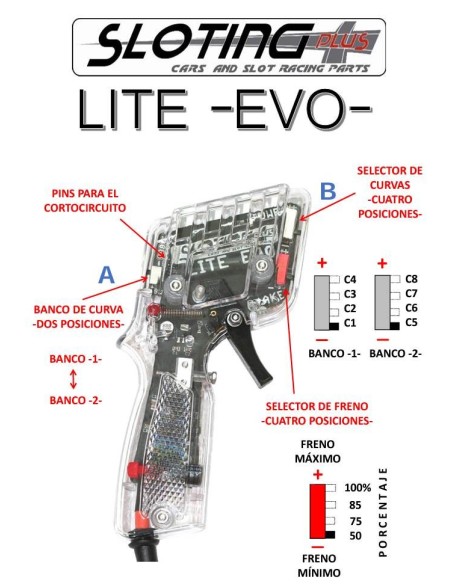

• 8 power curves available: 4 in bank 1 and 4 in bank 2.
• 4 braking levels: 100%, 85%, 75% and 50%.
• Operating range of 8 V to 22 V: compatible with most club setups and home tracks.
• Compatible with positive or negative connection tracks.
• Protection against short circuits, overheating, overvoltage, and reverse polarity due to incorrect banana plug connections.
• Green LED operation indicator.
• Practically non-existent power consumption.

Ergonomic design and construction

• Ergonomic Parma-style casing, also suitable for smaller hands.
• Magnetic trigger that eliminates mechanical friction and requires minimal maintenance.
• Trigger made from 3D plastic material for one finger.
• All adjustments accessible from the outside without protruding selectors, preventing breakage and accidental manipulation.

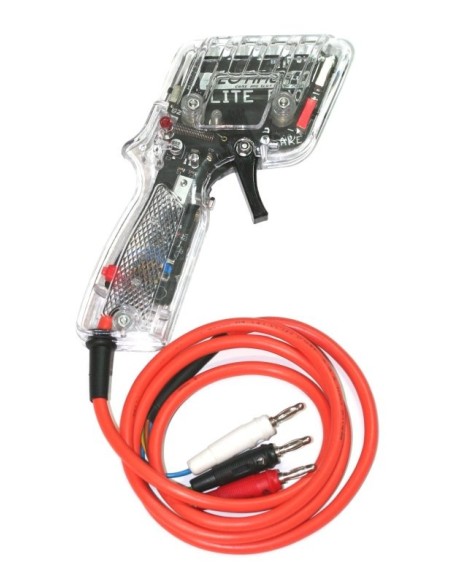

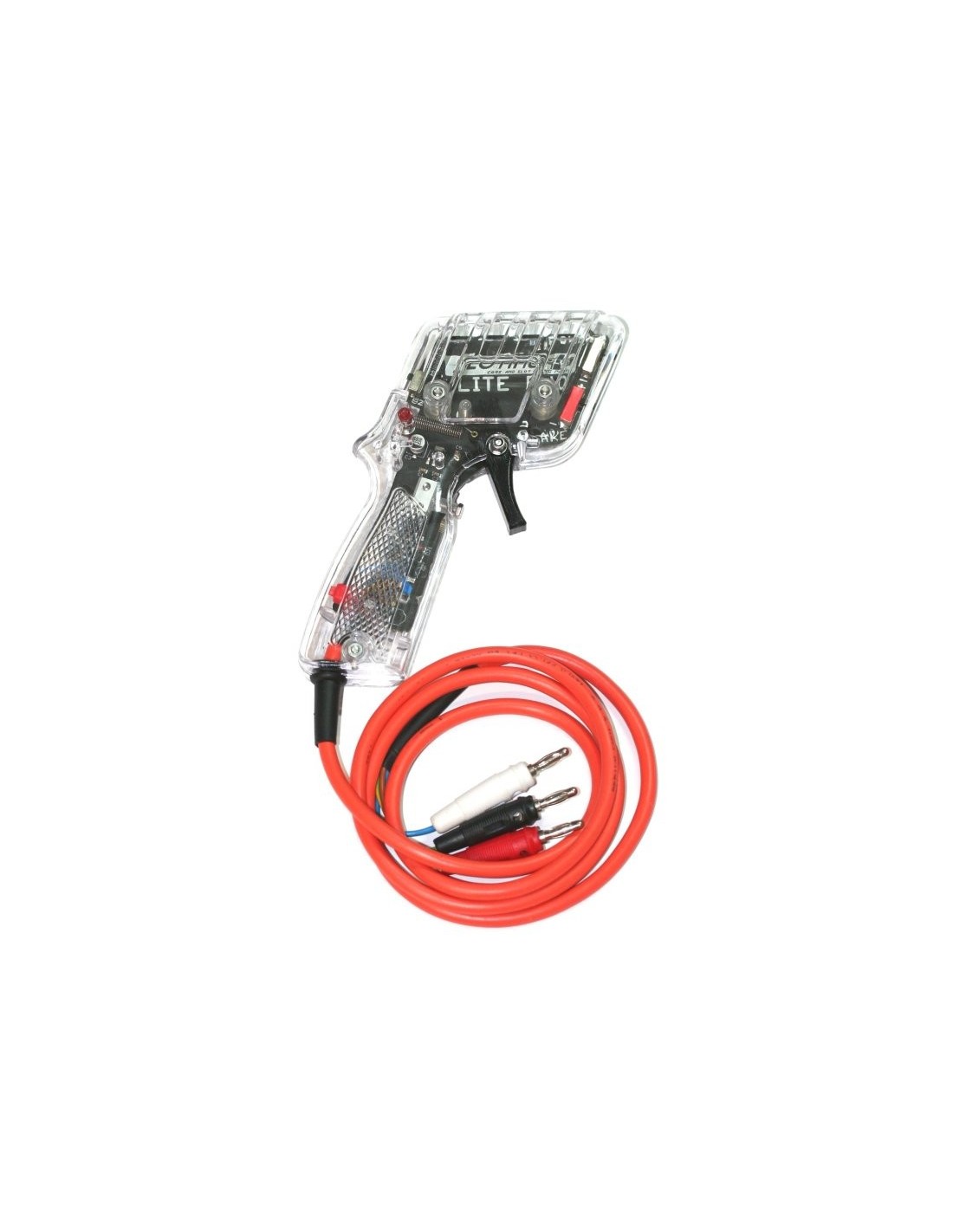

• Flexible 1.25 m electrical cable with soldered banana connectors.
• Rubber protector for the cable and silicone tubes to secure the circuit to the grip.
• Lightweight for comfortable handling during long sessions.
• Includes a sturdy cardboard box for transport and protection of the controller.

Ideal for…

The Lite-Evo is specifically designed for drivers new to slot racing, both children and adults. Its compact casing and flush selectors make it particularly safe and manageable for smaller hands, while the 8 power curves allow for gradual adaptation to different types of tracks and cars. The correct learning of acceleration and braking becomes much easier when the driver can personalise the controller's response without the need for tools.

Considerations

The Lite-Evo is an entry-level controller with real electronic performance, not an analogue resistance controller. Its PWM technology provides smoother and more predictable driving than basic controllers, although those seeking maximum customisation for high-level competition will find higher-end controllers in the Sloting Plus range with more fine-tuning options.

Frequently asked questions

What track voltage is the Lite-Evo compatible with?

The controller operates in a range of 8 V to 22 V, making it compatible with the vast majority of common transformers and power supplies for both home tracks and club circuits.

Is it suitable for children?

Yes. The ergonomic Parma-style casing is sized for small hands, and the flush selectors prevent accidental manipulation. It is one of the most recommended options for safely introducing younger individuals to slot racing.

What is the difference between the 8 power curves?

Each curve defines how the controller responds at different points of the trigger's travel: from smoother and more progressive curves, ideal for learning, to more direct and aggressive curves for immediate control. The two banks of 4 curves allow for saving two different configurations and easily switching between them.

What does it mean that braking is at 100%, 85%, 75% or 50%?

These percentages indicate the maximum intensity of the electronic brake applied when releasing the trigger. 100% represents the strongest brake; reducing it to 50% provides a softer and more progressive braking, useful for very light cars or tracks with fast corners.

Does the magnetic trigger require maintenance?

Practically not. By eliminating mechanical friction, the lifespan of the magnetic trigger is significantly longer than that of a conventional trigger and does not require periodic lubrication.

Is it compatible with both negative and positive connection tracks?

Yes, the Lite-Evo allows you to select the type of track connection, making it suitable for both positive and negative connection circuits without the need for modifications.

Does it include protection if I connect the bananas incorrectly?

Yes. The controller incorporates protection against reverse polarity due to incorrect banana plug connections, adding a layer of safety especially useful for novice drivers.

What differentiates this controller from the original Lite model?

The Lite-Evo expands the configuration options compared to the first Lite, incorporating double the power curves (8 versus the original model) while maintaining the same spirit of accessibility and ease of use with a more advanced finish and electronics.

The Sloting Plus Lite-Evo is a fully electronic slot car controller designed for beginners and young drivers who want real PWM performance without complexity. With 8 power curves, 4 braking levels, magnetic trigger and ergonomic Parma-style grip, it covers voltage ranges from 8 V to 22 V and works on both positive and negative track connections. A smart entry-level choice for home layouts and club racing alike.
