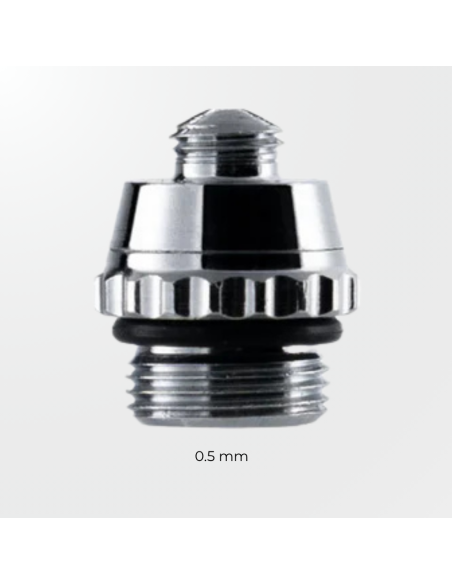

0.5mm Mobius nozzle cap

The original nozzle cap that keeps your Mobius 0.5mm in perfect condition

When working with a precision airbrush like the Gaahleri Mobius, every component matters. The nozzle cap for the 0.5mm version is one of those pieces that goes unnoticed until it fails: it creates the air chamber around the nozzle, protects the needle tip from accidental impacts, and ensures that the spray pattern is predictable and clean in every painting session.

Function and performance

The nozzle cap is not just a simple cover: its internal geometry directs the airflow in a controlled manner, reducing turbulence and promoting homogeneous atomization of the pigment. With a 0.5mm aperture, this component is designed to manage a higher paint flow, making it the right choice for:

• Application of primers and undercoats.
• Wide base coats on models, figures, and dioramas.
• Finishing varnishes on slot car surfaces or miniatures.
• Airbrushing tasks that require quick and even coverage.

As an original Gaahleri part, the materials are selected to withstand the common cleaners and solvents used in the hobby — from water-based to more aggressive ones — without degrading with continued use.

Compatibility and assembly

This cap is specifically designed for the Gaahleri Mobius airbrush with a 0.5mm nozzle. The fit is precise: it ensures concentricity with the needle and prevents any pressure loss in the mixing chamber. Replacing the nozzle cap is a straightforward operation that does not require special tools; simply remove the worn piece and screw on the new one, taking care not to force the thread.

Before installing the new piece, it is advisable to thoroughly clean the body of the airbrush and check that the needle does not have any deformations at the tip, as a bent needle can damage the new cap from the first session.

When is it time to replace it?

The nozzle cap accumulates paint residues inside and may suffer small deformations if over-tightened or subjected to impact. Signs that it is time to change it include:

• The spray pattern loses symmetry or dry spots appear.
• Air leaks are detected around the nozzle.
• The cap shows impact marks, deformations, or visible corrosion.
• Paint accumulates unevenly at the tip even when the equipment is clean.

Having a spare cap in the work drawer prevents interruptions in the middle of a project and extends the lifespan of the nozzle-needle assembly.

Frequently asked questions

Is this cap compatible with other Gaahleri airbrushes or only with the Mobius?

It is specifically designed for the Gaahleri Mobius airbrush with a 0.5mm nozzle. Before using it on another model from the brand, check the manufacturer's specifications to ensure the fit is correct.

Can I use this cap with nozzles of a different diameter from the Mobius?

No. Each nozzle cap is manufactured for a specific diameter. Using a cap designed for 0.5mm with a nozzle of a different size may cause pressure leaks or poor atomization.

How often should I clean the nozzle cap?

Ideally, it should be cleaned at the end of each work session, especially if solvent-based paints have been used. Removing pigment residues before they dry prevents blockages and extends the lifespan of the piece.

Is it necessary to use any special tools for assembly?

No. The cap screws on by hand. It is important not to over-tighten it to avoid damaging the thread or deforming the piece. If you use a wrench, do so very carefully and only for the final adjustment.

Can I paint with Vallejo, Tamiya, or Ammo using this airbrush and this cap?

Yes. The Gaahleri Mobius airbrush is compatible with the main paints in the hobby. With a 0.5mm aperture and the original cap in good condition, the performance with Vallejo, Tamiya, or Ammo paints is smooth as long as the recommended dilutions by each manufacturer are respected.

The Gaahleri Mobius 0.5mm nozzle cap (ref. GA-43028) is an original spare part designed to protect the needle tip, stabilize airflow and ensure consistent atomization in every painting session. Compatible exclusively with the Mobius 0.5mm airbrush, it is ideal for scale modelling, dioramas, slot car painting and miniature finishing. Resistant to common airbrush cleaners and solvents, it keeps your setup performing at factory standards.
