Piston lock key

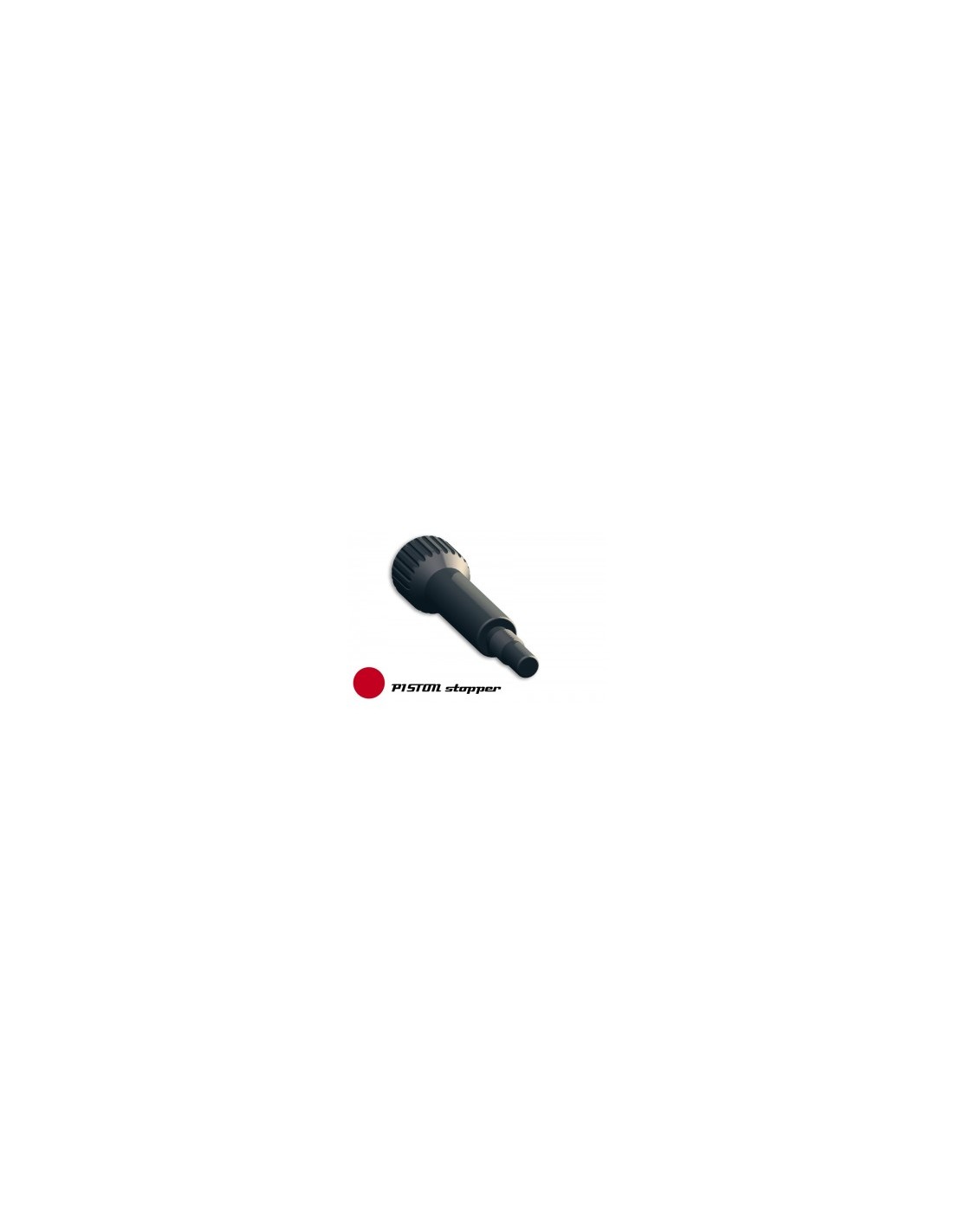

The XT-1201 Piston Locking Tool: Precision in the Workshop

When fine work on the motor makes the difference between winning and losing a heat, having the right tools is not a luxury, it is a necessity. The XT-1201 piston locking tool is designed to properly immobilise the piston during disassembly, adjustment or replacement of motor components, preventing uncontrolled rotations that could damage the interior of the assembly.

Function and Performance

This tool serves a specific and critical function: to lock the piston while working on the motor. Without this locking, any intervention can cause irregular stresses, marks on the seats or even breakages in delicate parts. With the XT-1201, the process gains in safety and repeatability, two key factors for the preparer seeking consistent results.

Compatibility

• Compatible with motors that use a standard cylinder head.
• Not suitable for motors with turbo cylinder heads. Check the type of cylinder head on your motor before using it.

Assembly and Preparation

The use is straightforward: it is inserted in the locking position over the piston following the manufacturer's instructions for the motor. It is recommended to clean the work area beforehand and ensure that the motor is cold and under no tension before proceeding. A simple tool to use, but one that makes a real difference in the quality of the work performed.

Common Mistakes

• Attempting to use it on motors with turbo cylinder heads: the geometry is not compatible and can damage both the tool and the motor.
• Forcing the lock without having previously relieved the pressure from the system: always release tension before immobilising the piston.

Frequently Asked Questions

What type of motor is this tool designed for?

It is designed for motors that incorporate a standard or normal cylinder head. It is not suitable for variants with turbo cylinder heads, whose geometry requires a different specific tool.

Can I use it on any brand of motor?

As long as the motor has a standard cylinder head, the XT-1201 should fit. We recommend checking compatibility with the specifications of your specific motor before forcing any adjustments.

Is this tool necessary or can I do without it?

Technically, it is possible to work on the motor without it, but the risk of damaging internal components is significantly higher. If you perform preparations with some frequency, a specific locking tool like this saves time, avoids mistakes, and protects your investment in the motor.

What other preparation tools is it commonly used with?

It is commonly used alongside pinion extraction tools, axle alignment tools, and measuring gauges. A well-equipped workbench makes a difference in the final result of the setup.

The XT-1201 piston locking tool is an essential workshop instrument for slot car motor preparation. Compatible with standard cylinder head motors — not suitable for turbo cylinder heads. A reliable solution for precision motor disassembly, adjustment and maintenance, helping club racers and hobbyists achieve consistent results on the workbench.
