Screw guide

The right guide makes a difference on Carrera track

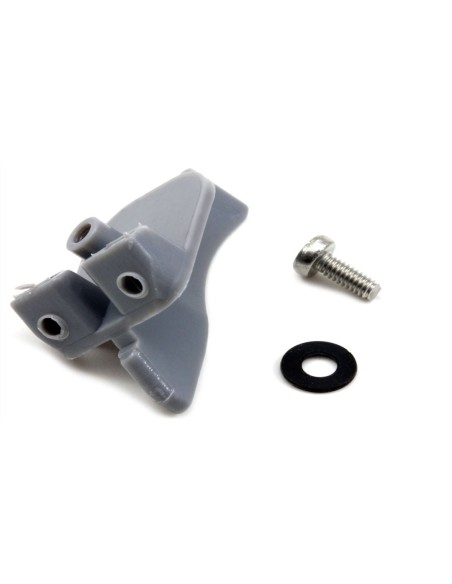

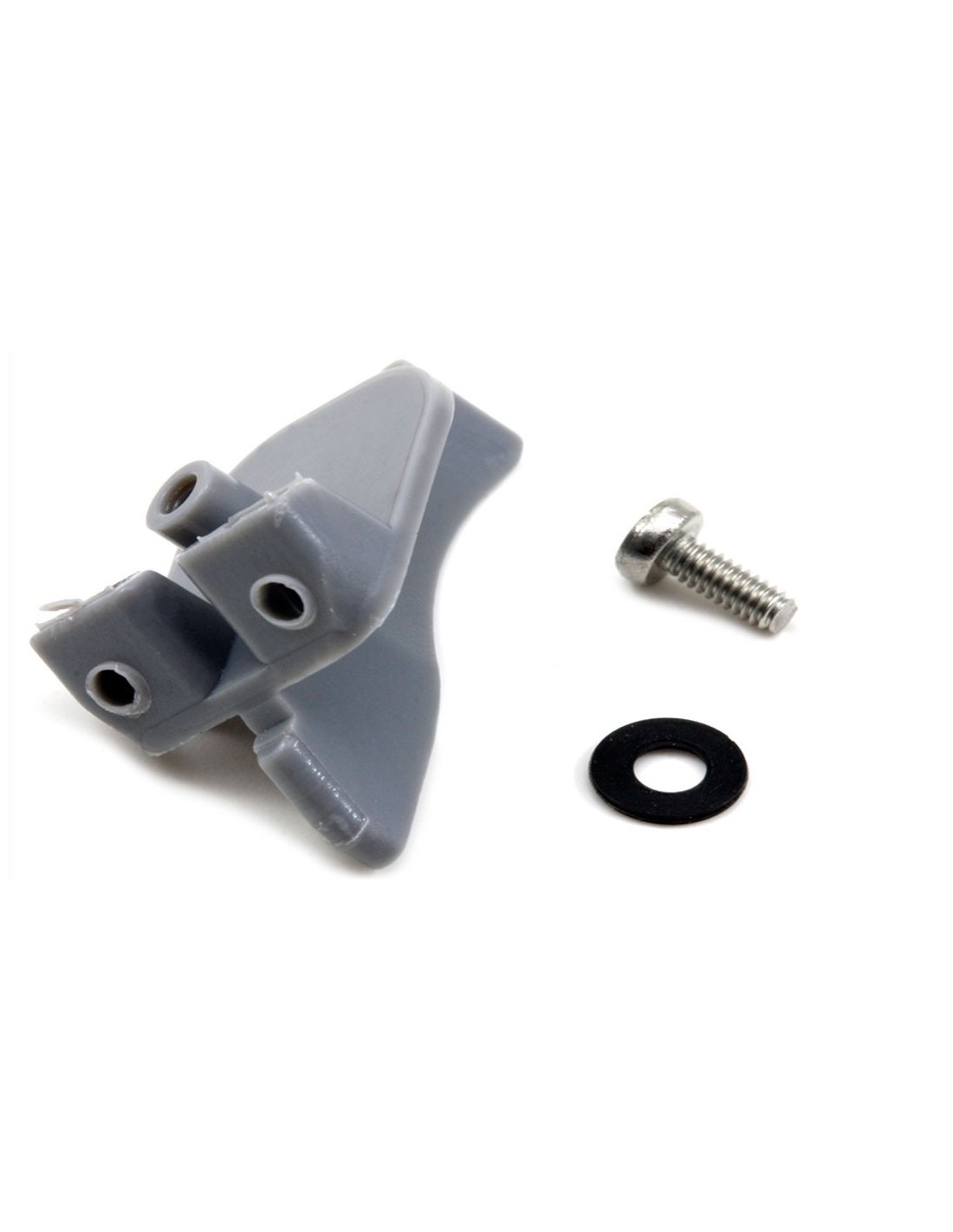

The reference TH-GU002 from Thunderslot is a lowered and long guide, supplied with its 2 x 8 mm screw, designed for mounting on cars prepared to run on Carrera track. Its lowered profile allows for greater clearance from the rail surface, while its extra length favours a more secure and consistent grip, especially in tight corners or in track configurations with higher demands.

Function and performance

The guide is one of the most critical elements of any slot car: it is the piece that literally guides it through the rail and transmits current from the braids to the motor. A damaged guide — worn, broken, or with excessive play — results in disconnections, loss of power, and involuntary off-track excursions.

The lowered design of this guide reduces friction with the channel floor, which is particularly noticeable on track surfaces with higher resistance or on cars with a low height configuration. The long format provides more lateral contact surface with the rail walls, improving stability in corners without the need to adjust other preparation parameters.

Compatibility

This guide is intended for Carrera track. Before installing it, it is advisable to check that the guide housing of the chassis accepts the long and lowered format; in some models, a minimal adjustment of the fit or the tension of the braids may be necessary to ensure optimal electrical contact.

Assembly and preparation

• The included 2 x 8 mm screw facilitates a direct replacement without the need to source additional hardware.
• When mounting the guide, ensure it has free pivot movement but without excessive lateral play.
• Check that the braids make proper contact with the guide rails once installed; poor contact at this point is the most common cause of micro-cuts in current.
• If the car is going to race in club competition, check the local regulations regarding the type of guide allowed in your category.

Frequently asked questions

What is the difference between a standard guide and a lowered guide?

The lowered guide has less height from the support base to the bottom, resulting in less friction with the bottom of the rail. This can translate into less resistance to forward motion and a smoother behaviour, especially on tracks where the car runs very close to the ground.

Why does it matter that the guide is long?

A longer guide offers greater contact with the rail walls, improving stability in corners and reducing the risk of going off track. In high-powered cars or on layouts with fast chicanes, this detail makes a noticeable difference.

Is the included screw of standard metric size?

Yes, the screw is 2 x 8 mm, a common size in slot guides. This facilitates its replacement if lost or damaged, as it is a commonly used screw in slot preparation.

Can I use this guide on tracks other than Carrera?

The guide is specified for Carrera track. Its use on other rail systems (Scalextric, Ninco, Scaleauto…) will depend on the dimensions of the channel of each manufacturer; compatibility outside its intended system is not guaranteed.

The Thunderslot TH-GU002 is a lowered long guide with a 2x8 mm screw, designed for Carrera track systems. A precise slot car spare part that ensures stable rail contact and consistent electrical performance — ideal for club racing preparation and slot car tuning.
