Inline Motor Mount Offset 0.5mm

Precision to the tenth: in-line mount with 0.5 mm offset for long-can motors

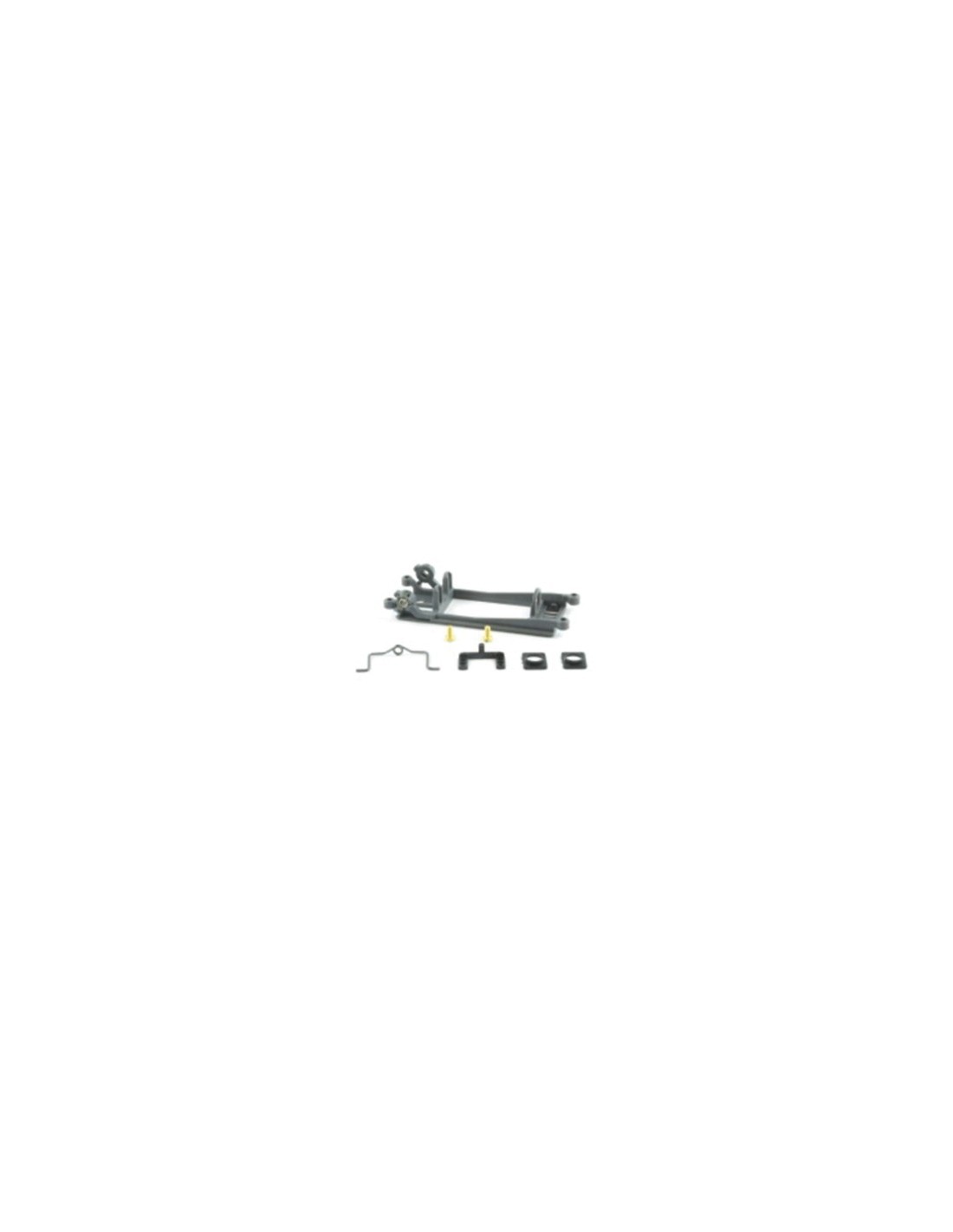

The SICH114 from Slot.it is a motor mount specifically designed for the in-line configuration —longitudinal motor, perpendicular to the rear axle— and compatible with long-can motors. Its distinguishing feature is the 0.5 mm offset, a millimetric lateral displacement that allows for adjustment of the motor position to optimise the gear ratio, weight distribution, or available space within the chassis.

Function and performance

In the in-line configuration, the motor is positioned in line with the longitudinal axis of the car, which helps lower the centre of gravity and improve cornering stability. The 0.5 mm offset of this mount introduces a controlled displacement that can be crucial when aligning the drivetrain —pinion-crown gear ratio— or adapting the motor to a chassis with specific space constraints.

• In-line configuration: longitudinal motor, lower centre of gravity.
• 0.5 mm offset: precision lateral displacement for fine-tuning transmission.
• Designed for long-can motors.
• Manufactured by Slot.it, a benchmark in precision components for Sport track.

Compatibility

This mount is designed to integrate into the common chassis and preparation systems of Slot.it, and is especially useful in competition projects where every tenth of a millimetre in the alignment of the drivetrain can make a difference. As a Slot.it component, it is ideal for Sport track systems, although its use will always depend on the specific chassis and motorisation of each project.

Assembly and preparation

The assembly follows Slot.it standards: direct fit into the corresponding housing of the chassis, with no additional modifications in most applications. Before permanently securing the mount, it is advisable to check the alignment of the pinion with the crown gear and confirm that the chosen offset —in this case, 0.5 mm— is appropriate for the planned gear ratio. Slot.it offers various offset values in its range of mounts, so it is recommended to have clear measurements of the assembly before selecting one or another.

Common errors

• Confusing the necessary offset: always check the measurements of the pinion and crown gear before choosing the mount.
• Over-tightening the mount before verifying the alignment of the drivetrain.
• Using this mount with short-can motors, for which Slot.it has specific references.

Frequently asked questions

What does "0.5 mm offset" mean in a motor mount?

The offset indicates the lateral displacement of the motor shaft relative to the central position of the mount. In this case, 0.5 mm allows for adjustment of the pinion position to mesh correctly with the chosen crown gear or to free up space within the chassis.

What motors is the SICH114 designed for?

It is designed for long-can motors, the most common format in Slot.it's competition motors. It is not suitable for short-can motors.

Is it compatible with chassis from other brands?

The mount is designed for Slot.it systems. Compatibility with chassis from other brands depends on the specific dimensions of each chassis; it is advisable to verify this before assembly.

What is the difference between in-line and sidewinder?

In the in-line configuration, the motor is placed longitudinally, in line with the car, which lowers the centre of gravity. In the sidewinder configuration, the motor is positioned transversely, parallel to the rear axle. They are different geometries with distinct handling characteristics.

Can I use this mount on Scalextric tracks?

The mount itself is an internal component of the car and does not depend on the type of track. However, the resulting car must be equipped with the appropriate guide for the track it will run on.

The Slot.it SICH114 is a precision in-line motor mount with a 0.5 mm offset, specifically designed for long-can motors. It allows fine-tuning of the motor position within the chassis, optimising gear mesh alignment and weight distribution for competitive slot car racing. An essential component for Slot.it chassis builds on Sport track systems.
