Vortex R8X

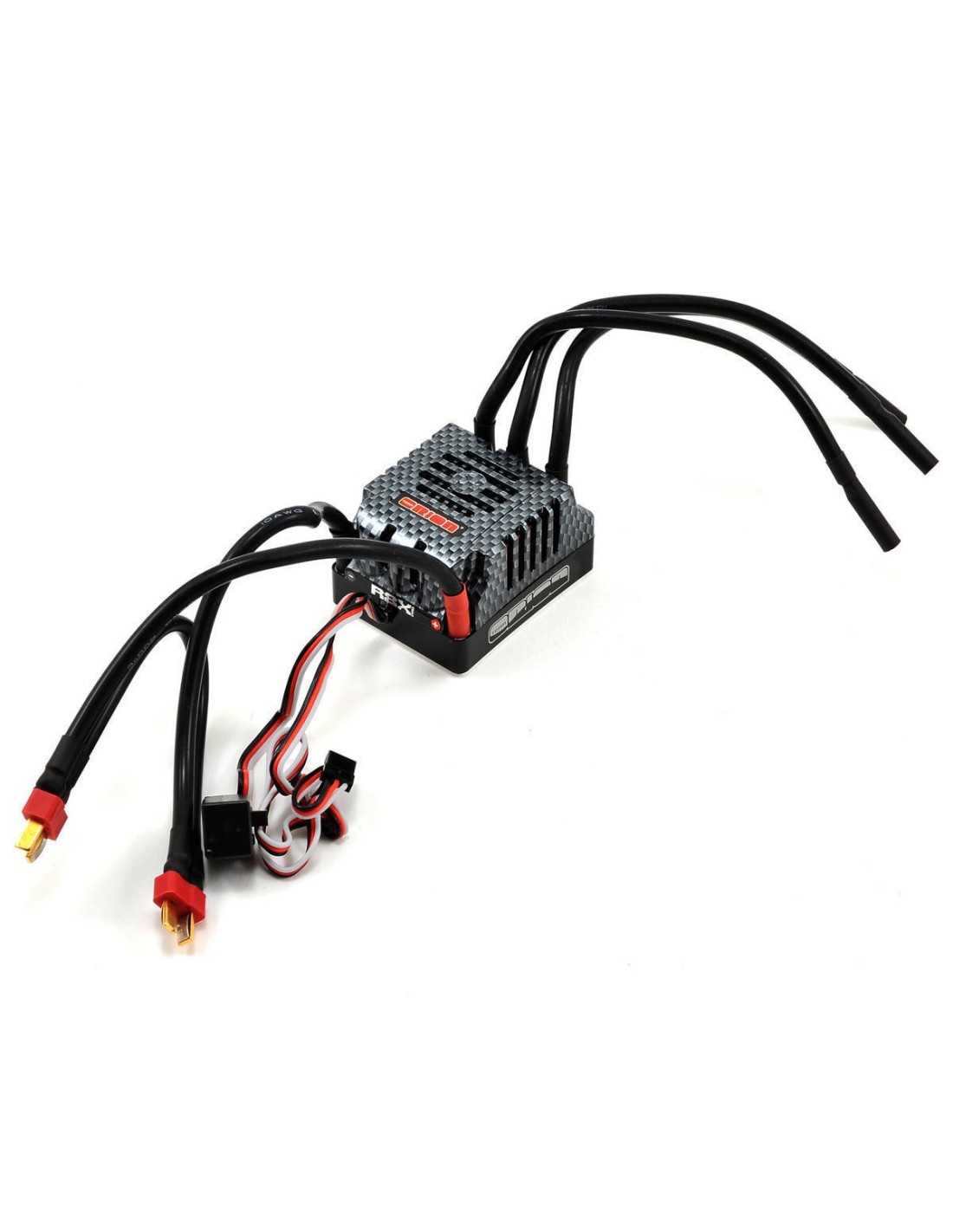

Team Orion Vortex R8X: power and brushless control for scales 1/8, 1/10 and 1/12

The Vortex R8X from Team Orion is a brushless electronic speed controller (ESC) designed to demand maximum performance in competitive radio control applications. With a continuous current of 220A and peaks of up to 1050A, this controller is intended for those who do not settle for just adequate performance.

Important: this is a refurbished product. It was installed in a car solely for demonstration purposes and has never been used on track or in competition. Its condition is that of a display unit, not a used product.

Technical specifications

Main features

• 220A continuous power with peaks of 1050A: ample margin for the most demanding applications.
• Compatible with 2S to 6S LiPo batteries, making it very versatile depending on the vehicle and scale.
• Works with brushless motors with sensor and sensorless of 2 and 4 poles.
• Two operating modes: forward/brake and forward/reverse (especially useful in Rock Crawler setups).
• PUSH brake technology for a progressive and powerful braking response.
• Highly customizable software: multiple adjustable parameters from Team Orion's software.
• Large cooling system with integrated fan and heatsink.
• High-capacity capacitors integrated for greater electrical stability.
• Heavy Duty 10G flexible wiring and high-power connections.

Recommended applications

The Vortex R8X fits a wide variety of radio control vehicles in scale 1/8, 1/10 and 1/12, both in sensored configurations (for smoother low-speed response) and sensorless. Thanks to the voltage range of 2S to 6S, it can adapt from more modest setups to high-voltage configurations aimed at competition.

The forward/reverse function also makes it suitable for Rock Crawlers, where precise control at low speeds is essential.

Behaviour and performance

The R8/R10 generation from Team Orion was designed with three goals: high performance, high reliability, and ease of use. The PUSH brake system improves braking power compared to previous generations, and the configurable software allows the driving profile to be tailored to the driver and the track. The large heatsink and fan ensure that the ESC remains within temperature even during long sessions or with high-voltage batteries.

Considerations

As a refurbished product, the unit may show marks from the installation and disassembly process, although it has never been used in operation. We recommend checking the condition of the connectors before the first use and configuring the ESC from scratch through Team Orion's official software to ensure that the parameters are adjusted to your specific application.

Frequently asked questions

Does this ESC work with sensorless motors?

Yes, the Vortex R8X is compatible with both sensored and sensorless brushless motors of 2 and 4 poles.

What type of batteries does it accept?

It accepts LiPo batteries from 2S (7.4 V) to 6S (22.2 V). The recommended max kV varies according to the voltage: 3000 kV at 4S and 2400 kV at 6S.

What does it mean that it is a refurbished product?

This unit was mounted in a vehicle solely for installation demonstration purposes. It was never used in operation or in competition. Its functional state is that of a new product, although it may show some superficial marks from the assembly and disassembly process.

Can I use it in a Rock Crawler?

Yes. The Vortex R8X has a forward/reverse mode specifically designed for Rock Crawler applications, where precise reverse control is necessary.

Is it difficult to configure?

Team Orion designed this ESC with ease of use as one of its pillars. It has specific software that allows multiple parameters to be adjusted intuitively, without the need for advanced electronics knowledge.

What happens if the ESC overheats?

The Vortex R8X incorporates a fan and a large heatsink to dissipate heat efficiently. Nevertheless, during very prolonged sessions with high-voltage batteries, it is advisable to take periodic breaks to avoid overheating.

The Team Orion Vortex R8X is a high-performance brushless ESC delivering 220A continuous and 1050A peak current, compatible with 2S to 6S LiPo batteries and both sensored and sensorless brushless motors. With fully customizable software, PUSH brake technology, and a heavy-duty cooling system, it suits 1/8, 1/10, and 1/12 scale RC vehicles in racing and crawling applications. This is a refurbished unit — installed for display purposes only, never run. Available at Ministry of Hobby.
