Universal Infrared Sensor for 2 Lanes

Error-free timing on 2 lanes with DS Racing infrared technology

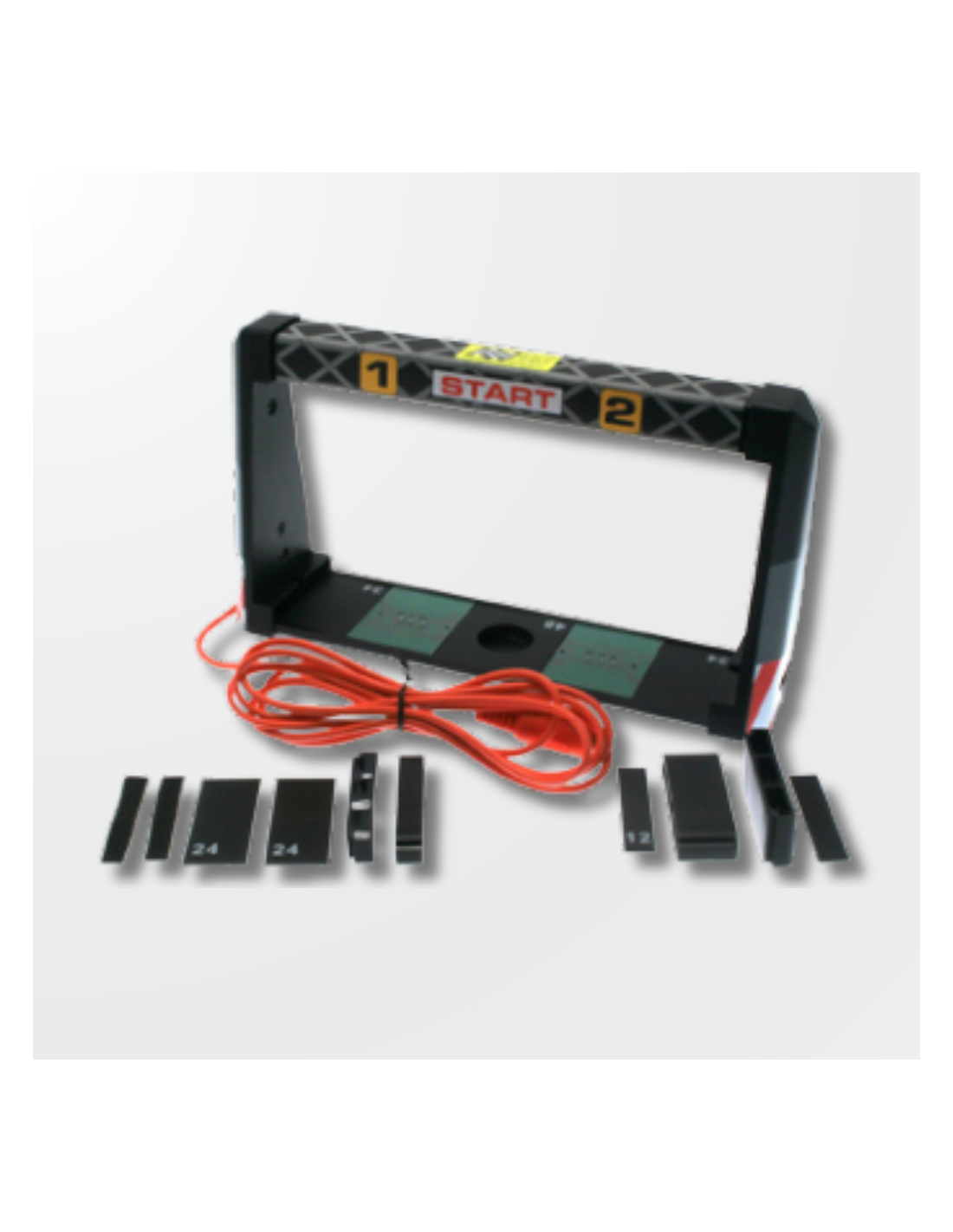

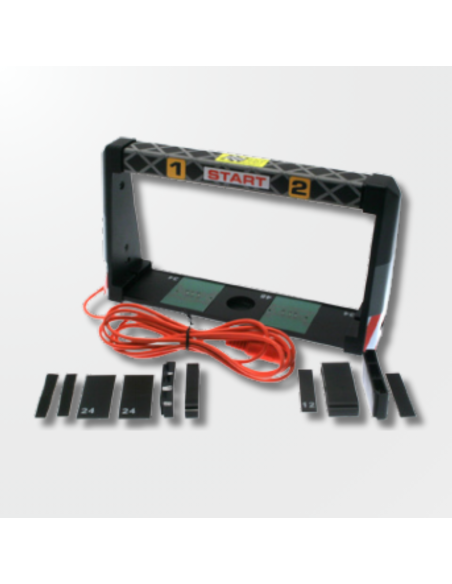

The DS-0106 is the infrared sensor bridge from DS Racing designed to provide absolute reliability for timing on 2-lane tracks. Unlike mechanical or magnetic systems, infrared detection eliminates any variables related to physical contact or rail conductivity, accurately recording the passage of the vehicle with millisecond precision.

Main features

• Detection technology: infrared without physical contact with the vehicle.
• Number of lanes: 2 (expandable with additional units).
• Track compatibility: universal — suitable for plastic tracks from various brands (Scalextric, Carrera, Ninco…) and homemade wooden circuits.
• Hardware compatibility: designed to connect to DS Racing lap counters DS-200 and DS-300 via standardized wiring.
• Installation: requires a simple drilling on the sides of the track to accommodate the sensors.

Function and performance

The system consists of a transmitter and a receiver placed on either side of each lane, forming an infrared light beam that the vehicle interrupts as it passes. Since it does not depend on the weight of the magnet, the guide, or the conductivity of the circuit, the DS-0106 registers any slot car with the same precision, regardless of its mechanical configuration or scale.

The reading is instantaneous even at maximum competition speeds, with no interference from ambient lighting, making it the reference option for clubs and tournaments where every millisecond has real value.

Compatibility and mounting

Its universal design allows the DS-0106 to adapt to both commercial plastic tracks and handmade wooden circuits, without the need to modify the track's electronics. The connection to the lap counters DS-200 and DS-300 is direct through the included wiring, simplifying installation and maintaining a clean finish at the timing station.

If the installation includes more than 2 lanes, the system is expandable by adding additional units of the same model.

Ideal for…

• Slot clubs seeking reliable timing for championships and practice sessions.
• Enthusiasts with their own track wanting to upgrade to a professional measurement system.
• Mixed installations with tracks of different brands or materials, thanks to its universal compatibility.

Frequently asked questions

Is it compatible with any type of track?

Yes. The DS-0106 has a universal design, making it compatible with plastic tracks from various brands and with homemade wooden circuits, without the need for additional adapters.

Which lap counters are compatible with this sensor?

It is specifically designed for the DS Racing lap counters DS-200 and DS-300. The connection is made via the included standardized wiring.

Do I need to drill the track to install it?

Yes, installation requires a simple drilling on the sides of the track to accommodate the transmitter and receiver for each lane. It is a straightforward and common intervention in any professional timing installation.

Does it work with cars of any scale?

As it is an infrared detection system without contact, it does not depend on the weight of the magnet or the mechanical configuration of the vehicle, making it compatible with slot cars of different scales.

Can I expand the system to more than 2 lanes?

Yes. The system is expandable by adding additional units of the DS-0106 to cover as many lanes as necessary.

Are the infrared signals affected by the room's lighting?

The system is designed to minimize external light interference, providing reliable readings even in environments with variable artificial lighting, such as those commonly found in club venues.

The DS-0106 is a universal infrared sensor bridge by DS Racing, designed for 2-lane slot car lap counting with millisecond precision. Compatible with plastic and wooden tracks from multiple brands, it connects directly to DS-200 and DS-300 lap counters. No contact with the vehicle required — ideal for club racing, home layouts and competitive timing setups.
