Nylon pinion z9 FINE

The Z9 Fine Pinion: more smoothness, more adaptability, more precision in adjustment

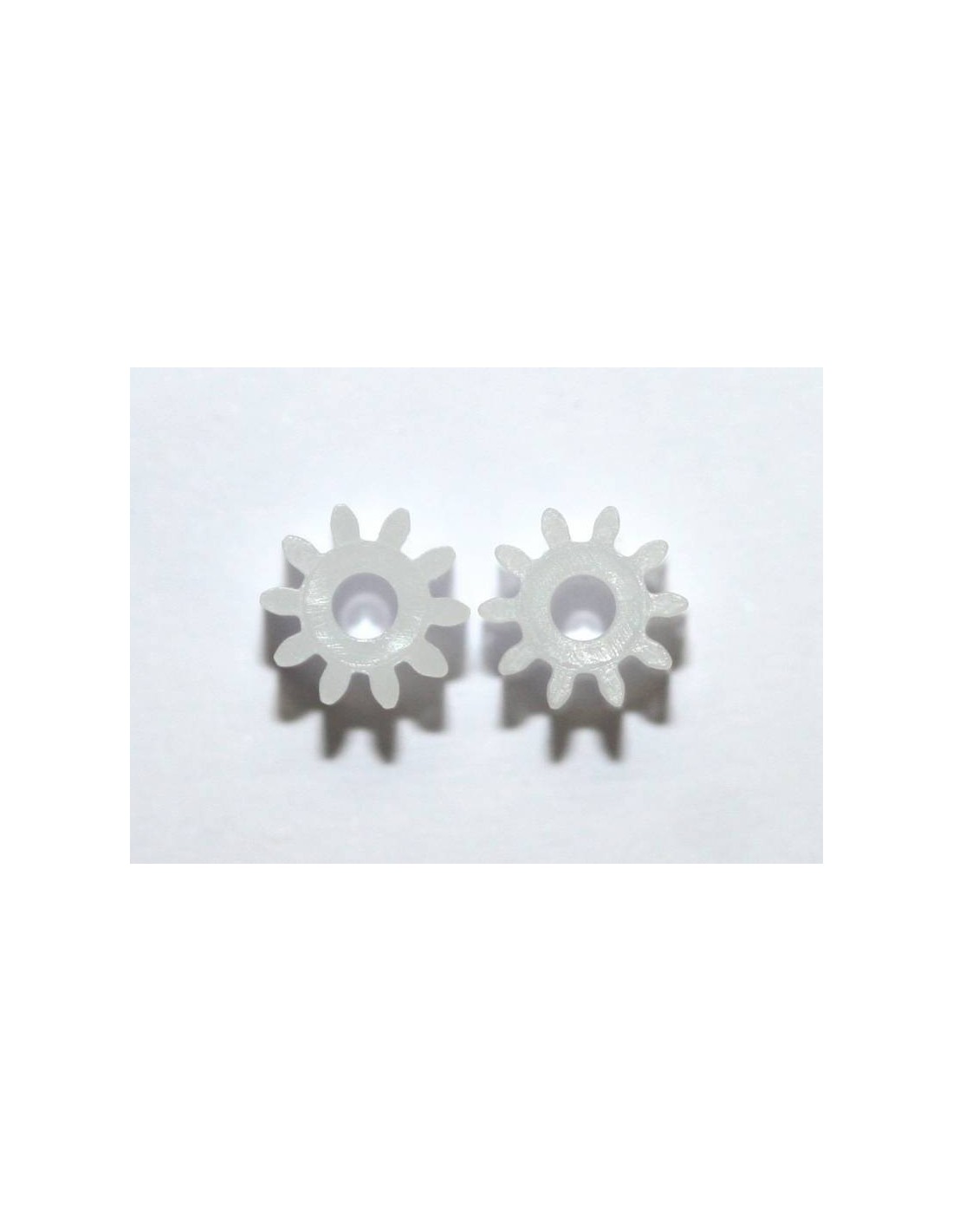

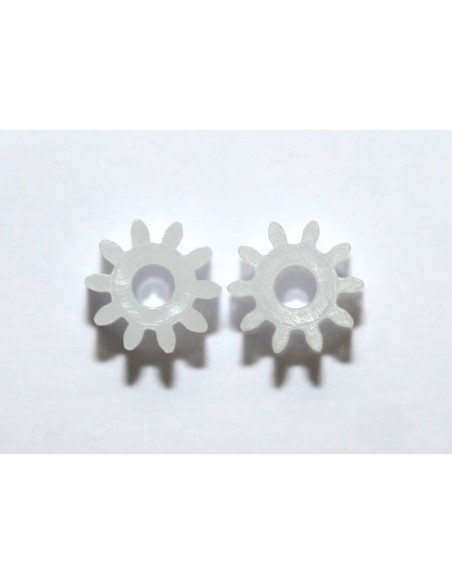

The Z9 Fine Nylon Pinion SP083009 from Sloting Plus is the narrow-tooth variant of the well-known Z9 pinion. Its main difference compared to the homonymous model SP082909 is the greater spacing between gears, achieved precisely thanks to finer teeth. This geometry significantly alters the behaviour of the drivetrain.

Function and performance

With narrower teeth, this pinion moderates the power delivery from the motor and helps to smooth the braking. For many enthusiasts and tuners, this translates into a car that is more manageable in corner exits and has a more progressive response when releasing the trigger of the controller.

Another practical advantage is its greater compatibility with the wide variety of crowns available in the slot market. If you use crowns from different brands or with slightly different modules, the Fine version may give you more room for adaptation than the standard pinion.

Technical specifications

• Reference: SP083009
• Material: Nylon
• Number of teeth: 9 (Z9)
• Outer diameter: 5.5 mm
• Length: 5 mm
• Compatible axle: 2 mm diameter (press-fit)
• Colour: Blue
• Contents: Bag with 4 units

Assembly and preparation

The pinion is mounted press-fit onto 2 mm axles. Before installing it, ensure that the axle is clean and free of burrs to guarantee a proper fit. Once mounted, the adjustment with the crown requires special attention: being a fine-tooth pinion, the tolerance margin in the gear mesh is smaller, so a poor adjustment can lead to excessive noise or premature wear.

As with any nylon pinion, it is recommended to lightly lubricate the gears before running. A small amount of lubricant on the teeth extends the lifespan of the assembly and improves the smoothness of the transmission. Keep in mind that nylon pinions, by their very nature, have a shorter lifespan than metal ones and should be checked and replaced regularly.

Considerations

• The gearing is somewhat noisier than that of the standard Z9 pinion, an effect inherent to the fine-tooth geometry.
• It requires a more precise adjustment with the crown: take time for setup before racing.
• The wear is slightly greater than in the wide-tooth version, so it is advisable to have spare units on hand, especially during long club sessions.

Ideal for…

This pinion is a good choice for those looking to smooth the character of the motor without changing the gear ratio, or for those needing to adapt the drivetrain to crowns of variable module. It is also useful as a setup tool in fine-tuning tests on club circuits where smoothness in response makes a difference.

Frequently asked questions

What is the difference between the SP083009 and the SP082909?

Both are nylon pinions with 9 teeth, but the SP083009 is the Fine version: its teeth are narrower, which creates greater spacing between gears. This smooths power delivery and braking, but requires a more precise adjustment with the crown and is somewhat noisier.

What axles is it compatible with?

It is designed to be press-fit onto 2 mm diameter axles, the most common size in the slot world.

How many units does the bag contain?

Each bag contains 4 units of the SP083009 pinion.

Which crowns does it work best with?

The Fine version is compatible with a wider variety of crowns on the market due to its narrow-tooth geometry. However, precisely for this reason, it requires more careful adjustment: the play between pinion and crown should always be checked before racing.

How often should I change it?

Nylon pinions wear out quickly, especially the Fine version. It is recommended to inspect them after each intense running session and replace them at the first sign of visible wear on the teeth.

Is it necessary to lubricate the gears?

Yes. Light lubrication on the teeth of the pinion and crown improves performance and extends the lifespan of the assembly. Use a specific lubricant for slot transmissions in minimal quantity to avoid it reaching the braids or the motor.

The Sloting Plus SP083009 is a 9-tooth fine nylon pinion gear (Z9 Fino) designed for 1/32 slot car drivetrains. With a diameter of 5.5 mm, a length of 5 mm and a press-fit for 2 mm axles, it offers smoother power delivery and braking response compared to the standard Z9 version. Supplied in a bag of 4 units in blue colour, it provides wider crown compatibility but demands precise gear mesh adjustment. Essential slot car spare part for club racing setup and fine-tuning transmission ratios.
