8-Tooth Nylon Pinion: The Small Link That Makes a Difference in Transmission

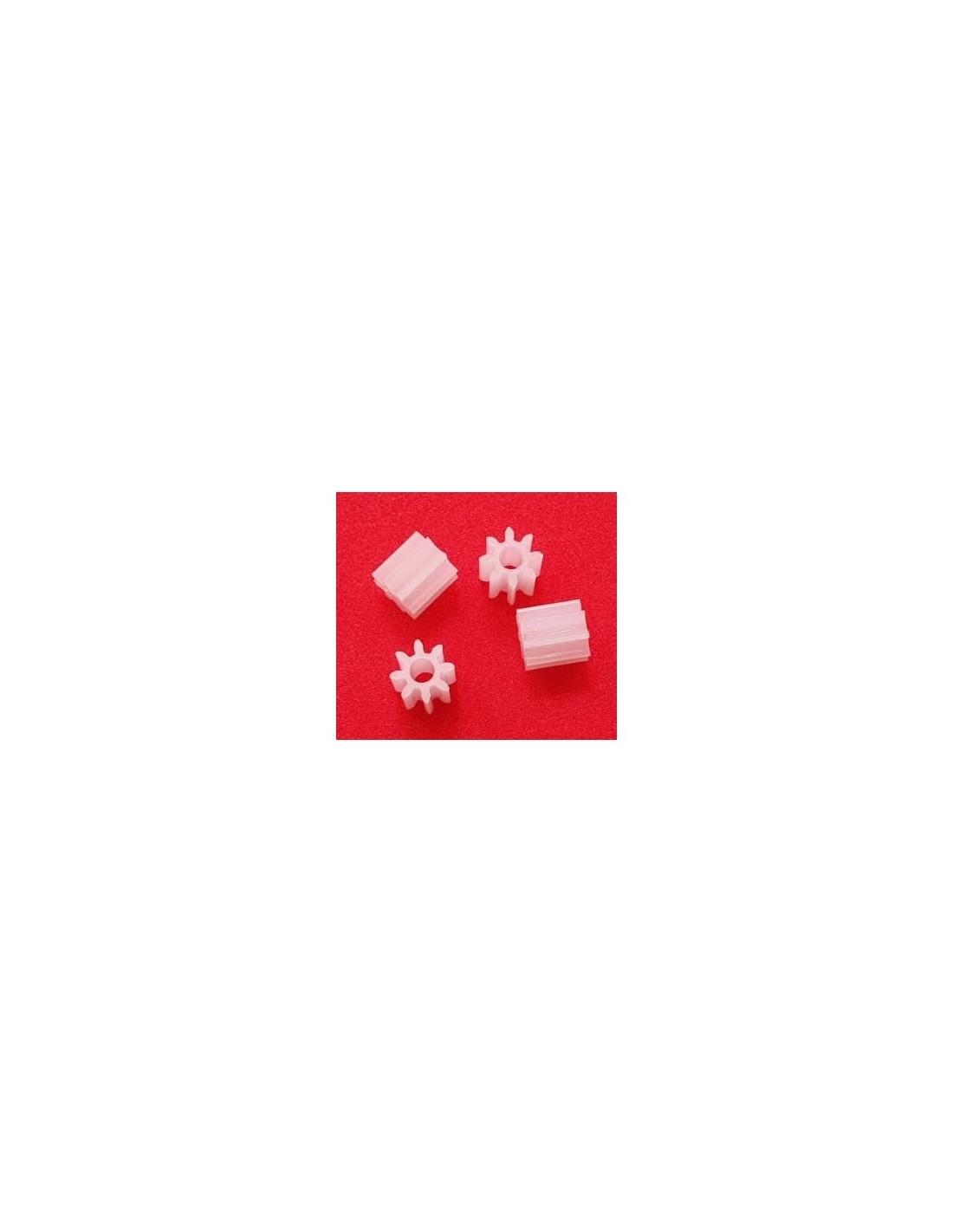

In the slot world, transmission is as important as the motor. A worn, broken, or poorly adjusted pinion can ruin the performance of a car that, on paper, should fly around the track. The 8-tooth nylon pinion Mustang M-PC004 is the direct solution to keep the drivetrain in perfect condition.

Function and Performance

The pinion is the element that transmits the motor's rotation to the crown gear, thus completing the car's transmission system. With 8 teeth, this configuration offers a transmission ratio determined by the number of teeth on the crown gear it pairs with: fewer teeth on the pinion and more on the crown results in greater torque and better corner exit; more teeth on the pinion leads to higher top speed on long straights.

The nylon material provides several practical advantages: it absorbs vibrations better than metal versions, operates quietly, does not require constant lubrication, and is more forgiving of crown wear when there is slight misalignment.

Compatibility and Installation

Before installing this pinion, check that the inner diameter of the central hole is compatible with your motor shaft. Also verify that the module of the pinion matches that of the crown gear you are using in your car, as mixing different modules creates play, noise, and loss of efficiency. If in doubt, measure with a caliper or consult the technical data sheet of your current crown gear.

Installation is straightforward: remove the worn pinion from the motor shaft, clean the shaft, press the new pinion until it is properly seated, and check the distance between the pinion and crown gear with a piece of cigarette paper or a feeler gauge. A correct separation ensures smooth and quiet transmission.

When to Change the Pinion?

It is advisable to check the pinion regularly, especially after long running sessions. The most common signs of wear are:

• Rattling or clicking noise in the transmission.
• Loss of traction without apparent cause in the motor.
• Visibly worn or chipped teeth.
• Excessive play when manually moving the rear axle.

Replacing the pinion in time prevents greater damage to the crown gear and even to the motor gears.

Frequently Asked Questions

What is the difference between a nylon pinion and a metal one?

Nylon dampens vibrations better, operates more quietly, and is less aggressive on the crown gear. Metal, on the other hand, offers greater rigidity and durability under high load conditions, although it generates more heat and noise. For club or home track use, nylon is usually the more balanced option.

How do I know if this 8-tooth pinion is compatible with my car?

You need to verify three data points: the diameter of the motor shaft, the module of the pinion, and the module of your current crown gear. If the module and shaft diameter match, the pinion will fit correctly.

What transmission ratio do I achieve with 8 teeth?

The ratio depends on the number of teeth on the crown gear. For example, with a 27-tooth crown gear, you get a ratio of 27/8 = 3.375:1. The higher that number, the more torque the car will have on corner exit; the lower, the higher the top speed.

Is it necessary to lubricate a nylon pinion?

Generally, it is not essential, but a small amount of specific slot transmission grease can extend the lifespan of the pinion and crown gear and reduce noise. Always apply sparingly to avoid contaminating the tyres or braids.

Can I use this pinion in any motor configuration (Sidewinder, Inline, Anglewinder)?

The type of motor mounting does not affect the compatibility of the pinion in terms of teeth or module, but it does influence the orientation of the pinion relative to the crown gear. Always ensure that the crown gear and pinion are correctly aligned in the plane of rotation, regardless of the motor configuration.

The Mustang M-PC004 is an 8-tooth nylon pinion gear, a key slot car transmission spare part for maintaining drivetrain performance. Compatible with standard slot car motor axles, this nylon pinion offers quiet operation and smooth power transfer from motor to crown gear. Essential for slot car tuning, club racing maintenance, and home track setups. Lightweight and easy to install, it is a reliable replacement part for any slot enthusiast looking to keep their car running at its best.
