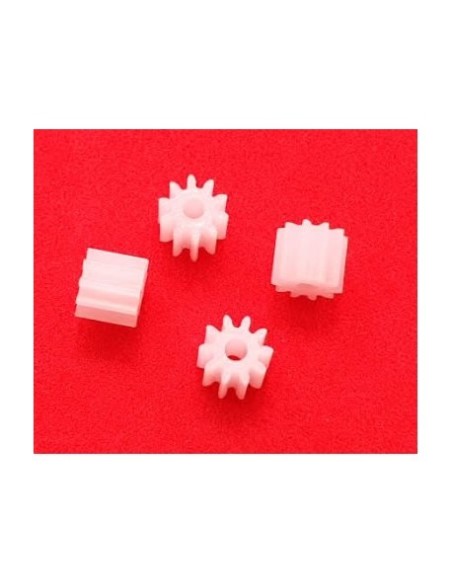

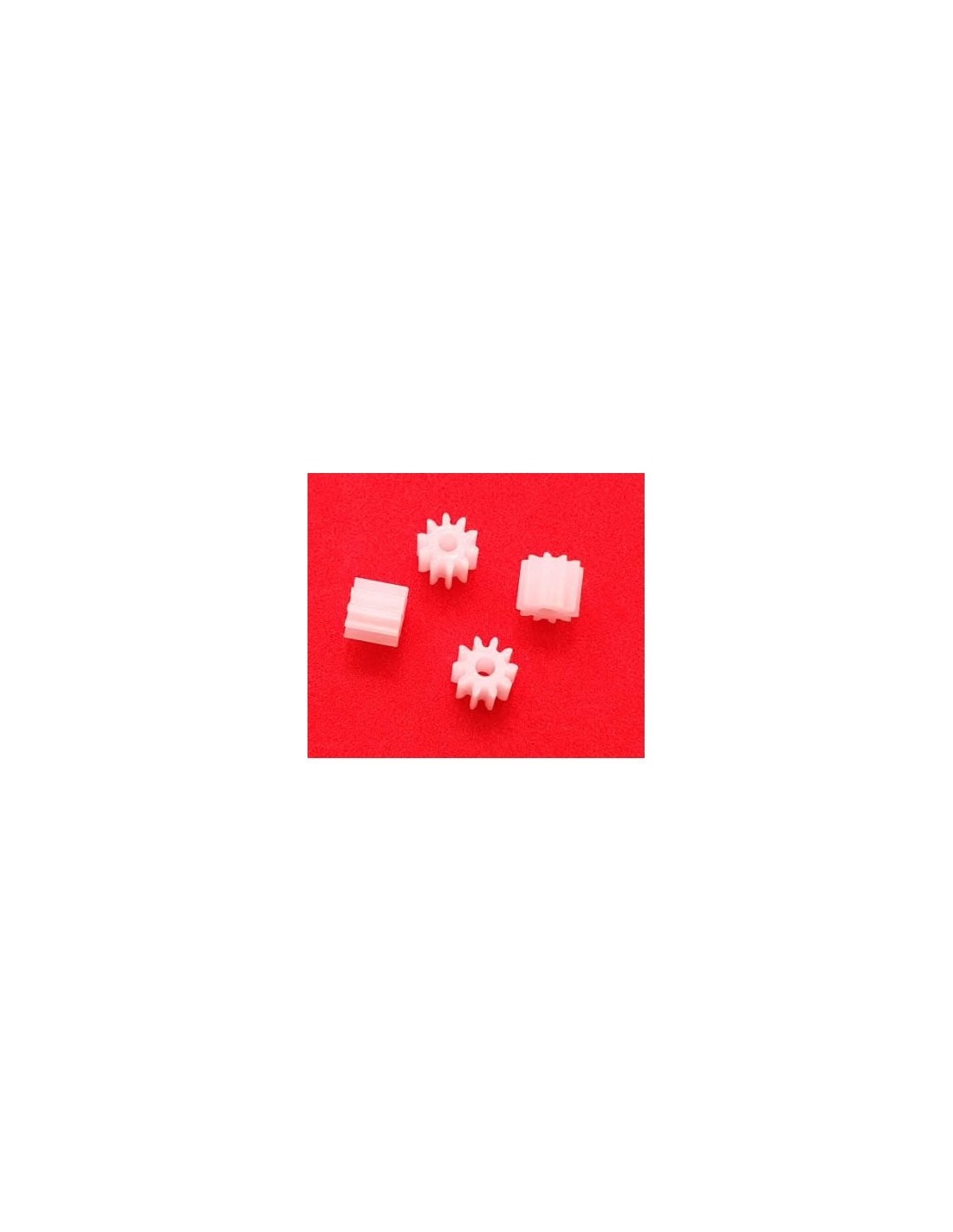

10-tooth nylon pinion

The nylon pinion that keeps your transmission running

The M-PC006 pinion from Mustang is an essential spare part in the transmission of any slot car that uses this type of gearing. With 10 teeth and made from nylon, it offers the classic advantages of this material in slot mechanics: low noise level during operation, good impact absorption, and a lightweight design that hardly penalises the overall setup.

Function and performance

The pinion is the smallest gear in the transmission: it directly couples to the motor shaft and transmits the rotation to the crown gear, which in turn drives the rear axle. The correct choice of the number of teeth on the pinion —combined with those of the crown gear— determines the gear ratio of the car: a 10-tooth pinion with a larger crown gear provides more torque and acceleration, ideal for technical circuits with many curves.

Nylon is a widely used material in slot pinions for several reasons:

• It operates dry without the need for constant lubrication.
• It dampens vibrations and reduces transmission noise.
• It is lighter than metal pinions, which benefits rotational inertia.
• It is more economical to replace when wear occurs.

Compatibility and installation

This pinion corresponds to the reference M-PC006 in the Mustang catalogue. For correct installation, it is essential to check that the inner diameter of the pinion fits the diameter of the motor shaft of the car where it will be installed, as well as ensuring that the centre distance between the pinion and the crown gear is appropriate to guarantee a clean engagement without excessive play.

If you have doubts about the exact compatibility with your model, consult the manufacturer's technical documentation or the Ministry of Hobby team before proceeding with the installation.

Installation and preparation

When installing the pinion, keep these points in mind:

1. Carefully remove the old pinion to avoid damaging the motor shaft.
2. Check the condition of the shaft before mounting the new part.
3. Ensure that the pinion is well aligned with the crown gear to avoid premature wear.
4. Adjust the distance between the pinion and crown gear: there should be minimal play for smooth rotation, without excessive clearance.

Common mistakes

• Mixing pinions and crown gears with different modules: although they may visually appear compatible, if the module does not match, wear will be rapid and performance poor.
• Over-tightening the pinion against the crown gear: eliminating all play causes noise, heating, and accelerated wear on both parts.
• Not checking the condition of the motor shaft: a bent or worn shaft will render the new pinion useless in a few sessions.

Frequently asked questions

What crown gear should I pair with this 10-tooth pinion?

It depends on the gear ratio you are looking for your circuit. A crown gear with a higher number of teeth will provide more torque and acceleration; a smaller crown gear will increase top speed. Check your car's specifications and try different combinations to find the optimal setup.

Is nylon better than metal for a slot pinion?

Each material has its advantages. Nylon is quieter, lighter, and does not require lubrication, making it very practical for recreational and club use. Metal offers greater durability under high loads, although it generates more noise and can damage the crown gear if there is an alignment issue.

When should I replace the pinion?

When you notice visible wear on the teeth, increased noise in the transmission, loss of responsiveness, or irregular movement in the car. A worn pinion can accelerate the wear of the crown gear, so it is advisable to check it regularly.

Do I need special tools to install it?

To extract and install pinions, it is recommended to use a specific pinion puller for slot cars, which prevents damage to both the pinion and the motor shaft. Forcing extraction by hand can bend the shaft or damage the part.

The Mustang M-PC006 is a 10-tooth nylon pinion gear, an essential slot car transmission spare part. Lightweight and quiet, it pairs with various crowns to adjust gear ratio for club racing or recreational use. Find the best slot car parts and accessories at Ministry of Hobby.
