Triangular offset sidewinder motor mount -0.75mm

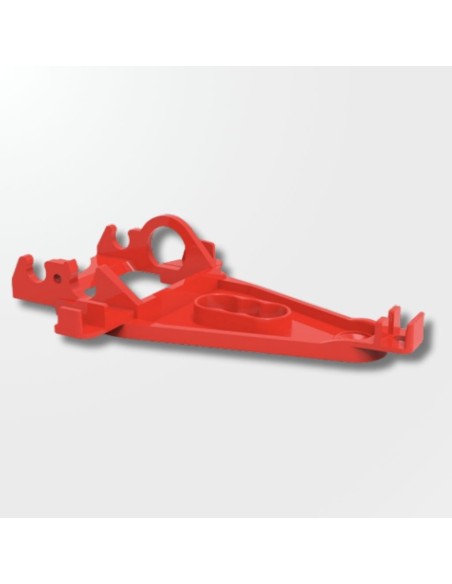

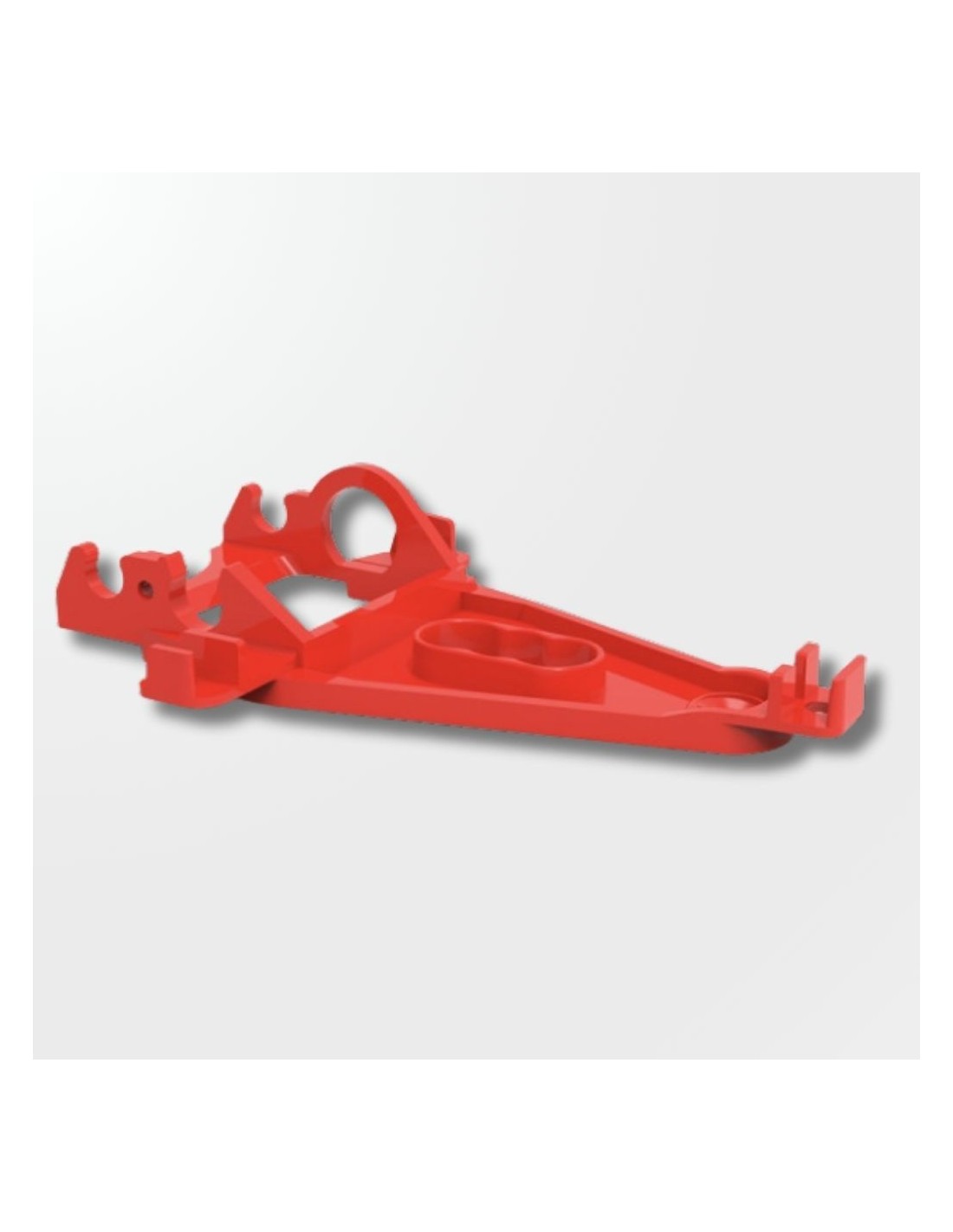

The offset that makes the difference: NSR1264EVO triangular sidewinder mount

Within the NSR spare parts catalogue for 1/32 scale, motor mounts are one of the components with the greatest direct impact on the car's dynamic behaviour. The NSR1264EVO is the mount for sidewinder configuration —motor positioned parallel to the rear axle— with a triangular geometry and a -0.75mm offset. An apparently small adjustment that preparers know well: that three-quarters of a millimetre downwards positions the mass of the motor closer to the track and measurably alters how the rear end behaves.

Function and performance

The negative offset shifts the position of the motor below the standard reference plane relative to the rear axle. The result is a lower centre of gravity, which reduces lateral roll in corners and improves mechanical grip, especially on high-grip circuits or in fast track conditions where the car tends to lighten the rear end in wider corners.

The triangular shape of the mount is not just aesthetic: it provides structural rigidity at the three support points, minimising flex under load and ensuring that the mesh between pinion and crown gear remains constant and free of unwanted play. This translates into smoother transmission and more uniform wear of the drivetrain components.

Compatibility and installation

The NSR1264EVO is designed for NSR chassis with triangular motor pods in sidewinder configuration. Before installation, it is advisable to check that the receiving chassis accepts this type of mount and that the -0.75mm offset is suitable for the gear ratio and crown gear diameter you are using, as a more pronounced offset may require adjusting the pinion height or guide tension to maintain the correct geometry.

The installation poses no complications for those who have already worked with NSR mounts: the fixing points follow the standard of the range, and replacement can be done without specialised tools.

Installation and preparation: common mistakes

• Not checking the crown gear play: lowering the motor with the negative offset changes the distance between pinion and crown gear. Always check the lateral play before the first run.
• Installing without checking axle alignment: a poorly seated mount can introduce vibration even with a precision part like this. Ensure that the support points are fully resting on the chassis.
• Confusing negative offset with positive: the -0.75mm lowers the motor; if you are looking to raise the centre of gravity for low-grip surfaces, you would need a positive offset. Choose the value according to your track conditions.

Frequently asked questions

What is the difference between a mount with -0.75mm offset and one with 0mm offset?

The offset indicates how much the motor shaft is displaced relative to the reference plane of the mount. With -0.75mm, the motor is 0.75mm lower than in the neutral position, bringing more mass closer to the track and reducing the centre of gravity of the rear assembly.

What type of circuit is this offset more suitable for?

The negative offset performs better on circuits with good grip or on fast tracks where cornering stability is a priority. On tracks with low grip or very technical layouts, a smaller or neutral offset may offer a more balanced performance.

Is it compatible with all NSR chassis?

It is designed for NSR chassis with triangular motor pods in sidewinder configuration. Check the technical sheet of your chassis to confirm compatibility before making the change.

Does the offset affect the adjustment of the pinion and crown gear?

Yes. By modifying the vertical position of the motor, the distance between pinion and crown gear changes slightly. It is essential to check the transmission play after installation to avoid a gear mesh that is too tight or has excessive play.

Can this mount be combined with different NSR motors?

The mount is compatible with motors that fit into the triangular sidewinder pod of the NSR system. The choice of motor is independent of the mount, as long as the fixing measurements of the system are respected.

The NSR1264EVO triangular sidewinder motor mount with -0.75mm offset is a precision replacement part for 1/32 scale slot car chassis, designed to lower the motor's centre of gravity and improve rear traction. A trusted choice among competitive slot car builders using NSR chassis with triangular motor pods, it ensures consistent gear mesh and enhanced cornering stability on high-grip tracks.
