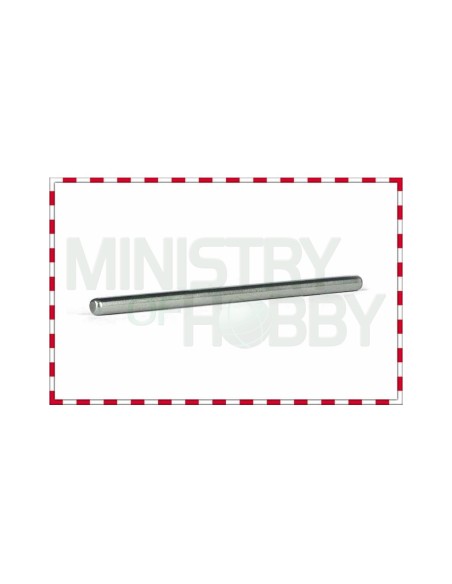

48mm Axle (X2)

Precision from the axle: the foundation of an uncompromising transmission

When preparing a slot car is taken seriously, the small details make the difference between a rear end that transmits smoothly and one that introduces vibrations, play, or premature wear. The ground and hardened axle from Slot.it reference SIPA01-48 is one of those parts that work silently but are noticeable as soon as the car rolls on the track.

Technical specifications

• Diameter: 2.38 mm (3/32")
• Length: 48 mm
• Finish: ground and hardened
• Pack contents: 2 units
• Reference: SIPA01-48
• Manufacturer: Slot.it

Function and performance

The grinding process ensures a very tight dimensional tolerance, resulting in a clean and concentric rotation. The hardening, on the other hand, provides the necessary hardness to withstand continuous work with crowns, pinions, and bearings without suffering deformations or seating marks that degrade the transmission with use.

An axle that is not properly ground introduces eccentricities that manifest as vibrations at high speed, uneven tyre wear, and loss of contact in corners. Starting from a reference piece like this eliminates that variable from the very beginning.

Compatibility and installation

The standard diameter of 3/32" (2.38 mm) is the most widespread in 1/32 scale and is compatible with the wide range of crowns, pinions, bearings, and wheel hubs in the Slot.it ecosystem, as well as with components from other brands that respect this measurement. The length of 48 mm makes it suitable for rear axle configurations in conventional width chassis.

Before installation, it is advisable to check that the bearing supports of the chassis are free of burrs and that the axle fits without forcing. A clean installation ensures that all the grinding work is utilised on the track.

Common mistakes

• Bending the axle when disassembling: always use a suitable extractor or pusher, never apply direct leverage on the part.
• Installing with play in the bearings: if the axle rotates with radial play, the bearing or its housing needs to be checked before proceeding.
• Confusing with 3/32" axles of other lengths: always check the length (48 mm) before ordering or installing, as Slot.it offers various length options for different applications.

Frequently asked questions

Why does it come in a pack of 2 units?

Slot.it sells this axle in packs of 2 units, which is practical for having a spare on hand, preparing two cars at once, or simultaneously replacing the front and rear axle in configurations that require it.

Is it compatible with cars from other brands besides Slot.it?

The 3/32" (2.38 mm) diameter is a widely used standard in 1/32 slot, so this axle is compatible with numerous chassis and components from other brands that respect that measurement. It is always advisable to verify the necessary length for each specific application.

What advantage does a ground axle have over a non-ground one?

Grinding ensures a tighter dimensional tolerance and a more uniform contact surface, which reduces vibrations, improves the concentricity of the rotation, and prolongs the lifespan of bearings and crowns.

Do I need any special tools to install it?

It is not essential, but it is advisable to have an extractor or a flat-tipped punch to insert and remove the axle without the risk of bending it or damaging the chassis. A depth gauge or caliper helps to centre it correctly.

The Slot.it SIPA01-48 axle is a 48 mm long, 2.38 mm (3/32") diameter hardened and ground steel axle for 1/32 scale slot cars. Sold in a pack of 2, it ensures precise fitment with Slot.it rear axle assemblies, bearings, gears and wheels. An essential spare part for slot car racing preparation, compatible with standard 3/32" axle components across multiple brands.
