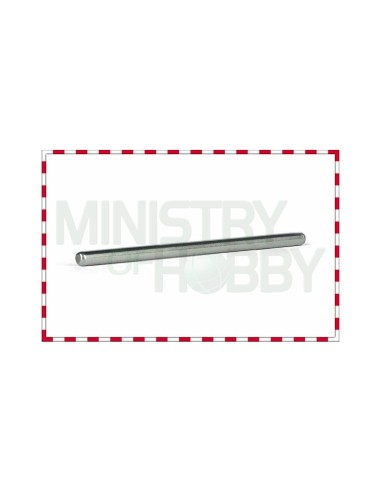

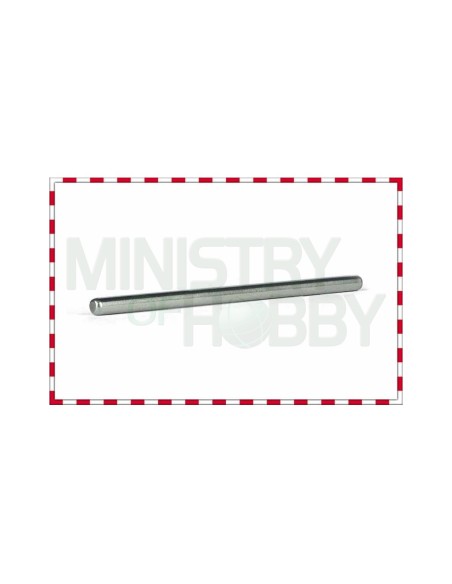

54mm Axle (X2)

Precision from the axle: the foundation of a no-compromise slot transmission

When it comes to tuning in slot racing, attention usually focuses on motors, crown gears, or tyres. However, the rear axle is the component that ties everything together: if it is not perfectly straight and has the appropriate tolerances, no other adjustment will compensate for the resulting imbalance. This pair of Slot.it axles with reference SIPA01-54 meets that requirement exactly.

Technical specifications

• Diameter: 2.38 mm (3/32")
• Length: 54 mm
• Treatment: ground and tempered
• Units per pack: 2
• Reference: SIPA01-54
• Brand: Slot.it

Function and performance

The grinding process ensures precise cylindrical geometry, free from eccentricities that could lead to vibration or premature wear of bearings and crown gears. The tempering provides the necessary surface hardness to withstand continuous workload during training and competition sessions, maintaining stable measurements over time.

With a length of 54 mm and a standard diameter of 3/32", this axle is compatible with the typical architecture of Slot.it kits and chassis, in both inline and anglewinder or sidewinder configurations, as long as the chassis spacing measurements allow it.

Assembly and preparation

Before installing the axle, it is advisable to check the alignment of the chassis bearing supports and ensure that the crown gear fixings do not exert lateral pressure on the axle itself. A light polishing with fine-grit sandpaper on the bearing support points can help reduce friction if resistance to free rotation is detected. Once assembled, checking that the axle rotates without wobble by rolling it on a flat reference surface is always a good practice before closing the chassis.

Compatibility

The 3/32" (2.38 mm) diameter is the most widely used standard in 1/32 slot racing. This axle is designed for use in Slot.it assemblies, although it may also be suitable for other chassis that work with this same axle diameter. Always check the required length according to the width of your assembly before placing an order.

Common mistakes

• Forcing the axle if the bearings are misaligned: this can cause bending and imbalance.
• Over-tightening the crown gear fixings on the axle: this can mark it and create weak points.
• Ignoring the required length: an axle that is too long or too short affects the track width and the proper retention of the wheels.

Frequently asked questions

What does it mean that the axle is ground and tempered?

Grinding is a high-precision machining process that ensures a uniform diameter along the entire length of the axle, without variations or eccentricities. Tempering is a heat treatment that hardens the steel superficially, increasing its wear resistance and prolonging its lifespan.

How many axles are included in the pack?

This pack includes 2 axles of 54 mm, reference SIPA01-54.

For which motor configurations is this axle suitable?

The rear axle operates independently of the motor configuration. It is compatible with inline, anglewinder, and sidewinder setups, as long as the chassis has the appropriate bearing supports for a diameter of 2.38 mm (3/32") and a length of 54 mm.

How do I know if I need a 54 mm axle or another length?

The length of the axle should correspond to the distance between the chassis bearing supports plus the necessary space for wheel retention on each side. Check the specifications of the Slot.it chassis you are using or measure the original axle you wish to replace.

Can I use this axle in a chassis from another brand?

As long as the chassis accommodates an axle with a diameter of 2.38 mm and a length of 54 mm, it is technically possible. However, we recommend checking the manufacturer's tolerances to ensure compatibility.

The Slot.it SIPA01-54 is a pack of 2 hardened and ground 54mm rear axles with a 3/32" (2.38mm) diameter, designed for precision slot car builds. Compatible with standard 1/32 scale slot car chassis, these axles ensure smooth, vibration-free rotation essential for competitive and recreational slot car racing. A key upgrade or replacement part for any Slot.it chassis setup.
