10 Super Large XL cable terminals

XL Terminals for the Thicker Wires in Your Slot Installation

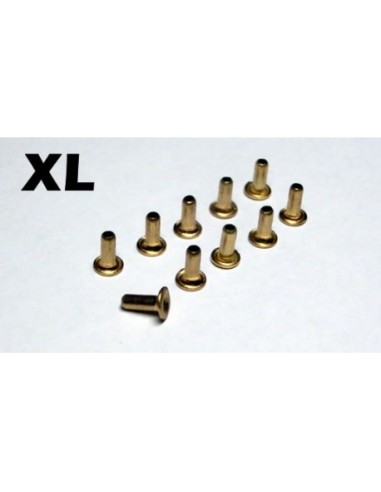

When the electrical installation of your circuit or control station requires large gauge wires, standard connectors and terminals fall short. These 10 Super Large XL Diameter Cable Terminals from Mustang (ref. M-TR004) are specifically designed to work with thicker gauges, ensuring a clean, secure connection with the lowest possible electrical resistance.

Function and Performance

A poorly sized terminal can cause signal loss, overheating, and, in the worst case, intermittent failures that are difficult to diagnose. The Super Large XL size of this pack ensures that the wire is properly housed and crimped without slack, resulting in stable and uninterrupted current transmission.

• Pack of 10 units per reference.
• Super Large XL Diameter: suitable for the largest gauge wires commonly used in club slot installations or large domestic circuits.
• Brand Mustang, reference M-TR004.

Recommended Applications

These terminals fit particularly well in:

• Main power supply for large circuits, where voltage drop along the wiring necessitates the use of larger wire gauges.
• Connections between the power supply and rail connectors in club installations.
• Reinforcement or replacement of worn terminals in existing control stations.

Assembly and Preparation

The crimping process with terminals of this size does not differ from the usual, but it is advisable to use a calibrated crimping tool for the corresponding diameter. Stripping the wire to the correct length, fully inserting it into the terminal, and applying the appropriate pressure are the three key steps to achieving a perfect and durable connection. Checking the mechanical grip before closing the installation avoids surprises during the racing session.

Common Mistakes

• Using terminals of a smaller size: the wire is not held securely, and the connection loses contact due to vibration or heat.
• Not crimping with the appropriate tool: a conventional plier does not apply the necessary uniform force and may leave the terminal improperly closed.
• Confusing terminals of different diameters: storing each size separately and labelled saves time and errors during assembly.

Frequently Asked Questions

How many terminals are included in the pack?

The pack contains 10 Super Large XL diameter terminals.

What type of wire are they designed for?

They are sized for large gauge wires, the heaviest gauges commonly used in club slot installations or large-scale domestic circuits. Please refer to the technical sheet from Mustang if you need to confirm the exact compatible gauge range.

Do I need any special tools to assemble them?

Yes, we recommend using a crimping tool suitable for the XL diameter to ensure a firm connection with good conductivity. A generic plier may not close the terminal evenly.

Are they compatible with any type of slot installation?

Yes, as they are general-use terminals, they are compatible with any installation regardless of the rail system used (Scalextric, Ninco, Scaleauto, Slot.it, Carrera, etc.), as long as the wire used is of the appropriate diameter for this XL size.

Can the terminals be reused once crimped?

No. Like all crimp terminals, they are designed for single use. Once pressure is applied, the terminal becomes deformed and should not be reused, as it would not guarantee a secure connection.

These Mustang XL cable terminals (ref. M-TR004) are a reliable choice for slot car track wiring, club-level circuit setups and large-scale power supply connections. The pack of 10 oversized crimp terminals ensures low-resistance electrical joints when working with heavy-gauge wire, making them an essential consumable for any serious slot racing installation.
