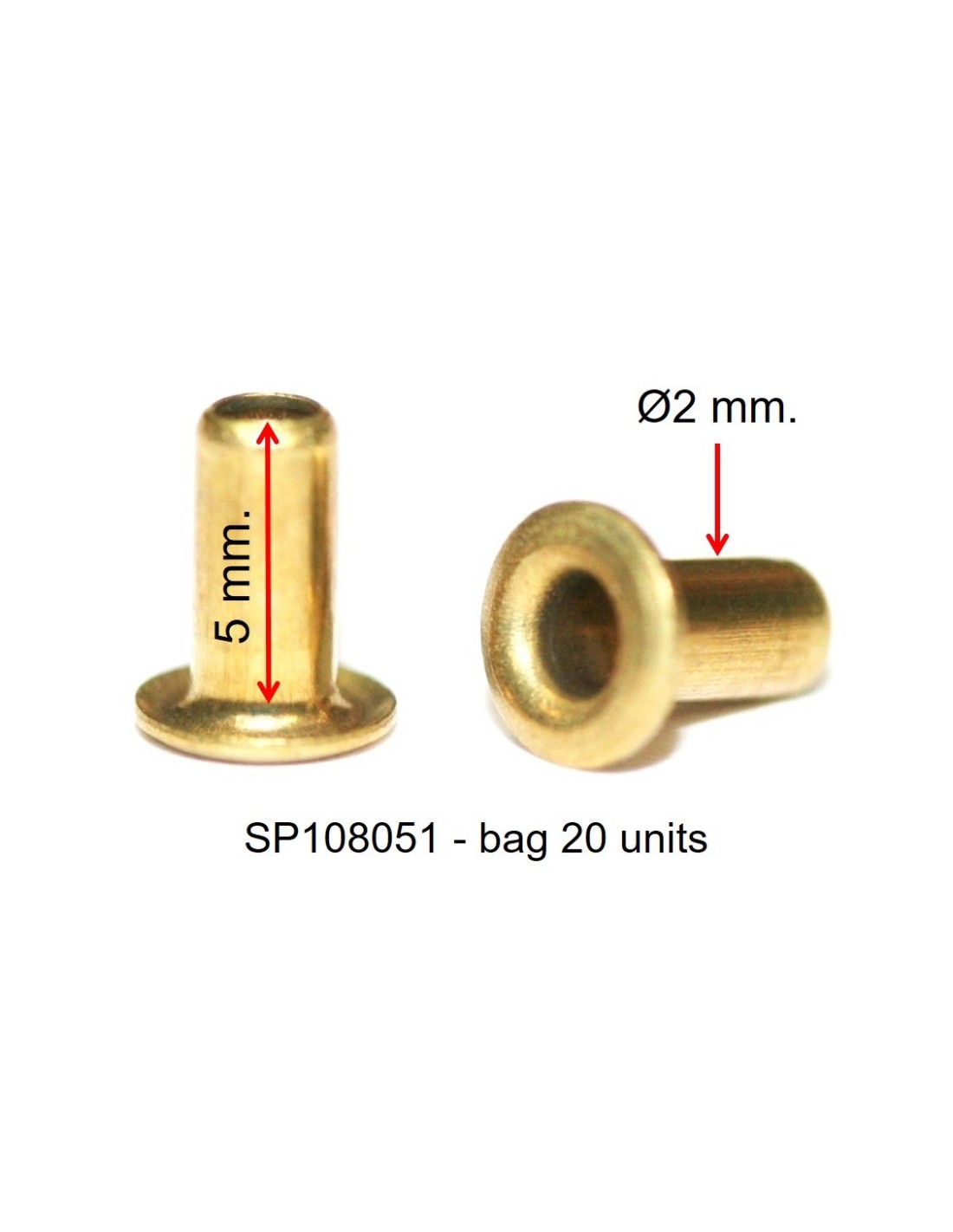

Terminal for electric cable Ø2 x 5 mm

The correct terminal makes the difference between a reliable connection and a problem during the race

The Ø2 x 5 mm electrical cable terminal from Sloting Plus (ref. SP108051) is one of those small components that, when well chosen, guarantees a continuous and secure electrical contact between the wire and the guide of your slot car. If poorly chosen, it can cost you laps, breakdowns, or even damage the guide housing.

Function and performance

This terminal acts as the connection point between the electrical wire and the guide. Its function is to ensure that the current flows consistently from the braids to the motor, without interruptions or contact losses. A terminal that does not fit well may vibrate, loosen, or even come out of the housing during driving, causing power cuts and loss of performance on track.

Compatibility and choosing the correct size

The key to choosing the right terminal is to respect the relationship between the diameter of the guide housing and the assembly formed by three elements:

• The terminal itself (Ø2 x 5 mm in this case).
• The thickness of the electrical wire strands.
• The thickness of the braids.

The sum of these three factors must allow the assembly to fit into the guide housing with enough resistance so that it does not come out during use, but without forcing the plastic to the point of breaking it. A terminal that is too large can crack or fracture the housing; one that is too small does not provide enough grip and disconnects easily.

Assembly and preparation

Before assembling the terminal, always check the diameter of your guide housing. Insert the terminal along with the wire and braids, check that the fit is firm but not forced, and ensure that the connection is well seated. A small detail at the workbench can prevent major issues on the track.

Common mistakes

• Choosing the terminal solely based on the wire diameter, without considering the thickness of the braids or the guide housing.
• Forcing an oversized terminal into the housing, which can break the guide and require replacement.
• Using a terminal that is too small that moves within the housing and causes intermittent power cuts, which are difficult to diagnose.

Frequently asked questions

Which guides is this terminal compatible with?

Compatibility depends on the diameter of the housing of each specific guide. The key is that the sum of the Ø2 x 5 mm terminal, the wire, and the braids fits correctly into your guide housing without excessive play or pressure that could damage it.

How do I know if I need the Ø2 x 5 mm terminal or another size?

Measure the diameter of your guide housing and subtract the thickness of the wire and the braids you plan to use. The indicative result will indicate which terminal diameter is appropriate. Sloting Plus offers different sizes to cover the various possible combinations.

Can I reuse the terminal if I disassemble the guide?

In general, yes, as long as the terminal shows no deformations, corrosion, or wear marks in the contact area. If there are doubts about the state of the electrical contact, it is preferable to replace it: the cost is minimal compared to the problems that a poor contact can generate.

Does the terminal affect the electrical performance of the car?

Directly, yes. A poor contact in the terminal generates additional electrical resistance, which translates into a loss of top speed and irregular motor response. Keeping the terminals in good condition is part of the basic maintenance of any prepared slot car.

The Sloting Plus SP108051 is a Ø2 x 5 mm electrical cable terminal designed for slot car guide assemblies. It ensures a reliable electrical connection between the braid wire and the guide, preventing contact loss during racing. A must-have spare part for slot car preparation and maintenance, compatible with multiple guide types depending on housing diameter. Ideal for club racers and hobbyists looking for consistent performance on track.
