Roller with transformer

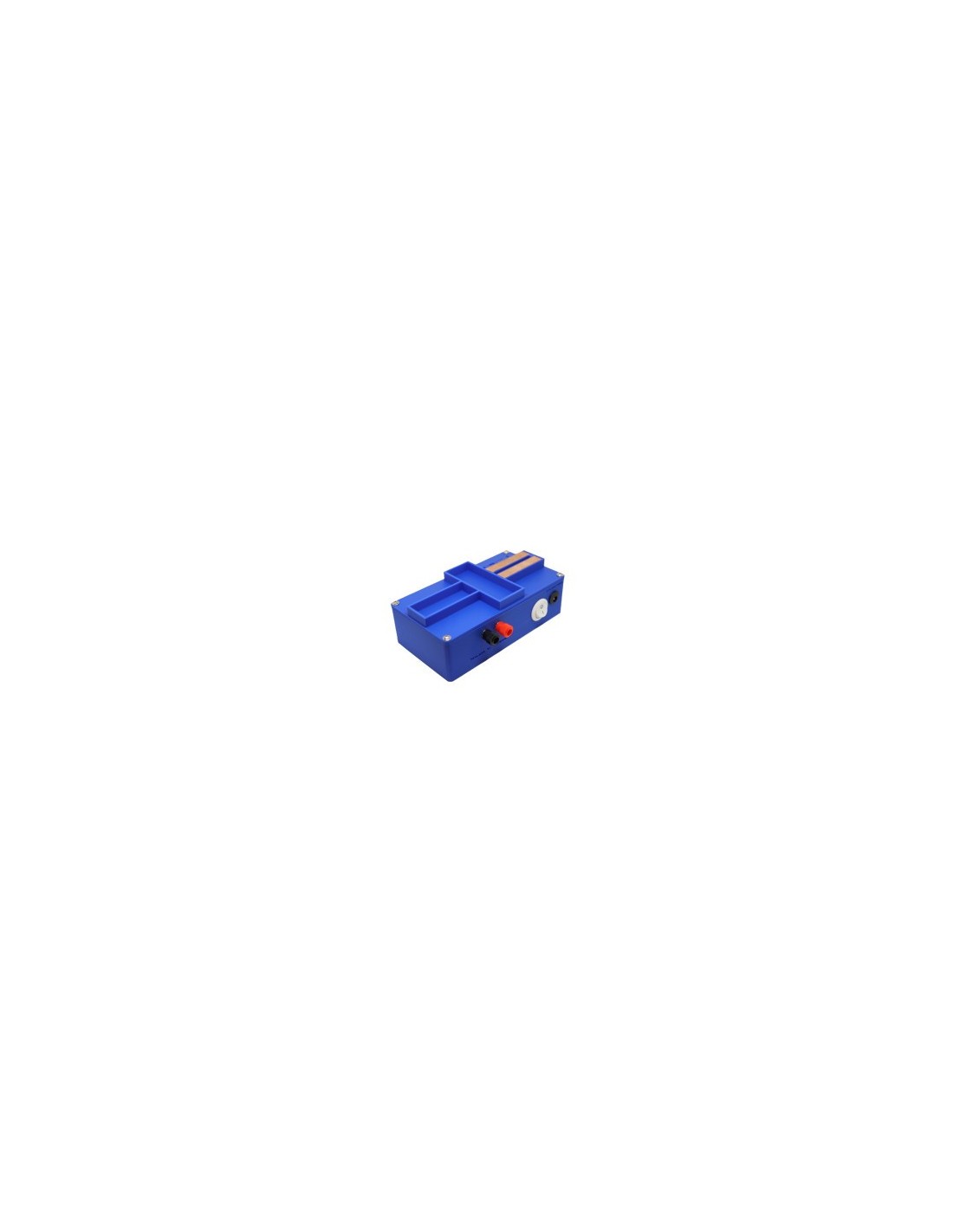

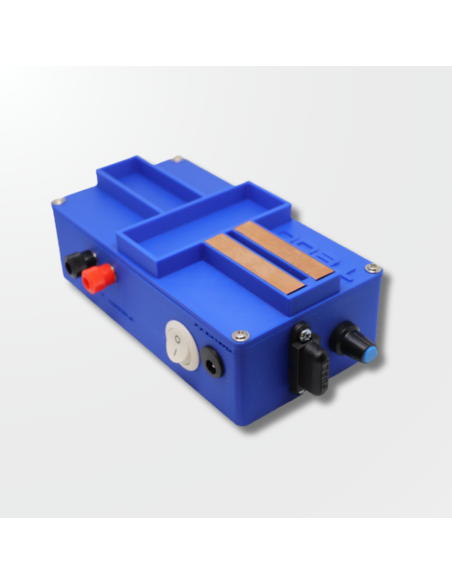

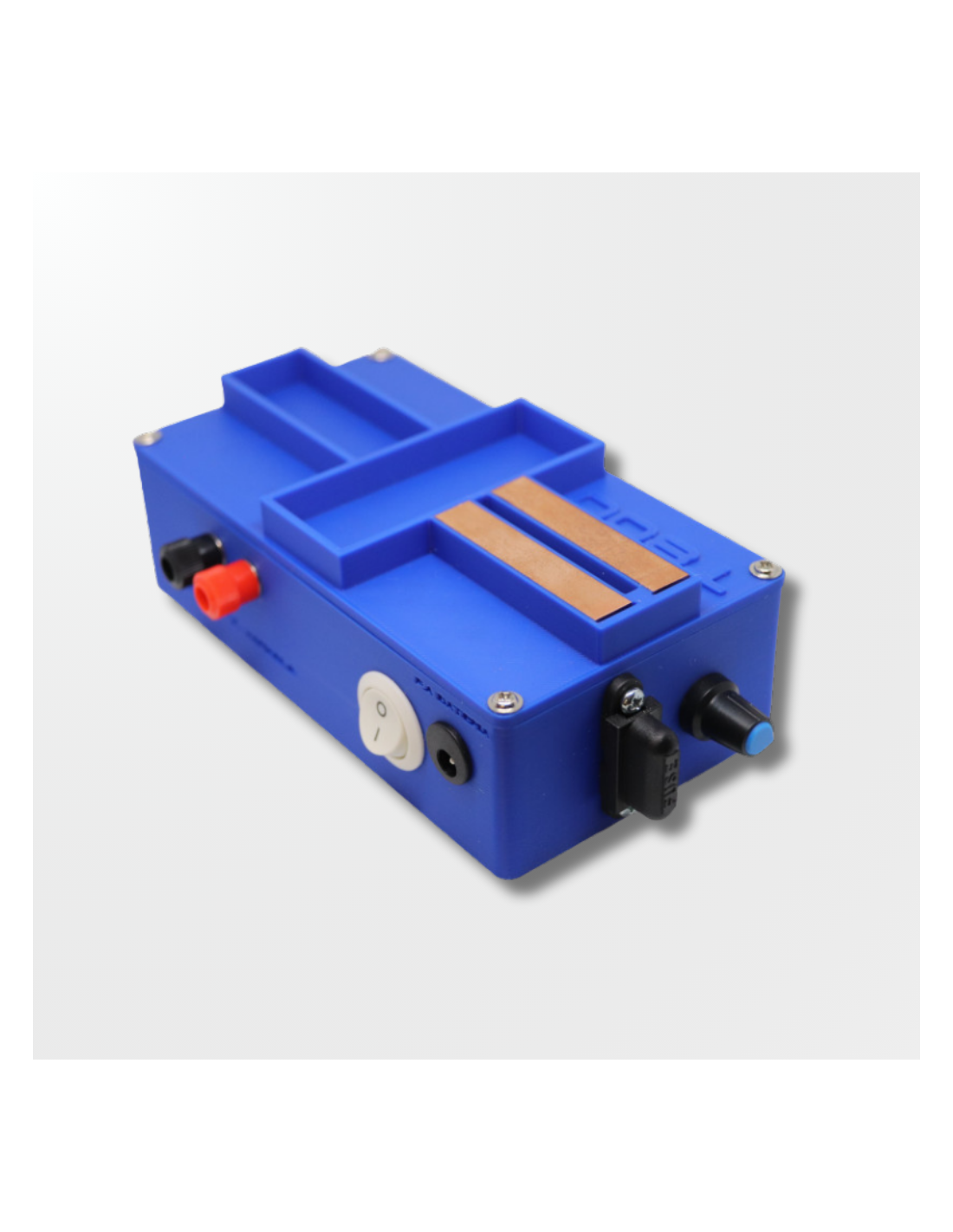

The T800 Motor Break-in Station with Transformer (T870023): uncompromising motor test bench

When the break-in of a motor cannot afford interruptions or voltage drops, mains transformer power makes the difference. The T800 Motor Break-in Station is designed to become the centre of any serious preparation bench, eliminating the variable of autonomy and focusing on what matters: the precise seating of the braids and the balancing of the transmission.

Main Features

• Mains transformer power supply: constant and uninterrupted power flow, ideal for prolonged break-in sessions.

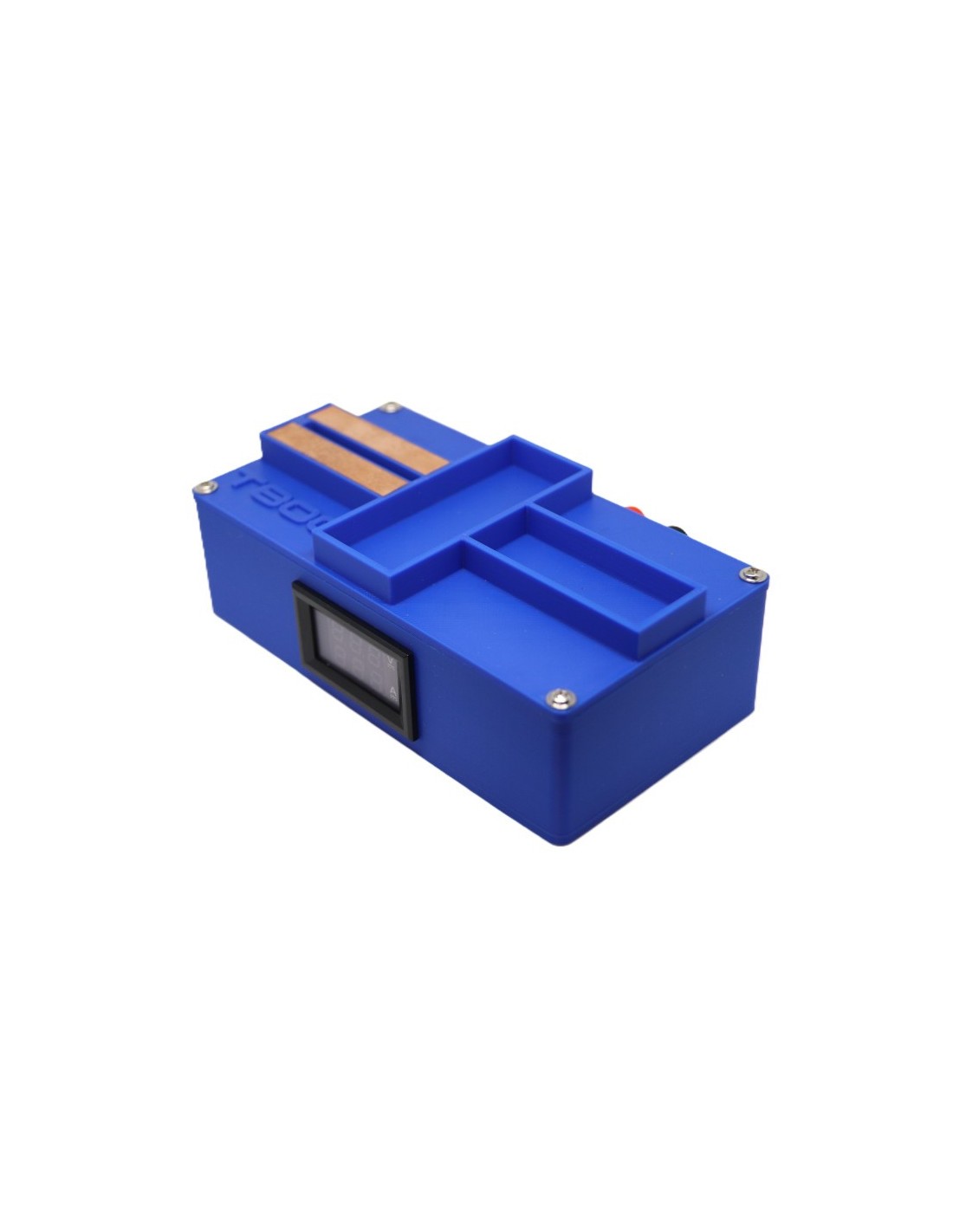

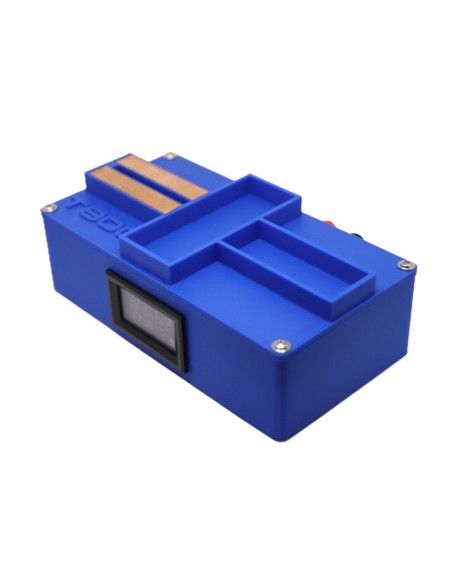

• Backlit display: real-time reading of voltage and current consumption to instantly detect any mechanical anomalies.
• Adjustable 4 mm banana outputs from 0 to 12 V, for precise voltage adjustment according to the motor and break-in phase.
• Fixed 4 mm banana outputs at 12 V.
• USB and USB-C outputs at 5 V to power additional accessories.
• Polarity selector: allows reversing the rotation direction without disconnecting the motor, speeding up the break-in process in both directions.
• Integrated fuse and illuminated main switch for greater safety and control in each session.
• Compatibility: suitable for 1/32 and 1/24 scale motors.

Behaviour and Performance on the Preparation Bench

Direct mains power ensures that the voltage delivered to the motor is always what the display indicates, without the fluctuations that can occur with lower quality power sources. This is especially relevant in technical break-ins where a uniform seating of the braids is sought: any voltage spike or drop can alter the process and mask the motor's actual behaviour.

The polarity selector is one of the most valued elements in the daily workshop: being able to run the motor in both directions immediately, without manipulating the wiring, saves time and reduces the risk of errors. The digital display, for its part, acts as an indicator of the motor's health: an anomalous consumption in a certain voltage range can reveal problems in the armature, bearings, or the transmission itself before the car reaches the track.

Modularity with the T800 Range

The Motor Break-in Station is compatible with the expansion accessories of the T800 range, such as the four-motor coupling adapter, allowing it to be converted into a modular system capable of running multiple motors simultaneously. A significant advantage for clubs, tuners, or any enthusiast with several cars in preparation.

Ideal for…

• Slot tuners and mechanics who need a fixed and reliable break-in station.
• Clubs with several cars in simultaneous preparation.
• Competition enthusiasts in 1/32 and 1/24 scales looking to maximise every tenth in motor seating.
• Any workshop bench where battery autonomy is a limiting factor.

Considerations

As it is a fixed power unit connected to the mains, its use is intended for the workshop or club, not for the track suitcase. If portability is needed, the T800 range has other references aimed at that use. To get the most out of the modular system, it is advisable to check compatibility with the couplings of the same range before expanding the installation.

Frequently Asked Questions

What scales does this break-in station support?

It is designed for 1/32 and 1/24 scale motors, the most common in competitive and amateur slot racing.

Can I run multiple motors at once?

Yes, as long as you incorporate the four-motor coupling adapter from the T800 range, compatible with this unit. The base has sufficient outputs to power the expansion system.

What advantage does transformer power have over a battery or portable power supply?

The mains transformer provides a completely stable voltage throughout the session, without progressive degradation. This is key for long technical break-ins where any voltage variation can affect the final result of the braids' seating.

Does the polarity selector require turning off the equipment before use?

The selector is designed to reverse the rotation direction directly, facilitating break-in in both directions without the need to disconnect the motor or manipulate the wiring.

What does the digital display show exactly?

The backlit display indicates in real-time the output voltage and current consumption of the connected motor, allowing the detection of mechanical anomalies — such as a faulty bearing or excessive friction in the transmission — before mounting the motor in the car.

Is the transformer included in the box?

Yes, the mains transformer is part of the product content under reference T870023.

The T800 Motor Break-in Station with transformer (ref. T870023) is a professional-grade, mains-powered bench tool for slot car motor preparation in 1/32 and 1/24 scales. Featuring a backlit digital display for real-time voltage and current monitoring, adjustable 4 mm banana outputs (0–12 V), fixed 12 V outputs, USB and USB-C 5 V ports, a polarity reversal switch and integrated fuse protection, it delivers stable, uninterrupted power for extended break-in sessions. Fully compatible with T800 range accessories, including the four-motor coupling adapter, making it the ideal modular workstation for clubs, professional tuners and serious slot racing enthusiasts.
