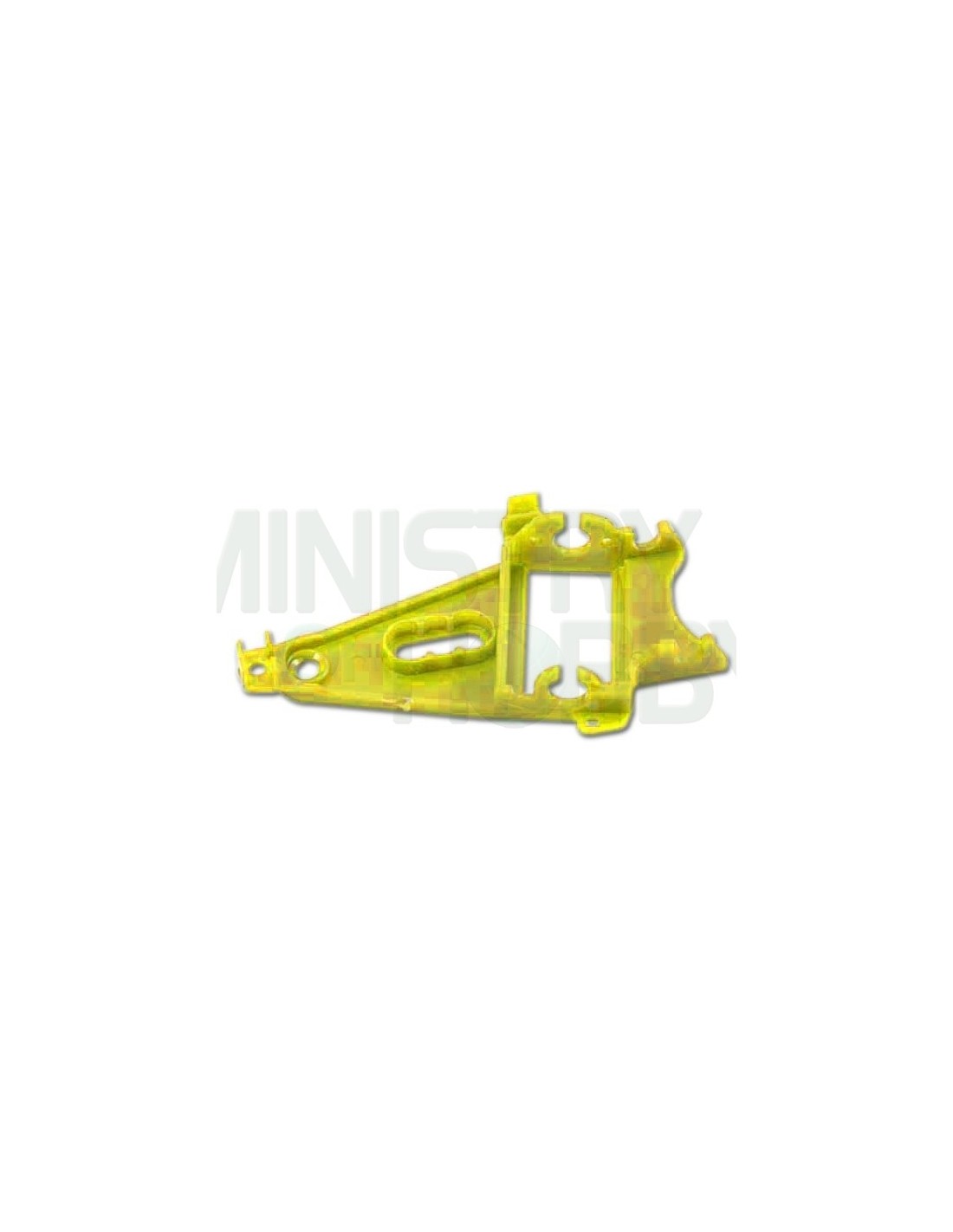

Yellow extralight triangular cradle for angled motor

The NSR yellow extralight triangular anglewinder motor pod: lightness and precision where it matters most

The reference NSR1255 is the triangular motor pod from NSR specifically designed for anglewinder configurations, meaning the motor is positioned at an angle relative to the rear axle. This geometry allows for optimised mass distribution within the chassis and is one of the most common configurations in slot racing competition cars.

Main features

• Configuration: anglewinder (motor at an angle relative to the rear axle).
• Colour: yellow, extralight version, the lightest option within NSR's triangular motor pod range.
• Reference: NSR1255.
• Manufactured with the level of tolerances that characterises NSR in its competition spare parts.

Function and performance

The motor pod is the element that secures and positions the motor within the chassis. In an anglewinder configuration, the correct alignment of the motor pod is crucial for the transmission to operate without play or unnecessary tension, which directly affects the smoothness of operation and the durability of the drivetrain.

The extralight version from NSR prioritises weight reduction, a critical factor in competition categories where every tenth of a gram counts. By reducing unsprung mass in the chassis, a more agile response of the assembly is favoured.

Compatibility and installation

This motor pod is designed for NSR chassis compatible with anglewinder configuration. Before purchasing, ensure that your chassis supports this layout and that the motor you intend to install fits with the geometry of the NSR1255. NSR offers a wide catalogue of spare parts and motor pods in different versions (colours and weights), making it easier to fine-tune the setup according to your championship regulations or driving preferences.

Usage recommendations

• Check the fit of the motor in the pod before permanently securing it: there should be no lateral play or excessive tension.
• In anglewinder installations, pay attention to the alignment of the crown gear and pinion after installing the pod to avoid premature wear.
• The extralight version is ideal for competition classes with minimum weight restrictions; for recreational use or on bumpy tracks, a stiffer version may offer greater durability.

Frequently asked questions

What is the difference between the extralight version and other triangular motor pods from NSR?

The main difference is weight. NSR manufactures triangular motor pods in different versions depending on the material or thickness used. The extralight version is the lightest, designed for competition where the goal is to reduce chassis mass to the maximum allowed by the regulations.

What is an anglewinder setup?

In an anglewinder, the motor is positioned at an angle relative to the rear axle, unlike a sidewinder (transverse motor, parallel to the axle) and an inline (longitudinal motor, perpendicular to the axle). The anglewinder is a very popular intermediate solution in slot racing due to its balance between centre of gravity and transmission ease.

Is this motor pod compatible with any NSR chassis?

Not necessarily. NSR has several chassis with different geometries. Check the technical specifications of your chassis or contact us to confirm that the NSR1255 is the correct motor pod for your chassis and motor combination.

Does the yellow colour have any technical significance in NSR motor pods?

In the NSR spare parts range, the colour typically identifies the version or the rigidity/weight level of the component. Yellow corresponds to the extralight version. Always check the numerical reference in addition to the colour to ensure you select the correct component.

Do I need special tools to install this motor pod?

The installation does not require special tools beyond the usual ones for slot preparation (precision screwdrivers, Allen key depending on the chassis fastening system). It is advisable to have a caliper to verify alignments after installation.

The NSR1255 is a triangular motor pod designed for anglewinder configurations, available in yellow extralight version. A precise and lightweight component for slot car racing and competitive club use, compatible with NSR chassis systems. Essential for builders looking to fine-tune weight distribution and drivetrain alignment in anglewinder slot cars.
