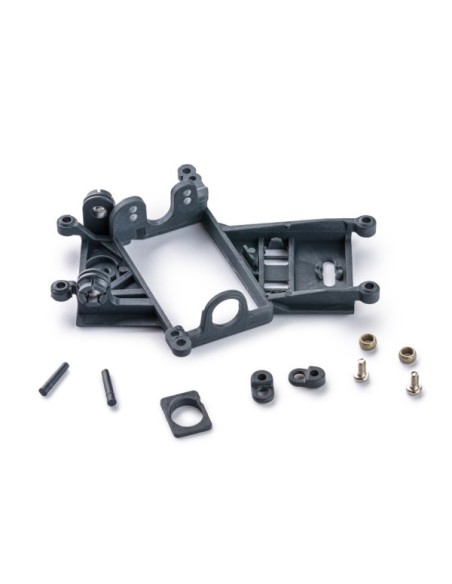

Angewinder Motor Mount Offset 0.5mm Hard

Precision in every tenth: the Slot.it Hard Anglewinder Offset 0.5 mm Mount

Within the Anglewinder spare parts catalogue from Slot.it, this hard motor mount with a 0.5 mm offset addresses a very specific need: to precisely adjust the lateral position of the motor to modify the behaviour of the mechanical assembly without touching the chassis. An apparently small change that can make a difference in competition.

Function and performance

The mount acts as a fixing and positioning element for the motor in Anglewinder configuration — that is, with the motor positioned at an angle to the rear axle. The 0.5 mm offset laterally displaces the motor from the neutral position, allowing for modifications to mass distribution and the contact point of the transmission.

The hard version of the mount implies a material with less flexibility, resulting in a more direct power transmission and a more precise response, especially valued on fast circuits or with setups aimed at top speed.

Compatibility

This mount is designed for the Anglewinder chassis in the Slot.it range at 1/32 scale, compatible with Sport track systems (Scaleauto, Slot.it). Check the technical specifications of your chassis to confirm that the 0.5 mm offset is suitable for your transmission setup before installation.

Installation and preparation

• Carefully remove the original motor mount from the chassis without forcing the anchors.
• Check the condition of the pinion and crown gear before reinstalling with the new mount: a different offset may require a backlash adjustment.
• Adjust the braid tension after installation to ensure optimal contact.
• Always perform a few break-in laps at low power before increasing the intensity.

Common errors

• Not checking the gear after changing the offset: the lateral displacement of the motor directly affects the pinion-crown gear engagement. Incorrect backlash leads to premature wear and loss of performance.
• Confusing hard and soft versions: the choice depends on driving style and the circuit. The hard version is not universally better; on very technical circuits, the soft version may offer advantages in traction.
• Ignoring accumulated offset: if you are already using an offset on the crown gear or pinion, add it to that of the mount to avoid exceeding the total displacement.

Frequently asked questions

What is the difference between the hard and soft mounts?

The hard mount has less flexibility, which favours a more direct power transmission and reduces vibrations on fast circuits. The soft mount better absorbs track irregularities and can improve traction on more technical layouts.

What is the purpose of the 0.5 mm offset?

The offset laterally displaces the position of the motor relative to the rear axle. With 0.5 mm, the geometry of the transmission is slightly modified, which can influence weight distribution and the engagement point of the pinion with the crown gear.

Is this mount compatible with all Slot.it Anglewinder chassis?

It is designed for the Slot.it 1/32 Anglewinder chassis range. We recommend confirming exact compatibility by consulting the technical documentation of your specific chassis before installation.

Do I need to change the crown gear or pinion when installing this mount?

Not necessarily, but you should check and adjust the backlash (clearance between pinion and crown gear) after installation, as the new offset may alter the distance between both gears.

In what type of circuit is the difference with this mount most noticeable?

The impact is more perceptible on fast circuits with few slow corners, where the direct transmission of the hard version provides better acceleration response. On technical layouts with many chicanes, the choice between hard and soft will depend more on each driver's style.

The Slot.it SICH60B1 is a hard Anglewinder motor mount with 0.5 mm offset, designed for 1/32 scale slot car chassis in Sport track systems. This precision spare part allows fine-tuning of motor position and transmission geometry, making it a key component for competitive slot car preparation and performance tuning.
