Red EVO Triangular Stand

The NSR EVO Triangular Motor Pod: Geometry and Precision for Transmission

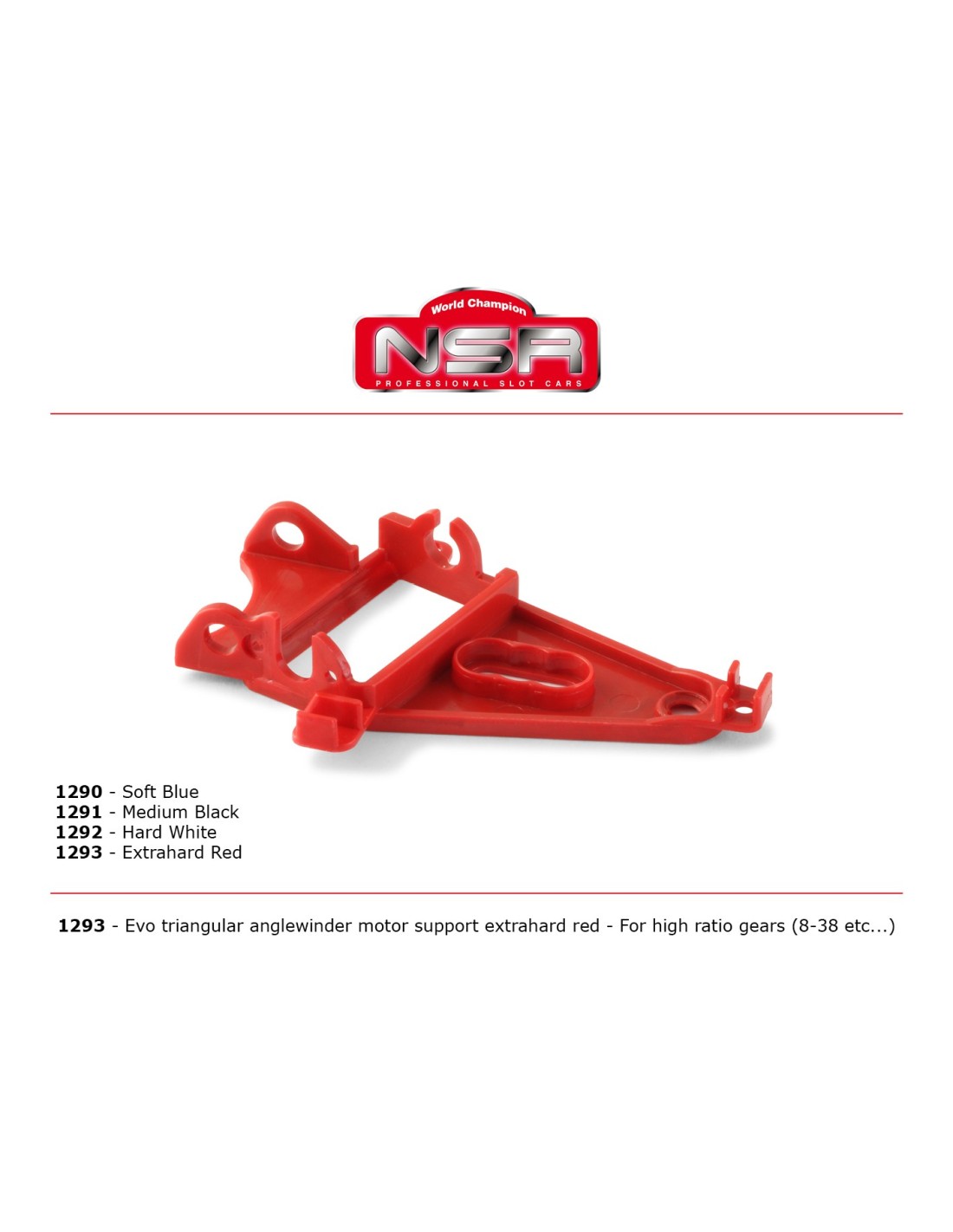

The Red EVO Triangular Pod (NSR1293) is one of those components that makes a difference when working on the chassis with precision. NSR specifically designs it to house the motor and secure the drive shaft with the appropriate geometry, ensuring that the powertrain operates without play and with the alignment demanded by serious competition.

Function and Performance

The triangular pod is the chassis element responsible for holding the motor and defining the distance and angle between the pinion and crown gear. A well-designed pod ensures that the meshing is precise, that there are no energy losses due to misalignment, and that the transmission operates without parasitic vibrations that could penalise track performance.

This NSR EVO unit, identified by its red finish, is designed to work with the following gear ratios:

• 8-tooth pinion — 39-tooth crown gear
• 9-tooth pinion — 36-tooth crown gear

The indicated range of ratios directly guides the preparer on which combinations of pinion and crown gear are compatible with this specific pod, avoiding assembly errors and ensuring that the meshing operates at its optimal point.

Compatibility and Installation

Like the rest of the components in the NSR EVO range, this pod is designed to integrate into the chassis of the brand that use this triangular mounting system. Before installation, it is advisable to verify that the receiving chassis accommodates this pod format and that the chosen pinion and crown gear combination falls within the specified range (8-39 to 9-36).

The red colour is not merely aesthetic: in the NSR range, colour coding facilitates quick identification of the stiffness or specific characteristics of each variant, which is very practical when working with multiple chassis or competing in clubs where preparation time is limited.

Considerations

• Check compatibility with your NSR chassis before installation.
• Only use the indicated gear ratios (8-tooth pinion with 39-tooth crown gear or 9-tooth pinion with 36-tooth crown gear) to ensure correct meshing.
• A clean installation, without lateral play in the motor, maximises power transmission and reduces wear on the crown gear and pinion.

Frequently Asked Questions

What gear ratios does this pod support?

It is designed for ratios between 8-39 (8-tooth pinion / 39-tooth crown gear) and 9-36 (9-tooth pinion / 36-tooth crown gear). Outside of this range, the meshing may not be correct.

Why are there pods of different colours in the NSR range?

NSR uses colour coding to differentiate variants with different characteristics or compatibility ranges. Always consult the full reference to ensure you choose the correct pod for your setup.

Can this pod be installed on chassis from other brands?

The EVO triangular pod is designed for NSR chassis that use this system. Compatibility with chassis from other brands is not verified and is not recommended without prior checking.

What tools are needed for installation?

The usual installation of pods on slot chassis requires precision screwdrivers and, depending on the chassis, a small Allen key. It is recommended to work with the chassis well supported and to check the motor alignment before tightening definitively.

The NSR1293 EVO Triangular Motor Pod in red is a precision slot car component engineered for transmission ratios from 8-39 to 9-36. Designed for NSR EVO chassis, it ensures perfect gear mesh alignment, reduced vibration and optimal power transfer on the track. A must-have upgrade part for club racers and serious slot car enthusiasts looking to fine-tune their drivetrain setup.
