The NSR Blue EVO Triangular Pod: Fine Tuning for High Gear Ratio Setups

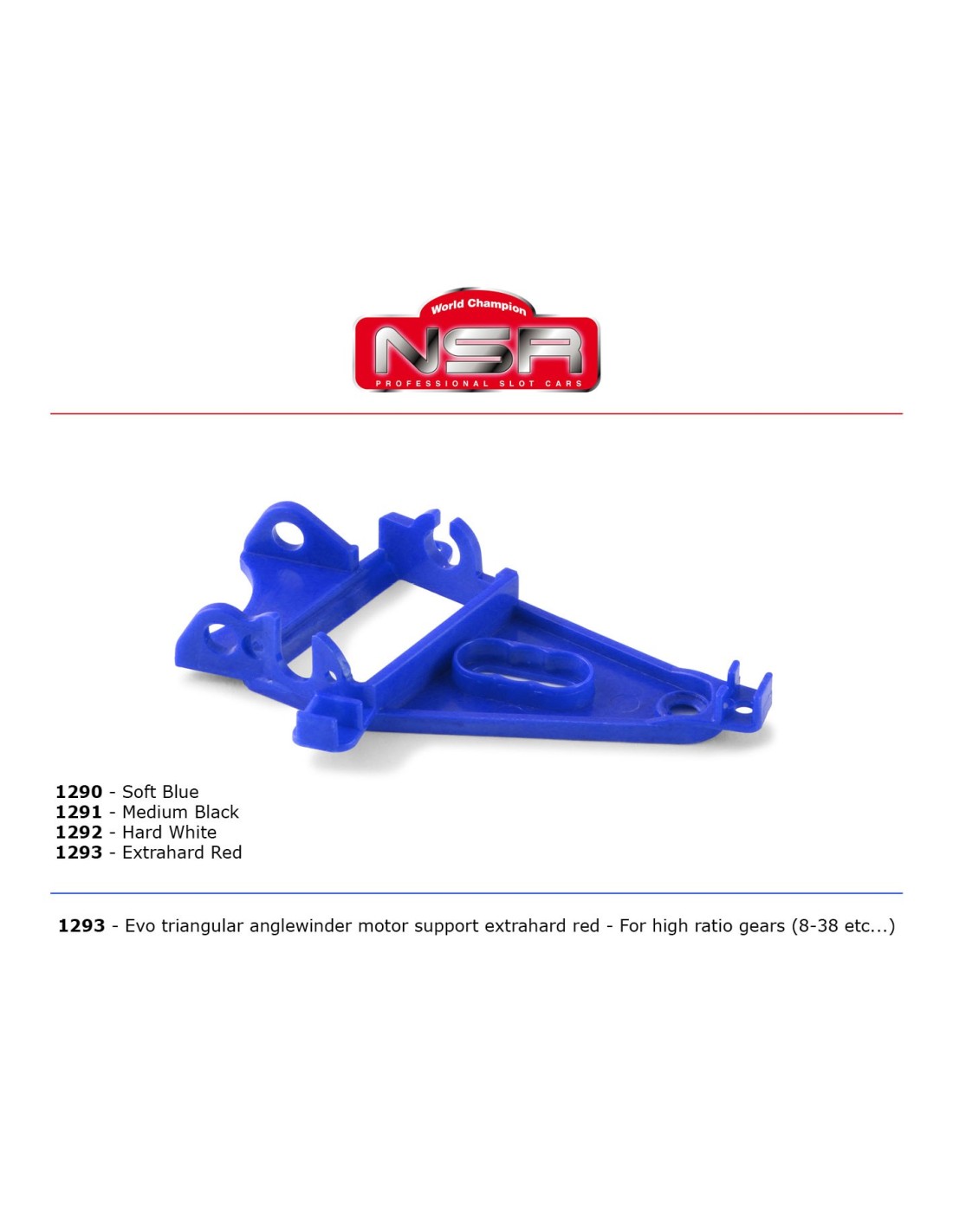

The Blue EVO Triangular Pod (ref. NSR1290) is a fundamental preparation piece within the NSR ecosystem. Designed in its soft version and aimed at High Gear Ratio configurations, it allows for gear ratios ranging from 8-39 to 9-36, a range intended for circuits and driving styles that demand higher torque and a more controlled power delivery.

Function and Performance

The triangular pod is the component that holds and positions the motor in relation to the rear axle, determining the alignment and proper meshing between pinion and crown gear. A pod in good condition — and correctly selected according to the gear ratio — is essential for:

• Ensuring smooth and backlash-free meshing between pinion and crown gear.
• Reducing premature wear on both gears.
• Maintaining a constant distance between the centres of the pinion and crown gear throughout the race.
• Minimising vibrations and noise in the drivetrain.

The soft version of this pod provides a slight absorption capacity that benefits performance on tracks with minor imperfections, helping the drivetrain maintain gear contact even in the face of small impacts or irregularities in the track.

Compatibility and Gear Ratios

This pod is designed for setups with High Gear Ratio, specifically in the range of 8-39 to 9-36. It is crucial to select the appropriate pod for the pinion and crown gear being used: a pod designed for a specific ratio ensures the correct centre distance and prevents the gear from being too tight or having excessive play.

Always consult the NSR compatibility chart to ensure that the combination of pinion, crown gear, and pod is correct for your setup.

Installation and Preparation

The installation process follows the NSR standard for triangular pods:

1. Remove the used pod from the chassis by loosening the securing screws.
2. Check the condition of the motor and axle before installing the new pod.
3. Place the Blue EVO pod ensuring that the motor is correctly seated in its housing.
4. Adjust the screws with the appropriate torque, without over-tightening to avoid deforming the part.
5. Manually verify the pinion-crown gear meshing before putting the car on the track.

Common Mistakes

• Mixing pods of different gear ratio ranges: each pod is calculated for a specific centre distance. Using a pod with the wrong ratio leads to poor meshing and accelerated wear.
• Not checking the gear play after installation: even if the pod is correct, it is always advisable to manually check that the meshing is neither too tight nor too loose.
• Reusing deformed or visibly worn pods: a pod in poor condition compromises the entire drivetrain. NSR offers these parts as low-cost consumables for replacement.

Frequently Asked Questions

What is the difference between the soft and hard NSR pods?

The soft version has a greater absorption capacity for minor irregularities, which can reduce vibrations in the drivetrain. The hard version offers greater rigidity, preferred in competition setups where maximum precision and consistency in meshing are sought.

Is this pod compatible with any NSR chassis?

The NSR1290 pod is designed for High Gear Ratio setups (8-39 to 9-36). Verify that your NSR chassis accepts the EVO triangular pod type and that the gear ratio you are using fits within that range before installation.

How often should I replace the pod?

It depends on usage. In club racing with frequent sessions, it is advisable to periodically check the pod for deformations or visible wear. Being an economical component, it is not worth risking poor meshing by not replacing it in time.

Does the blue colour indicate any specific technical feature?

Yes. NSR uses a colour coding system for its pods to quickly identify the version and hardness. Blue corresponds to the soft version within the EVO range, facilitating visual selection without needing to consult the reference each time.

Can I use this pod with motors from other brands mounted on NSR chassis?

The pod is designed for the NSR mounting standard. If the motor from another brand respects the same housing dimensions, it could be compatible, but NSR does not guarantee operation with motors outside its range. Always check the dimensions before installation.

The NSR1290 Triangular EVO Blue pod — soft version, High Gear Ratio — is a precision slot car replacement part designed for gear ratios from 8-39 to 9-36. A key component for any NSR slot car build, it ensures proper motor alignment, smooth pinion-to-crown meshing, and consistent drivetrain performance on the track. Ideal for club racers and hobbyists looking to fine-tune their NSR chassis setup.
