COMBI PLUS MONOBLOCK 32.5 RT4

Precision in every millimetre: the Sloting Plus Combi Plus Monoblock 32.5 RT4

When the transmission adjustment makes the difference between winning and losing, every component counts. The Combi Plus Monoblock SP053105 from Sloting Plus is a machined brass piece designed to integrate into the SC RT4 angular motor mount, allowing for a clean and precise setup of the drivetrain in competitive slot cars.

Features and specifications

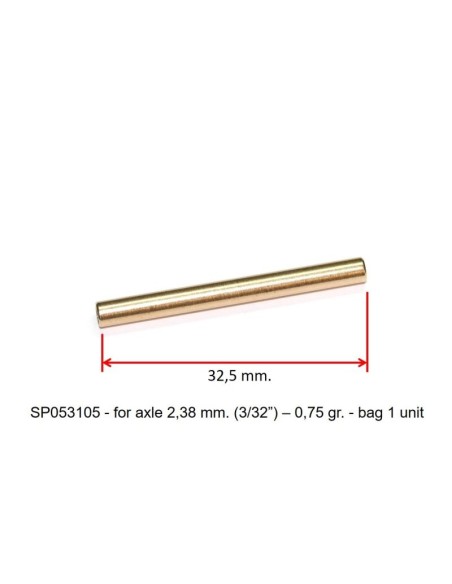

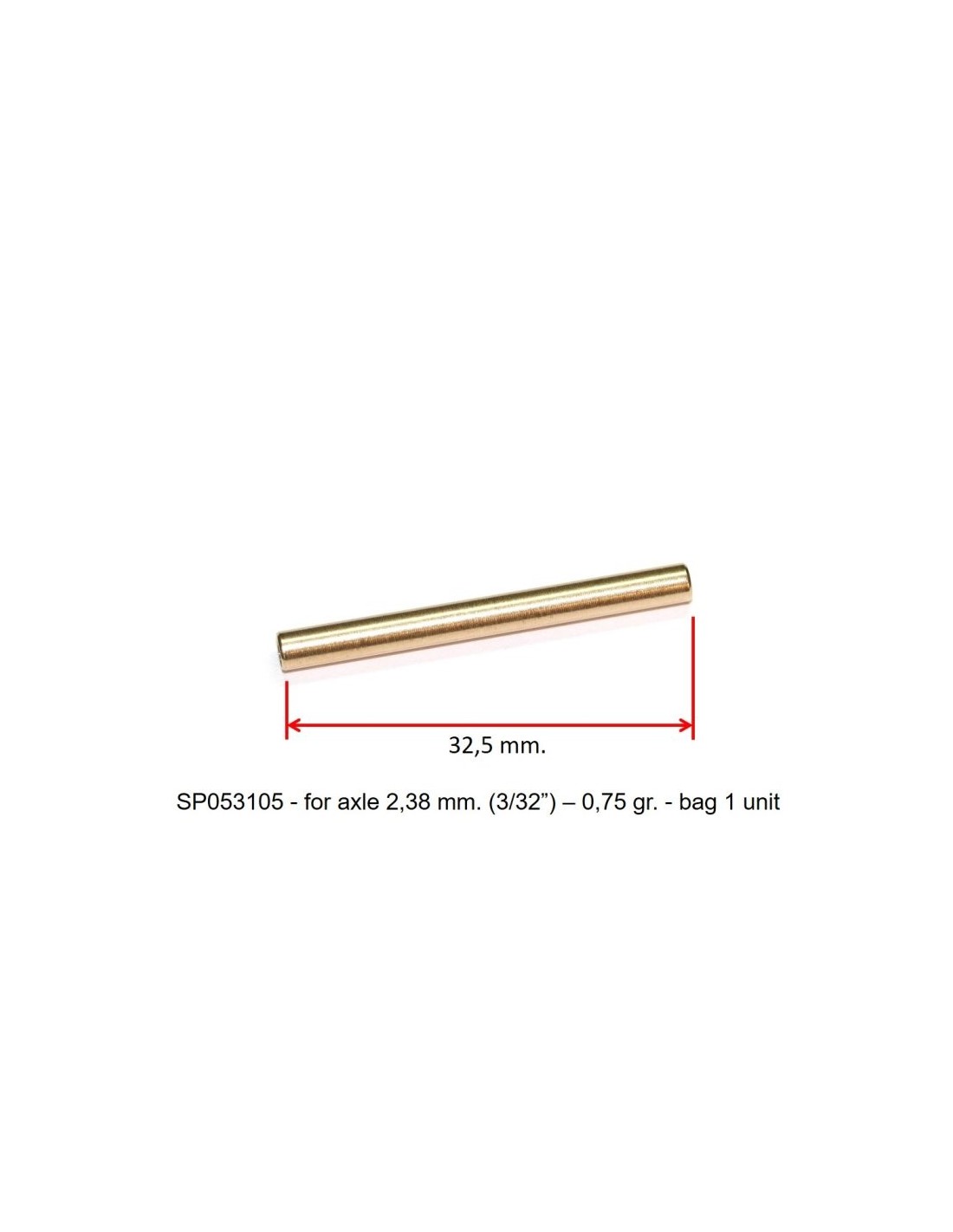

• Reference: SP053105
• Material: Brass
• Length: 32.5 mm
• For axle of: 2.38 mm (3/32'')

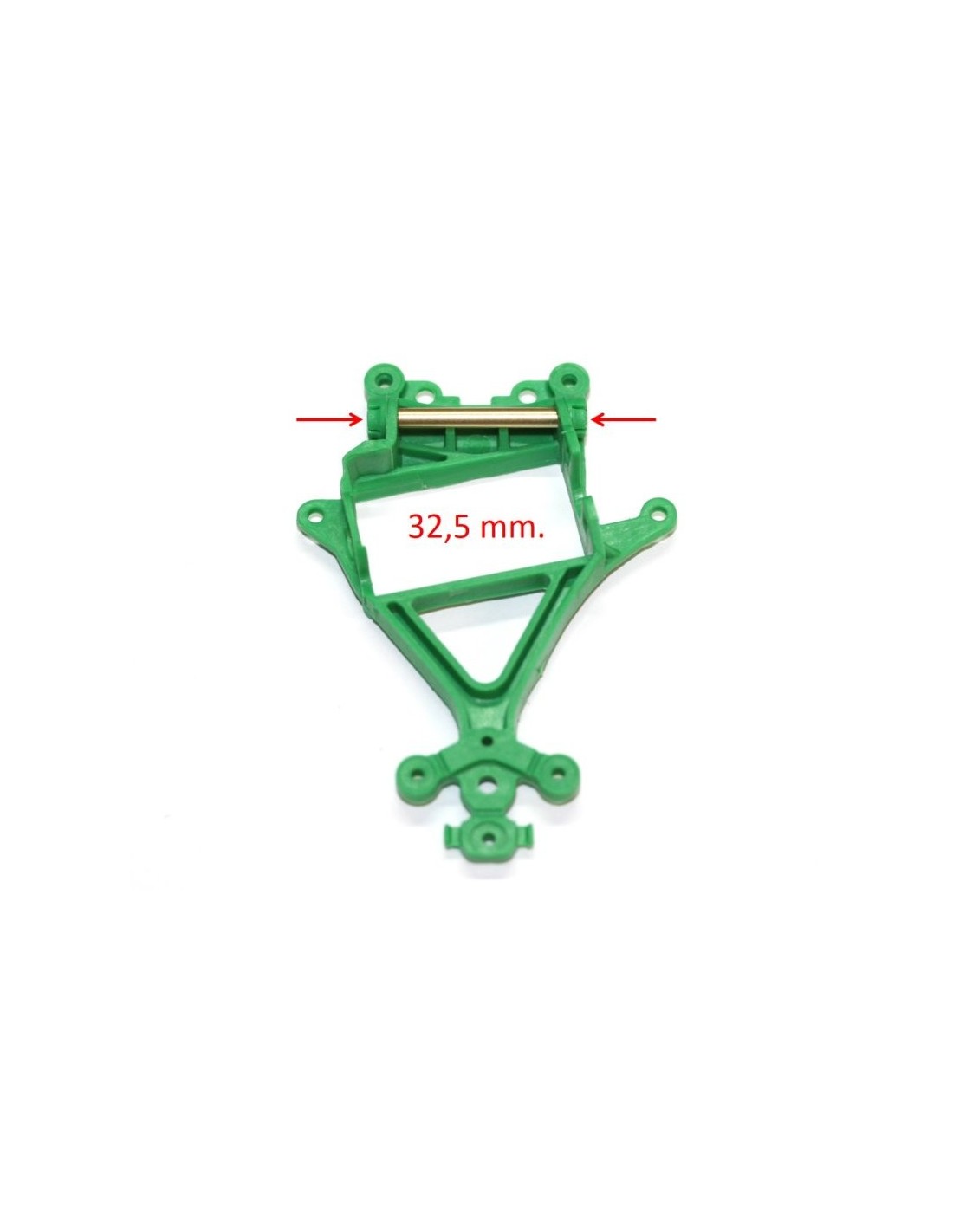

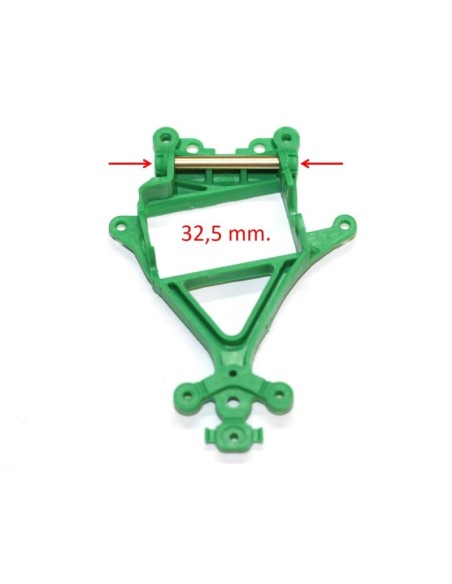

• Compatibility: SC RT4 angular motor mount (green), in any of its offset heights with ball joints
• Weight: 0.75 g
• Contents: Bag with 1 unit

Function and performance

The monoblock design eliminates intermediate joints in the transmission assembly, reducing play points and providing a more direct response between the motor and rear axle. Being made of brass, it combines mechanical strength with a low weight —0.75 g— which is particularly relevant in setups where mass balance is a factor to optimise.

Its length of 32.5 mm places it in a specific range designed for angular motor mount configurations: it is important to select the correct measurement before assembly to ensure the alignment of the assembly.

Compatibilities

This piece is designed to work with the SC RT4 angular motor mount (green) from Sloting Plus, being valid in any of the available offset positions that use ball joints. It is not guaranteed to be compatible with other mounts or systems other than those indicated.

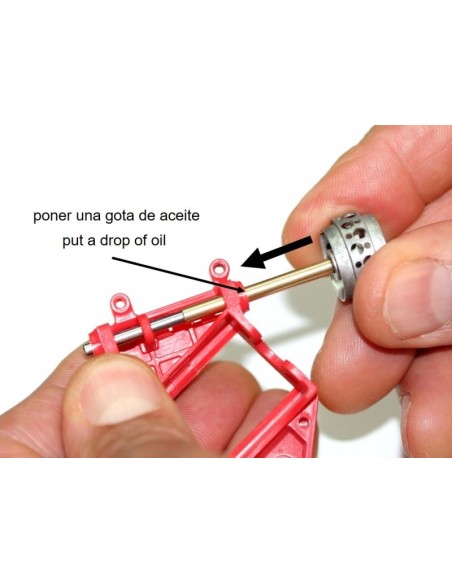

Assembly and preparation

Sloting Plus emphasises a key point: before starting the assembly, it is essential to read the adjustment tips and tricks that the brand provides for this type of component. Incorrect tightening or an incorrect assembly sequence can compromise the alignment of the axle and, consequently, the performance on track. Take your time with the initial adjustment: the precision achieved afterwards more than compensates for it.

To access the official technical documentation from Sloting Plus with the assembly instructions, consult the PDF that the brand makes available to the preparer.

Frequently asked questions

Which motor mount is this Combi Plus Monoblock compatible with?

It is compatible with the SC RT4 angular motor mount (green), in any of its offset heights that use ball joints.

What axle diameter is it designed for?

It is designed for 2.38 mm axles, equivalent to 3/32''.

What advantage does the monoblock design offer over other configurations?

As a single piece without intermediate joints, it reduces potential play in the transmission assembly, improving the response and mechanical reliability of the setup.

How many units does the bag contain?

The bag contains 1 unit.

Can I use it with other angular motor mounts from Sloting Plus?

The compatibility indicated by the manufacturer is exclusively with the SC RT4 (green) mount. For other mounts, consult the specifications of each model before proceeding with the assembly.

Is it necessary to follow any specific assembly instructions?

Yes. Sloting Plus expressly recommends reading their assembly tips and tricks before starting, as incorrect adjustment can affect the final performance of the assembly.

The Sloting Plus Combi Plus Monoblock 32.5 RT4 (SP053105) is a precision brass slot car component designed for the SC RT4 angular motor mount. Compatible with 3/32'' (2.38 mm) axles, it offers a clean and reliable transmission setup for competitive slot car preparation. Weighing just 0.75 g, it is an ideal choice for club racers and serious hobbyists seeking accurate, low-tolerance drivetrain assemblies.
