PHN-02 Electronic Controller for slot with voltage regulator

The DS PHN-02 Controller: Advanced Electronic Control for Serious Racers

Within the category of electronic controllers for slot cars, the DS PHN-02 (reference DS-3510) is a proposal designed for drivers who need more than just a simple throttle. With PWM technology, dual configuration for 1/32 and 1/24 scales, and an integrated voltage regulator, it offers an unusual level of customisation within its range.

Main Features

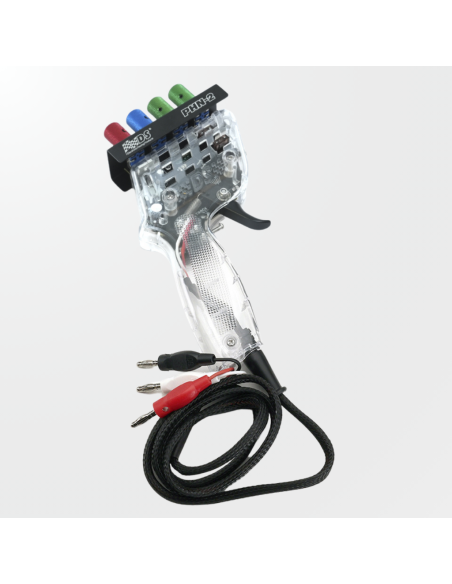

• High-precision magnetic trigger: no mechanical contact between parts, supported by ball bearings that eliminate friction and provide a clean, linear response with every fraction of movement.
• PWM Technology: pulse width modulation for smooth and controlled power delivery, especially useful in high-response motors.

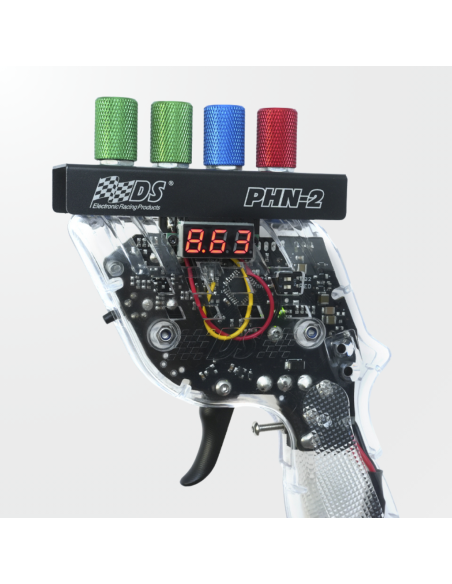

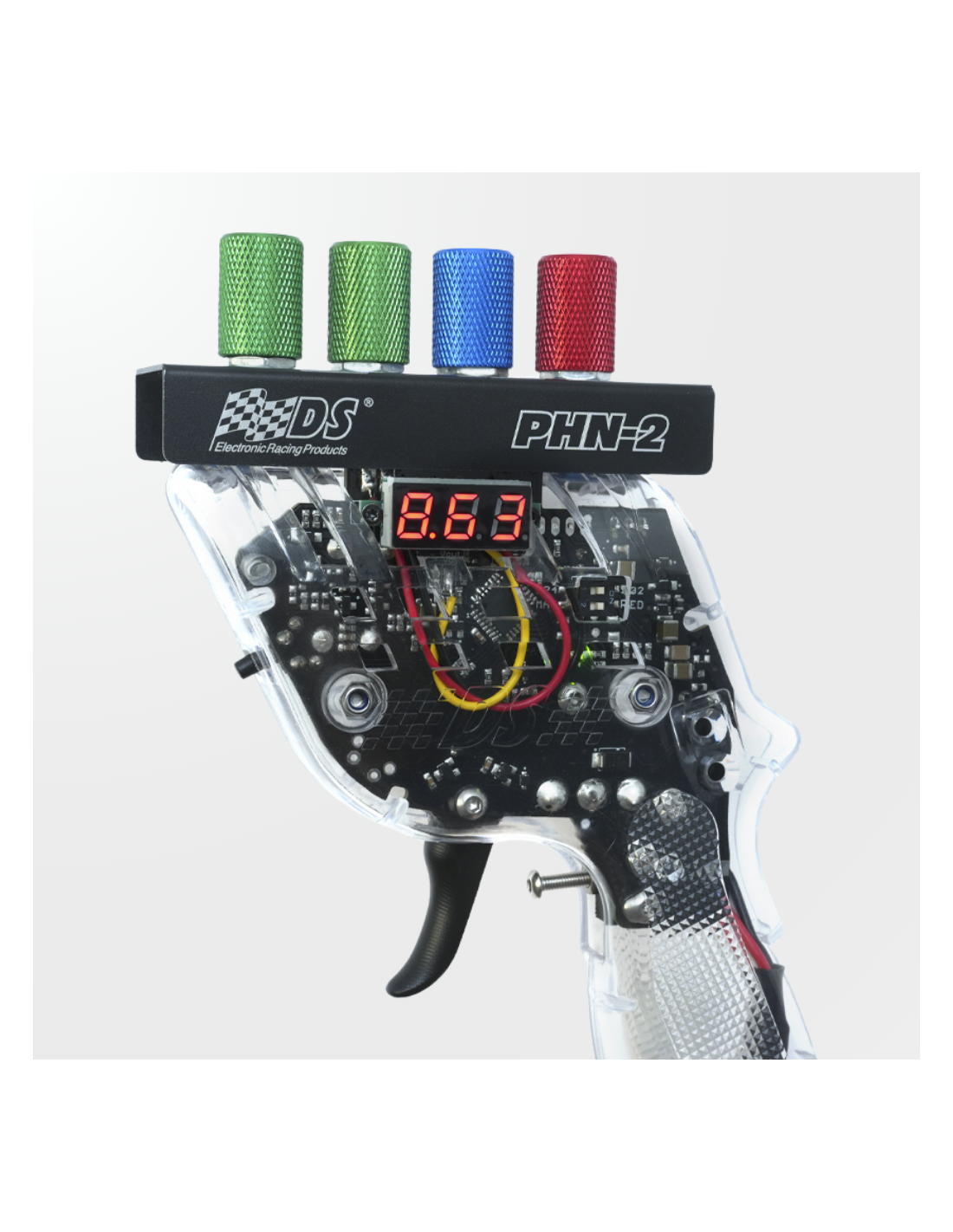

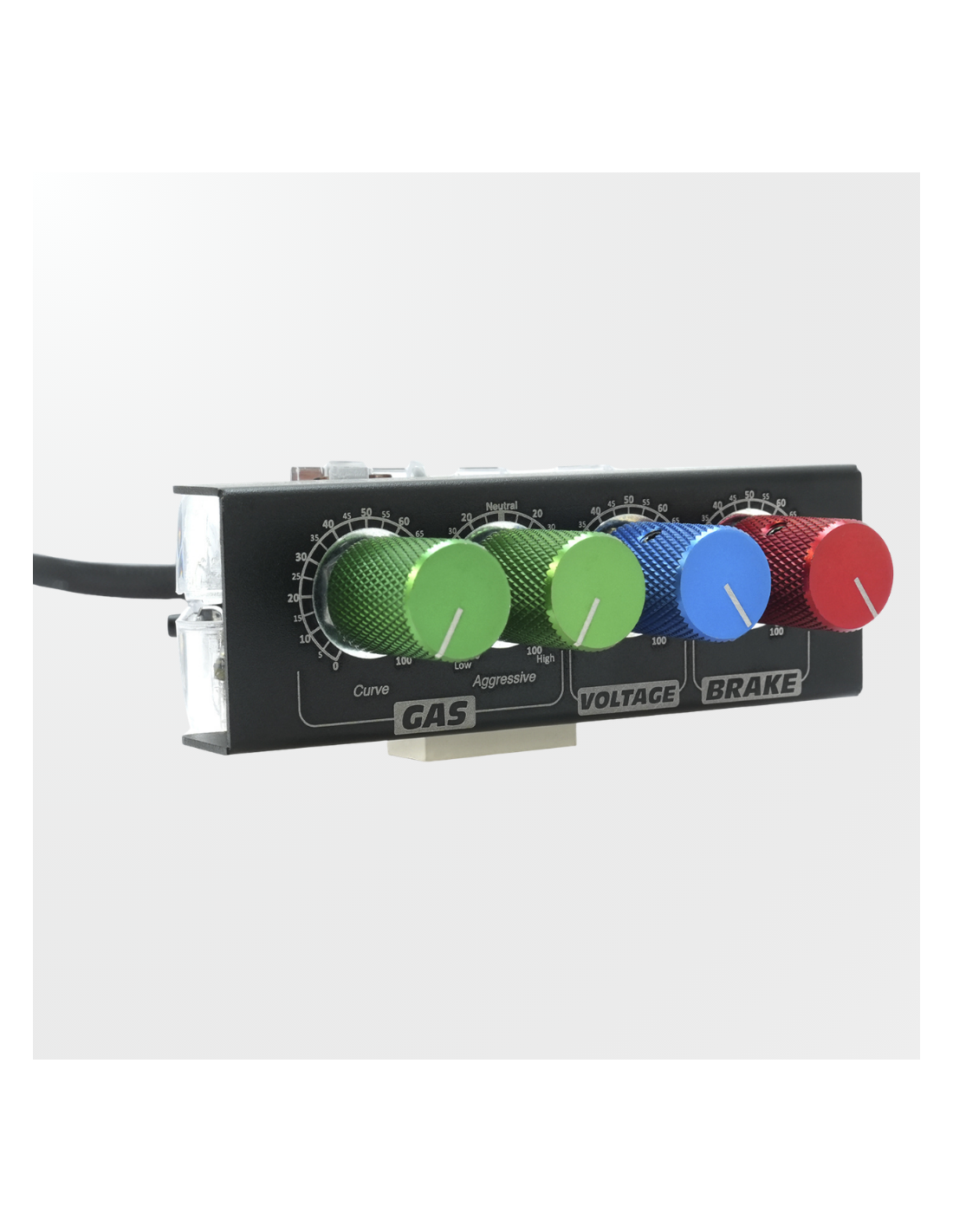

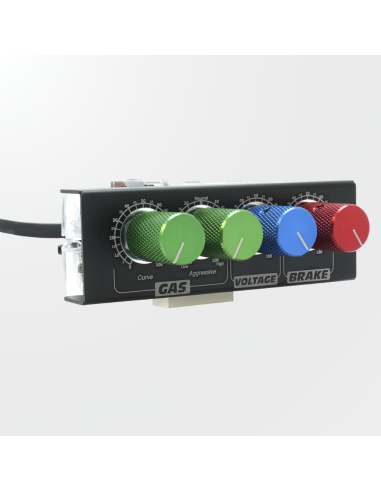

• Dual acceleration curve adjustment: independent selectors to define both the starting point of the curve and its aggressiveness, adaptable to the differences between 1/32 and 1/24 scales.
• Adjustable dynamic brake: fine-tuning potentiometer plus a side emergency brake button that instantly cuts communication with the track.
• Integrated voltage regulator: allows reducing the input by up to 70% of the available voltage, making the controller a versatile tool for technical tracks or high-power motors.
• Operating range: between 8 V and 22 V, compatible with most club and domestic power supplies.

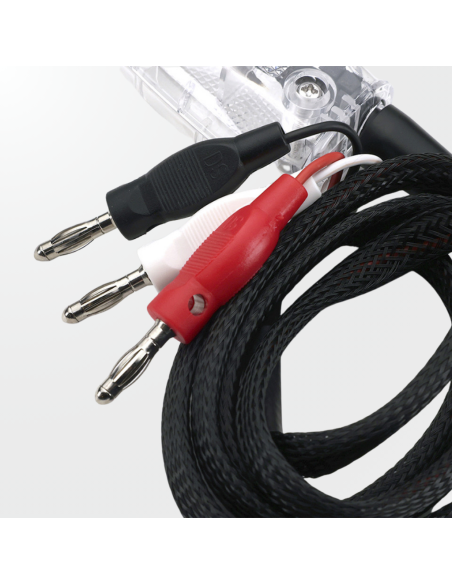

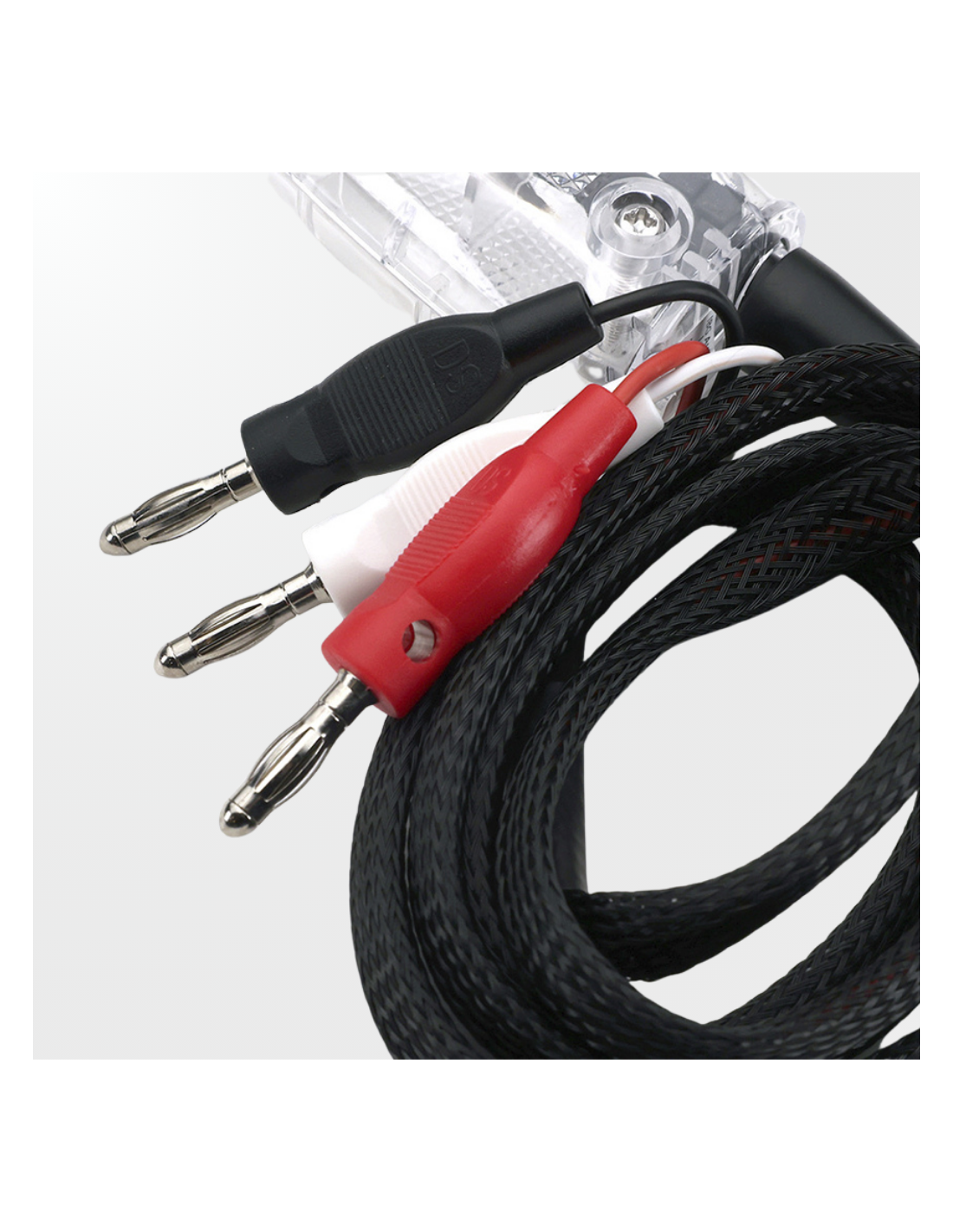

• Flexible cable with 4 mm bananas: standard connectivity, ready to use from the first moment.

Track Performance

The combination of the magnetic trigger with PWM management makes a noticeable difference from the first laps. Since it does not rely on mechanical pressure, the feel remains consistent throughout the controller's lifespan: there is no wear that alters the sensation or the response point. The dual curve adjustment allows for a smooth acceleration output for twisty layouts, or a more direct curve for fast tracks with few chicanes.

The voltage regulator is particularly valuable when combining a powerful motor with a high-voltage club power supply. Reducing the delivery to 70% in RED mode does not affect the quality of the signal; it only limits the power ceiling, which restores sensitivity to the trigger in situations where otherwise the car would be difficult to control.

The side emergency brake is a practical resource for safely stopping the car in the event of a track exit or when another driver's car blocks the track, preventing collisions and potential damage.

Ideal For

• Club racers competing in mixed categories of 1/32 and 1/24 who need a single controller adaptable to both.
• Enthusiasts looking to upgrade from basic controllers to real electronics without a disproportionate investment.
• Those using high-performance motors who need to tame the power on home circuits or technical tracks.
• Use in facilities with variable voltages, thanks to its wide range of 8 V to 22 V.

Considerations

When connecting the controller for the first time, it is advisable to adjust the voltage regulator before setting the acceleration curves: the base working point directly influences how the curve adjustment is perceived. Starting in FULL mode with the curve at the minimum aggressiveness and gradually increasing is the quickest way to find the optimal setting for each motor and track combination.

Frequently Asked Questions

Is it compatible with any slot track?

Yes. By connecting via standard 4 mm bananas and operating within a range of 8 V to 22 V, the PHN-02 is compatible with the main power supplies and track systems on the market, both in domestic and club setups.

What is the difference between FULL mode and RED mode on the voltage regulator?

In FULL mode, the controller delivers 100% of the available voltage from the power supply. In RED mode, it reduces that delivery to 70%, limiting the power ceiling and returning greater sensitivity to the trigger. It is useful with high-power motors or on tracks with many curves.

Does the dual curve adjustment work independently for 1/32 and 1/24?

The selectors allow for configuring both the base and aggressiveness of the acceleration curve, with specific positions optimised for each scale. Separate profiles are not stored: it is manually adjusted according to the category in which one will compete.

What exactly does the emergency brake consist of?

It is a side button that, when pressed, instantly cuts the electrical communication between the controller and the track, stopping the vehicle immediately. It is different from the brake adjustable via potentiometer, which acts during progressive deceleration in a race.

Does the magnetic trigger require maintenance or periodic calibration?

As there is no mechanical contact between the parts of the trigger, wear is virtually non-existent and does not require regular calibration. The ball bearings that support it ensure a constant response over time.

Can this controller be used with low-power domestic power supplies?

Yes, as long as the power supply delivers at least 8 V. Below that threshold, the controller does not operate within its design range, so optimal performance is not guaranteed.

The DS PHN-02 electronic slot car controller (ref. DS-3510) combines PWM technology, a magnetic trigger with ball bearings, dual power curve adjustment for 1/32 and 1/24 scale, dynamic brake with emergency button, and an integrated voltage regulator. Operating between 8V and 22V with standard 4mm banana connectors, it is a highly versatile electronic controller suited for club racing, high-performance motors, and demanding track layouts.
