SIDEWINDER 1:18TH COMBO

Power and control in micro format: the Castle Creations Sidewinder 1:18 combo

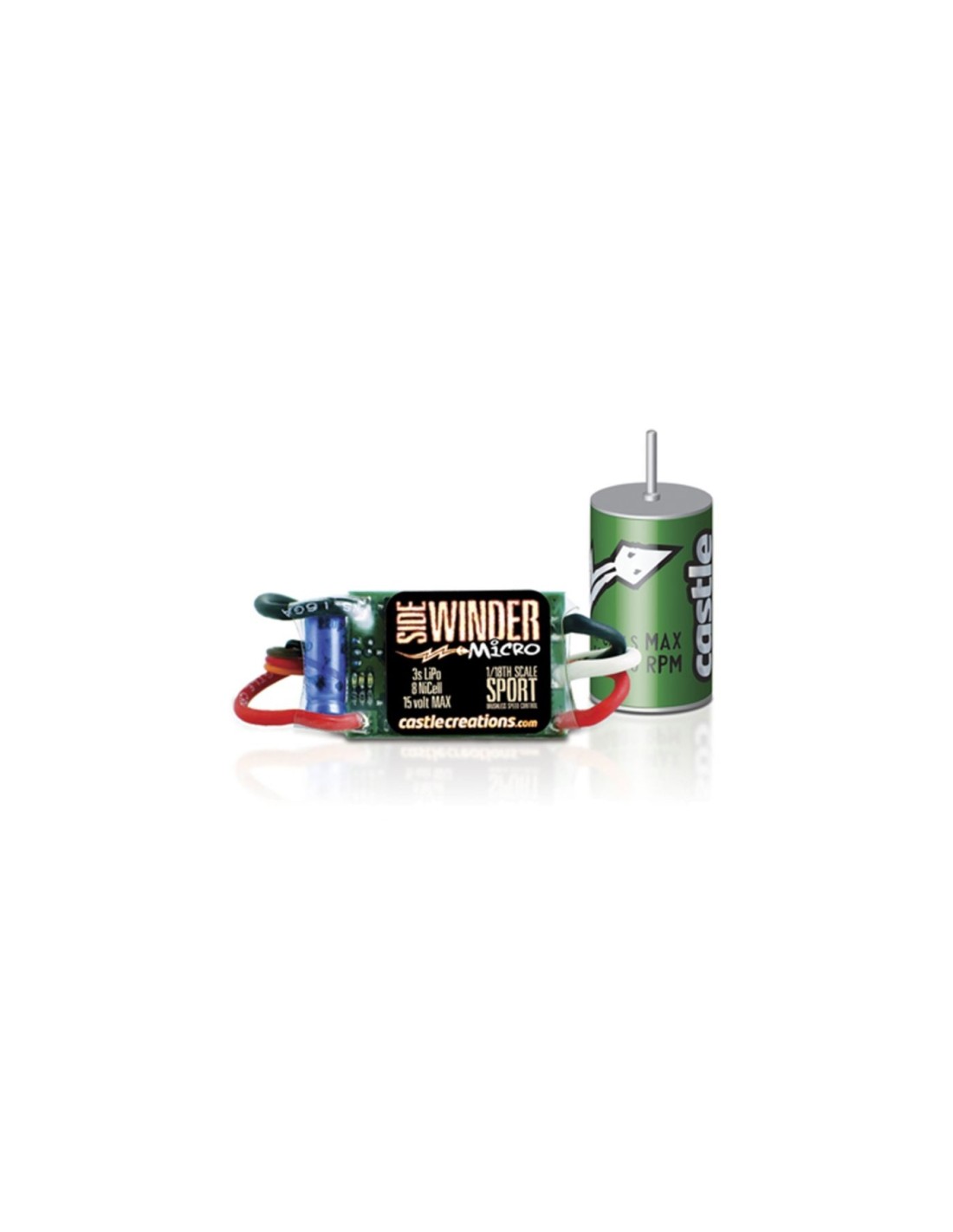

Castle Creations combines two components in this pack that complement each other perfectly: the Sidewinder Micro ESC electronic speed controller and the sensorless brushless motor 0808 5300KV. The result is a compact, capable, and well-tuned set for 1:18 scale applications, where efficient power management makes a difference.

Main features of the combo

• Sidewinder Micro ESC: speed controller specifically designed for micro scale, with state-of-the-art hardware and circuitry that represents a real leap in power management.
• 0808 sensorless brushless motor: 4-pole, 20 mm motor with a KV of 5300, brushless and sensorless, in an extremely compact format.
• Ultra smooth start: the Sidewinder Micro software is refined to provide a clean start progression, avoiding sudden jerks that penalise traction.
• Compatible with brushed and brushless motors: the Sidewinder Micro manages both types of motors, making it a truly versatile controller.
• Castle Link compatible: connection with the Castle Link adapter and a Windows PC to access additional advanced settings.

Programming options from the transmitter

Without the need for additional software, the Sidewinder Micro allows direct adjustment from the transmitter of the following parameters:

• Low battery voltage cut-off warning
• Brake strength
• Reverse mode with lock
• Timing adjustment
• Motor start power
• Punch control
• Reverse speed
• Motor type
• Throttle deadband

Advanced settings via Castle Link

For those who want to go further in tuning, the Sidewinder Micro is Castle Link compatible. When connected to a Windows PC, options such as the following are unlocked:

• Torque limit
• Speed limitation in forward and reverse
• Throttle response curve
• Brake response curve
• Arm time
• Saving configuration profiles
• Custom values for most available options

Who is this combo aimed at?

This pack is designed for 1:18 scale RC car drivers looking for a compact, well-integrated brushless propulsion system with real adjustment margin. Whether you are looking to improve an existing model or building from scratch, the Sidewinder 1:18 combo offers a solid and reliable electronic base.

Frequently asked questions

Does the Sidewinder Micro ESC work with brushed motors?

Yes, the Sidewinder Micro is compatible with both brushless and brushed motors, making it very versatile and allowing it to be reused in different configurations.

Is the Castle Link adapter necessary to program the speed controller?

No. Basic adjustments are made directly from the transmitter without the need for any additional accessories. The Castle Link is only necessary if you want to access advanced settings from the PC.

Does the included 0808 5300KV motor come with a sensor?

No, the 0808 motor included in this combo is a sensorless brushless motor, which simplifies installation as it does not require the additional sensor wire.

Is this combo compatible with any 1:18 RC car?

Compatibility depends on the available space in the chassis and the connectors used in each model. We recommend checking the dimensions of the motor and ESC before installation to ensure proper integration.

Can I save different adjustment profiles?

Yes, with the Castle Link software and the corresponding adapter, it is possible to save different configuration profiles on the PC and load them onto the ESC according to the needs of each session or track.

The Castle Creations Sidewinder 1:18 Combo pairs the Sidewinder Micro ESC with the compact 0808 5300KV 4-pole sensorless brushless motor, delivering smooth power delivery and extensive programmability for 1:18 scale RC cars. Compatible with both brushed and brushless motors, Castle Link ready, and fully adjustable via transmitter, this combo is an ideal choice for micro RC enthusiasts seeking reliable performance and precise tuning options.
