Sheet with gauge 0.8 mm

0.8 mm Precision for Competitors Who Race with Criteria

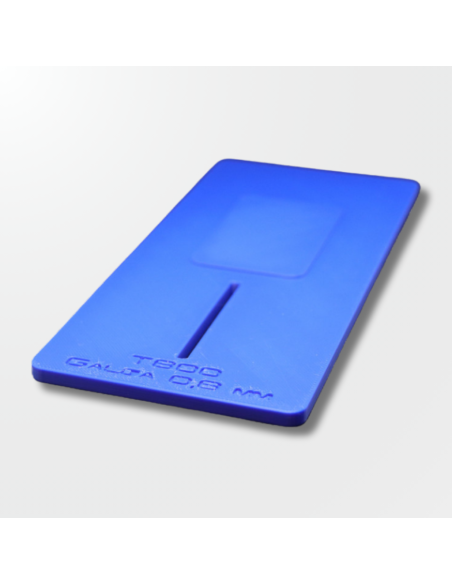

The T800 T870068 setup plate is a workshop tool designed for the adjustment and calibration of chassis in competition slot cars. Its defining feature is the integrated 0.8 mm gauge, a crucial measurement in categories where regulations require a minimum chassis clearance over the track or where the circuit geometry — with banked curves, bridges, or irregularities — makes it essential to ensure that the car does not accidentally contact the rail.

Features and Function

• Integrated 0.8 mm gauge: allows for direct and immediate verification of whether the chassis height meets the established parameter.
• Completely level surface: serves as a reference platform for placing the car and working with all four wheels in simultaneous contact with the surface.
• Repeatable measurements: manufacturing precision ensures that each check yields the same result, eliminating operator variables.
• Robust construction: designed for continuous use in the workshop, it withstands the workload of an active tuner.

What is the Purpose of the 0.8 mm Gauge?

In competitive slot racing, the chassis clearance relative to the track is not a minor parameter: a chassis that is too low scrapes on track joints or changes in elevation, causing unintended braking; too high raises the centre of gravity and penalises stability in corners. The 0.8 mm gauge of this setup plate allows for the establishment of that margin objectively: it is inserted under the chassis with the car positioned on the level surface, and it is checked whether it passes or not with the correct clearance. A simple, quick method with no room for subjective error.

This 0.8 mm value is particularly common in group categories or club regulations that seek to balance competitiveness without compromising reliability on circuits with some elevation. If your category works with different measurements, T800 offers plates with various gauges to cover the full range of standard sizes.

Assembly and Use in the Workshop

The workflow process is straightforward: place the car on the setup plate, check the height with the gauge, and if necessary, adjust the front axle, suspension, or chassis height until the correct value is reached. Repeating the check after each modification ensures that changes accumulate in a controlled manner and that the car goes onto the track with the exact configuration the tuner has decided upon.

Ideal for…

• Club tuners working under technical regulations with defined height measurements.
• Enthusiasts who want to replicate at home the level of preparation of the more serious competitors.
• Any slot workshop where the repeatability of measurements is a requirement, not an option.

Frequently Asked Questions

What is the difference between this setup plate and one with a gauge of a different size?

The only difference is the size of the integrated gauge. The function and method of use are identical; the choice of measurement depends on the technical regulations of the category in which you compete or the adjustment you seek for your car.

Can I use this setup plate with any scale or chassis?

Yes, as long as the dimensions of the chassis are greater than the surface of the setup plate. It is a reference measurement tool, not a specific tool for any particular chassis or scale.

Is special training required to use it?

No. The operating principle is very intuitive: place the car on the level plate and insert the gauge under the chassis to check the clearance. With minimal practice, any tuner, even a beginner, can master it in a few minutes.

How often should the setup plate be used during car preparation?

It is advisable to check the height after each modification that may affect the chassis position: changing tyres, adjusting the front axle, modifying the suspension, or replacing any structural part. On race days, a check before each heat is good practice.

Is this tool only for competition or is it also useful for recreational use?

It is perfectly valid for any level. If you are preparing your car for recreational sessions on your own or club circuit and want to ensure that it has no contact issues with the track, this setup plate provides that certainty quickly and objectively.

The T800 T870068 setup plate with integrated 0.8 mm tech gauge is a professional slot car tuning tool designed for chassis height calibration and competition preparation. Its precision-machined flat surface and built-in feeler gauge deliver repeatable, reliable measurements, making it the go-to instrument for club racers and serious builders who need to meet strict technical regulations. Compatible with any slot car chassis, it is a staple of any well-equipped slot car workshop.
