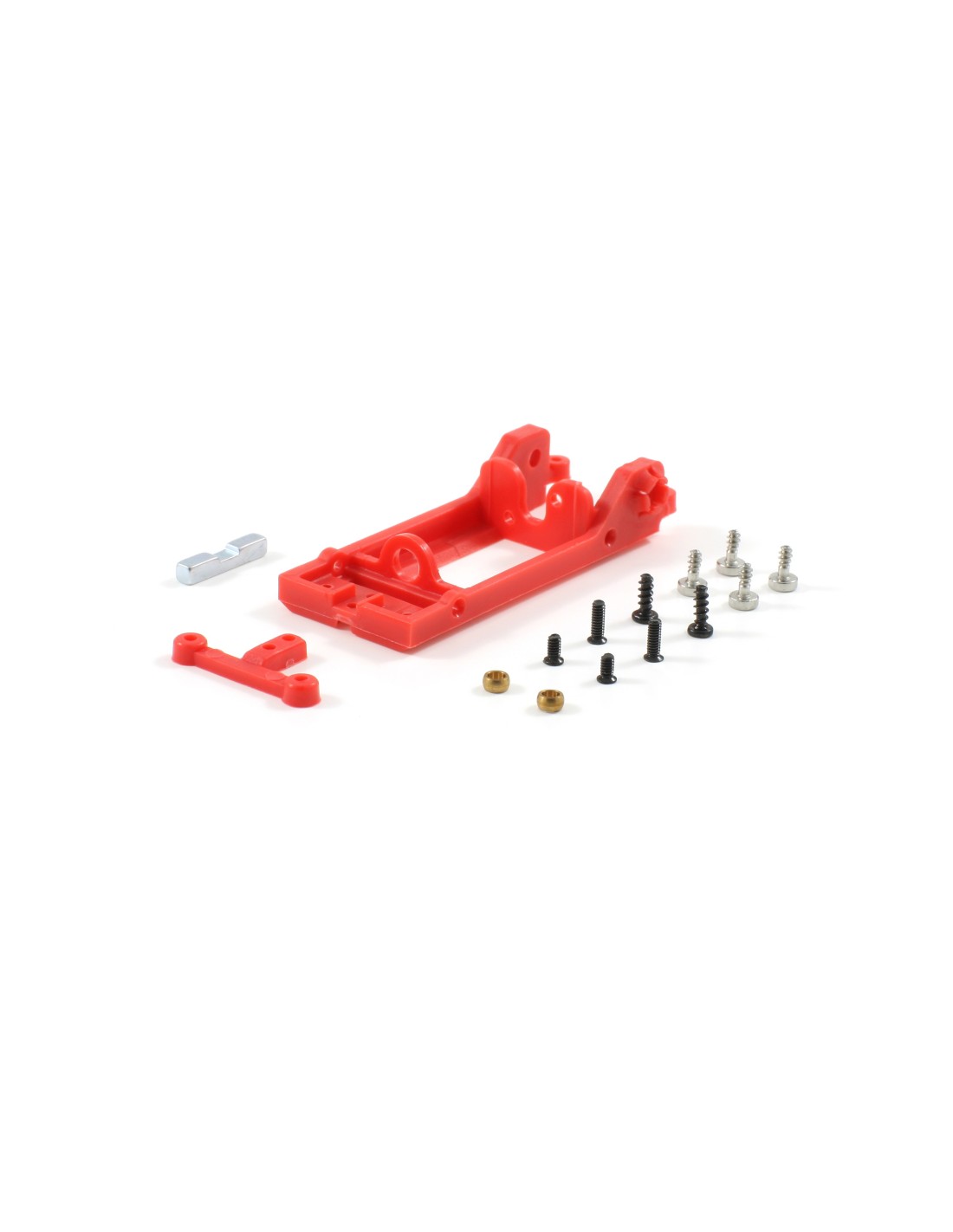

InLine Slim Rt3 motor mount

InLine Slim RT3 Pod: precision inline geometry with -0.5 mm offset

The InLine Slim RT3 motor mount from Scaleauto (reference SC-6527C) is a competition pod designed for inline setups, meaning the motor is aligned with the rear axle, which lowers the car's centre of gravity and improves cornering stability. The Extra-Hard variant —identified by its red finish— provides maximum structural rigidity, preventing unwanted flex that could compromise power transmission to the axle.

Main features

• Inline configuration: motor perpendicular to the rear axle, in longitudinal alignment with the car. Lower centre of gravity compared to other configurations.
• -0.5 mm offset: negative displacement that allows precise adjustment of the pinion position relative to the crown gear, optimising engagement and reducing transmission noise.
• Extra-Hard version (red): material of maximum hardness for high-demand environments, where the rigidity of the pod is crucial for consistency in lap times.
• Slim profile: low-profile design that facilitates integration into chassis with limited space.
• Manufacturer: Scaleauto. Compatibility with Scaleauto cars.

Recommended applications

This mount is designed for tuners and drivers who refine their inline setups in Scaleauto cars, especially in club categories where fine-tuning of the transmission can make hundredths of a second difference per lap. The -0.5 mm offset is particularly useful when working with pinion and crown gear combinations that require a slight negative adjustment to achieve the ideal engagement.

Behaviour and performance

The Extra-Hard version minimises pod deformation under load, resulting in a more direct and predictable transmission. In inline configuration, the motor's mass is centred and low, favouring the car's balance during braking and corner exit. Combined with a well-chosen offset, the result is a quieter mechanism with less wear on the transmission over a long session.

Installation and preparation

Before installing the pod, check that the selected pinion is compatible with the -0.5 mm offset and that the engagement with the crown gear falls within the range recommended by Scaleauto. An engagement that is too loose or too tight negates the advantage of the offset and can accelerate wear on both parts. Secure the pod with screws at the specified torque to avoid micro-vibrations that could affect track performance.

Frequently asked questions

What is the difference between the Extra-Hard version and other pod hardnesses?

The Extra-Hard version (red) offers the highest rigidity in the range, minimising flex under load. Softer versions absorb track irregularities better, but at the cost of some precision in transmission. For smooth circuits and club competition, the Extra-Hard is usually the preferred option.

What does the -0.5 mm offset mean?

The offset indicates the lateral displacement of the motor relative to the central position of the axle. A value of -0.5 mm moves the motor 0.5 mm inward, allowing fine-tuning of the pinion-crown engagement when the chassis geometry requires it.

Is it compatible with motors from other brands?

The information provided by Scaleauto indicates compatibility with Scaleauto cars. If you wish to use a motor from another brand, ensure that the dimensions of the motor box match the tolerances of this pod before installation.

Does the inline configuration improve performance compared to the sidewinder?

It depends on the circuit and regulations. The inline lowers the centre of gravity and favours stability in fast corners; the sidewinder typically offers a more direct response in acceleration. Many tuners test both configurations depending on the layout.

Can I combine this pod with any gear ratio?

In principle, yes, as long as the pinion and crown gear are compatible with the inline geometry and the -0.5 mm offset. Always adjust the engagement before running to avoid premature wear.

The Scaleauto SC-6527C InLine Slim RT3 motor mount is a precision inline motor pod for Scaleauto slot cars, featuring a -0.5 mm offset and Extra-Hard compound (red) for maximum stiffness and consistent power transfer. Ideal for club racing and competitive slot car preparation, this slim-profile pod keeps the motor's centre of gravity low, improving cornering stability and lap-time consistency.
