SideWinder motor mount

The motor pod that keeps your SideWinder perfectly aligned race after race

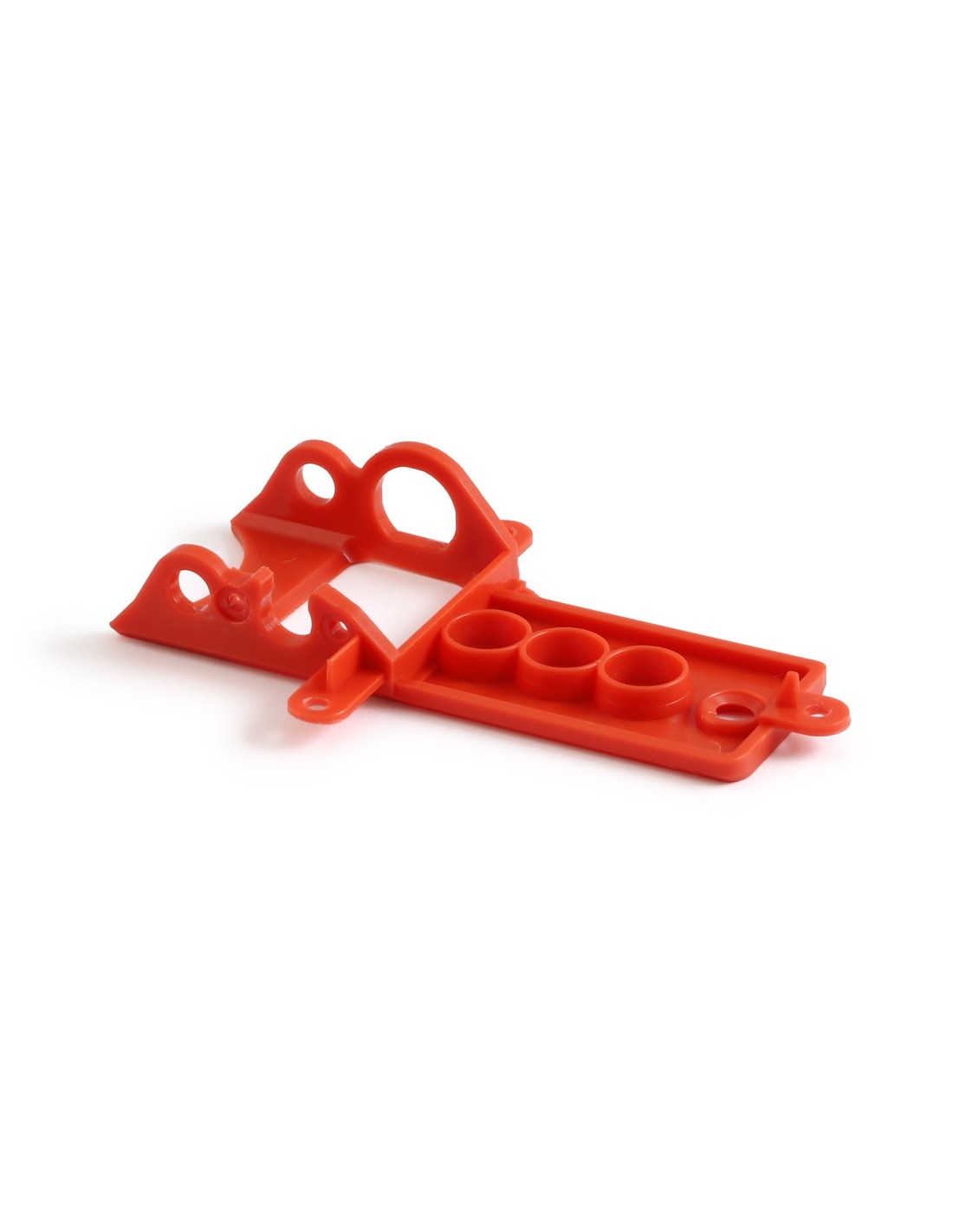

The NSR1270 is the specific motor pod for SideWinder configurations —motor positioned parallel to the rear axle— in the Classic and Abarth 500 chassis from NSR. Manufactured in the extra hard red version, it offers greater structural rigidity compared to the standard versions, resulting in a more stable transmission geometry and a more direct response on the track.

Function and performance

In a SideWinder setup, the motor pod is a critical component: any play or flex in it directly affects the mesh of the crown gear with the pinion, the torque transmitted, and ultimately, the consistency of lap times. The extra hard version from NSR minimizes that flex, maintaining a constant wheelbase even under the load of prolonged acceleration or high-speed corners.

Compatibility

• NSR Classic chassis
• NSR Abarth 500 chassis
• Motor configuration: SideWinder (motor parallel to the rear axle)

Assembly and preparation

The assembly follows the usual procedure for NSR chassis: it is recommended to check the lateral play of the motor-crown assembly before permanently securing the pod, ensuring that the crown meshes correctly with the pinion without rubbing or excessive play. Since this is the extra hard version, the material offers less deformation under tightening, so it is advisable not to over-tighten the screws to avoid compromising the plastic.

Once installed, it is good practice to run the assembly for a few minutes at moderate speed before the first competition session, allowing the mechanical group to settle properly.

Common mistakes

• Confusing hardness versions: NSR offers pods in different hardnesses (standard, extra hard…). Choosing the incorrect version can affect the dynamic behaviour of the chassis, especially on technical track layouts.
• Not checking crown play: Changing the pod without readjusting the crown-pinion play can lead to premature wear or loss of efficiency in the transmission.
• Interchanging pods between incompatible chassis: This pod is specific to the Classic and Abarth 500 chassis; it is not directly interchangeable with other NSR models without checking geometric compatibility.

Frequently asked questions

What is the difference between the extra hard pod and the standard one?

The extra hard version has greater rigidity, which reduces the flex of the motor-crown assembly during operation. This is particularly noticeable on fast tracks or in competitive conditions, where consistency in gear play makes a difference in lap times.

Is it compatible with all NSR chassis?

No. The NSR1270 is specifically designed for the NSR Classic and Abarth 500 chassis in SideWinder configuration. For other NSR chassis, it is advisable to consult the corresponding reference.

Can I use it in Inline or Anglewinder configuration?

No. This pod is designed exclusively for the SideWinder configuration, where the motor is mounted parallel to the rear axle. For Inline or Anglewinder, there are specific references from NSR.

What pinions and crowns is it compatible with?

The compatibility of pinions and crowns depends on the chassis and the desired gear ratio. NSR offers a wide range of pinions and crowns for its chassis; we recommend consulting the recommended combination based on the motor and the track where you will be competing.

Do I need special tools for assembly?

No special tools are required. A suitable screwdriver and a caliper to check the crown play are sufficient for correct assembly.

The NSR1270 is a SideWinder motor pod designed for NSR Classic and Abarth 500 chassis, available in the extra hard red version for maximum rigidity and consistent gear mesh. A key spare part for slot car racing enthusiasts looking to optimize their NSR SideWinder setup, ensuring precise motor alignment and reliable power transmission on any track layout.
